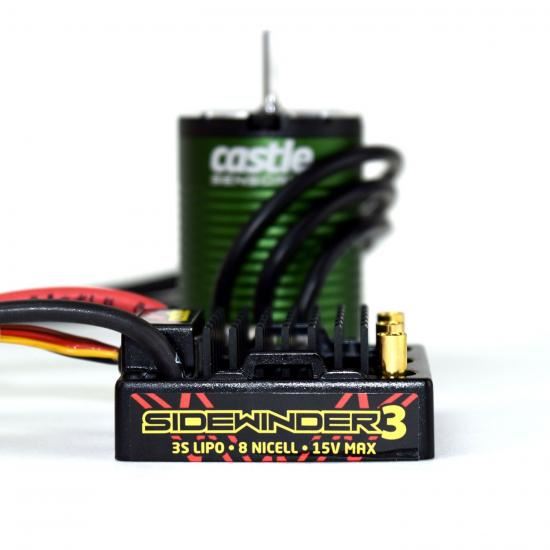

Castle Sv3 Waterproof 1:10Th 12V Esc 1406-5700 Sensored Combo (Cc010-0115-06)
Save £17.50
Couldn't load pickup availability
- Input voltage MAX: 3s LiPo
- ESC Size: Length: 1.93 in Width: 1.48 in Height: 0.79 in (1.96 oz)
- MOTOR Size: Length: 49.5mm Diameter: 36mm and M3 @ 25mm Mounting Holes
- Motor is rebuildable
- Recommended vehicle weight: Up to 5 lbs. with battery, ready-to-run
The Sidewinder 3, is the perfect waterproof (not intended for operation while completely submerged in liquid) combo for 1:10 scale off-road and on-road vehicles running up to 3S LiPo. It sports updated circuitry for faster response time and improved reliability. This combo now comes with our improved 4-pole, 12-slot sensored motor that boasts exceptional efficiency. While the sensored capabilities of the motor cannot be utilized with the Sidewinder 3 (motor will operate in sensorless mode), users will benefit as the sensored motor is rebuildable (parts available soon), and this design even allows modelers to replace damaged motor wires. The Sidewinder 3 is ready to run out of the box and is programmable via your transmitter. There are also many more programmable features that may be accessed using your Windows™ PC and a Castle Link USB adapter (sold separately) or a Field Link card (sold separately). Drivers can tune their favorite settings such as brake and throttle curves, throttle response, drag brake and many other parameters as well as download new firmware updates and feature upgrades as they become available. This combo includes a Sidewinder 3 ESC and 1406-5700Kv sensored motor. The 1406-5700kv motor is great for 2WD short course trucks on 2s LiPo (geared conservatively) and 1/10th 2WD Stadium trucks and buggies on 2s for general bashing and limited runs on 3s (temperatures will climb quickly on 3s). It also makes a great upgrade for 1/10th scale on-road cars for 2s and 3s use. This combo is not for use in 4WD short course trucks. This Sidewinder 3 Combo packs a lot power and will deliver exceptional response and performance right out of the box!
Designed for 1/10th
The Sidewinder 3 ESC is a great fit for 1/10th off-road, on-road, and rock crawlers running up to 3S LiPo*. It sports updated circuitry for faster response time and improved reliability. As always, the Sidewinder 3 offers industry-leading software functions and USB programming capability via Castle Link USB adapter (sold separately).
Items needed for Operation
Soldering 4mm female bullets for motor connection (sold separately).
Note: While the sensored capabilities of the motor cannot be utilized with the Sidewinder 3 (motor will operate in sensorless mode), users will benefit as the sensored motor is rebuildable (parts available soon), and this design even allows modelers to replace damaged motor wires.
Castle Creations SV3 Sidewinder Waterproof Combo With 5700KV Sensored Motor Specfications:
- BEC Voltage: 5V
- Bearings or Bushings: Bearings
- Connector Type: 4mm Bullet
- Drive Type: Brushless & Brushed Compatible
- Input Voltage: 6-8 cells NiMH, 2-3S LiPo
- Programmable: Yes
- RPM/Volt (Kv): 5700Kv
- Sensored: Yes
- Speed Control Type: Brushless - Sensorless
-
