Cen Racing 2024 M-Sport Ford Puma Rally1 1/8 Rtr Brushless

CEN RACING 2024 M-SPORT FORD PUMA RALLY1 1/8 RTR BRUSHLESS

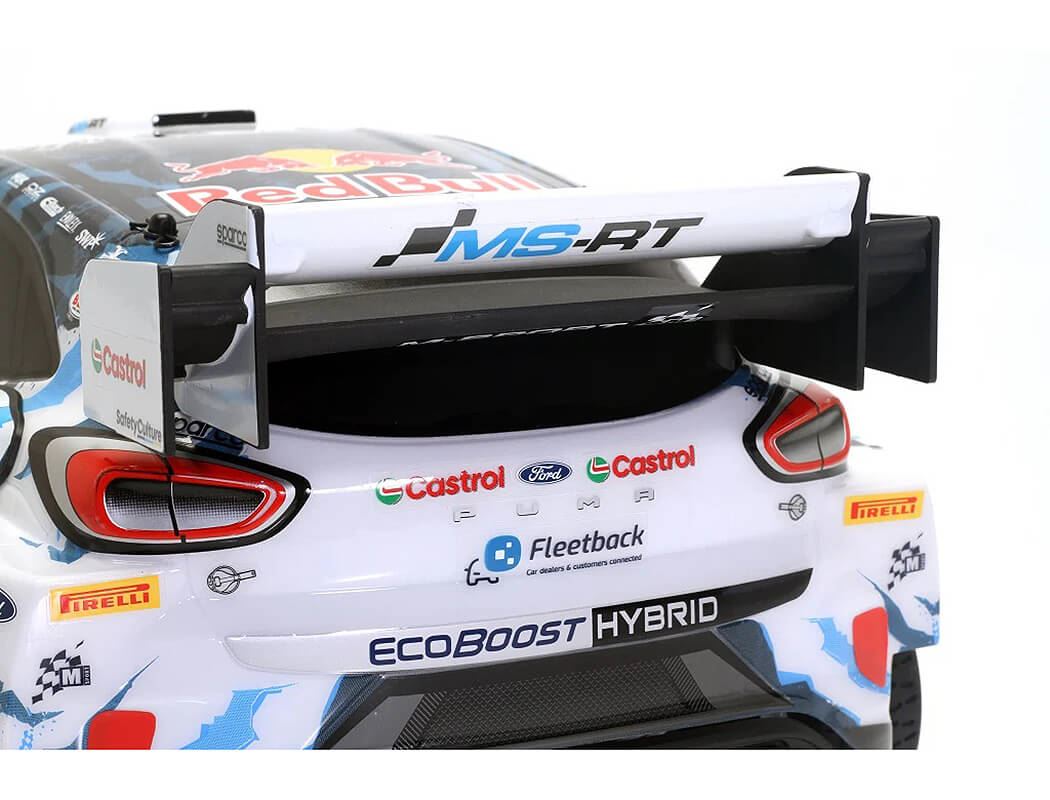

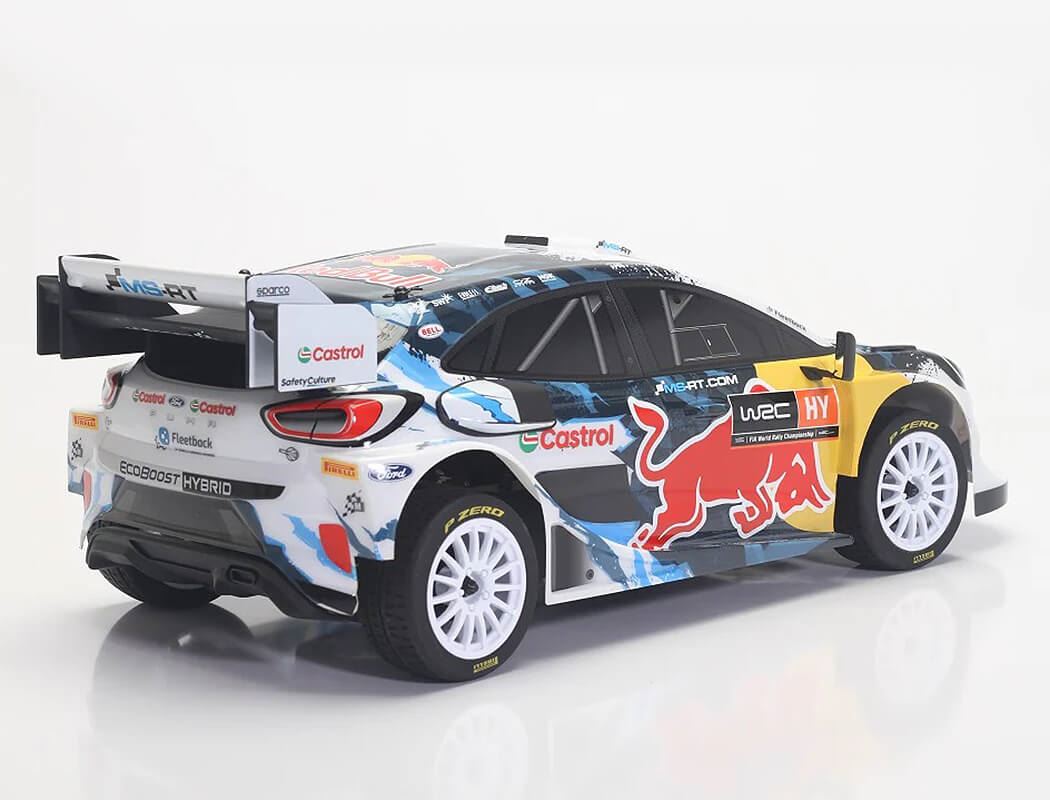

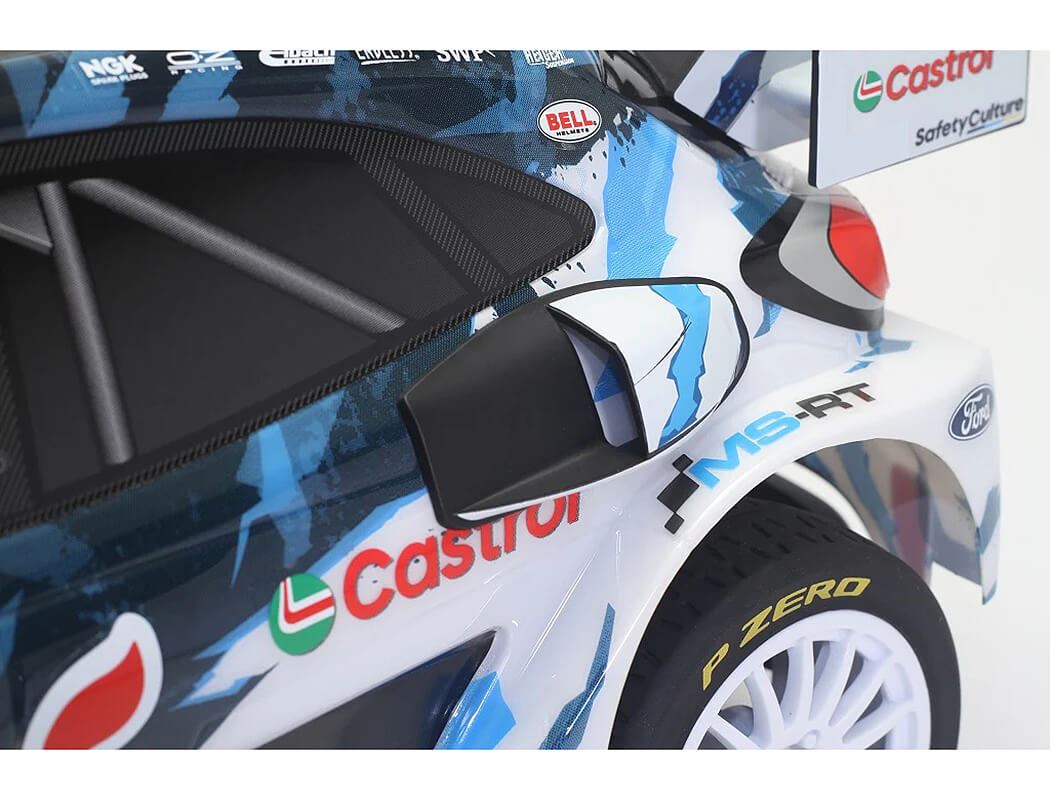

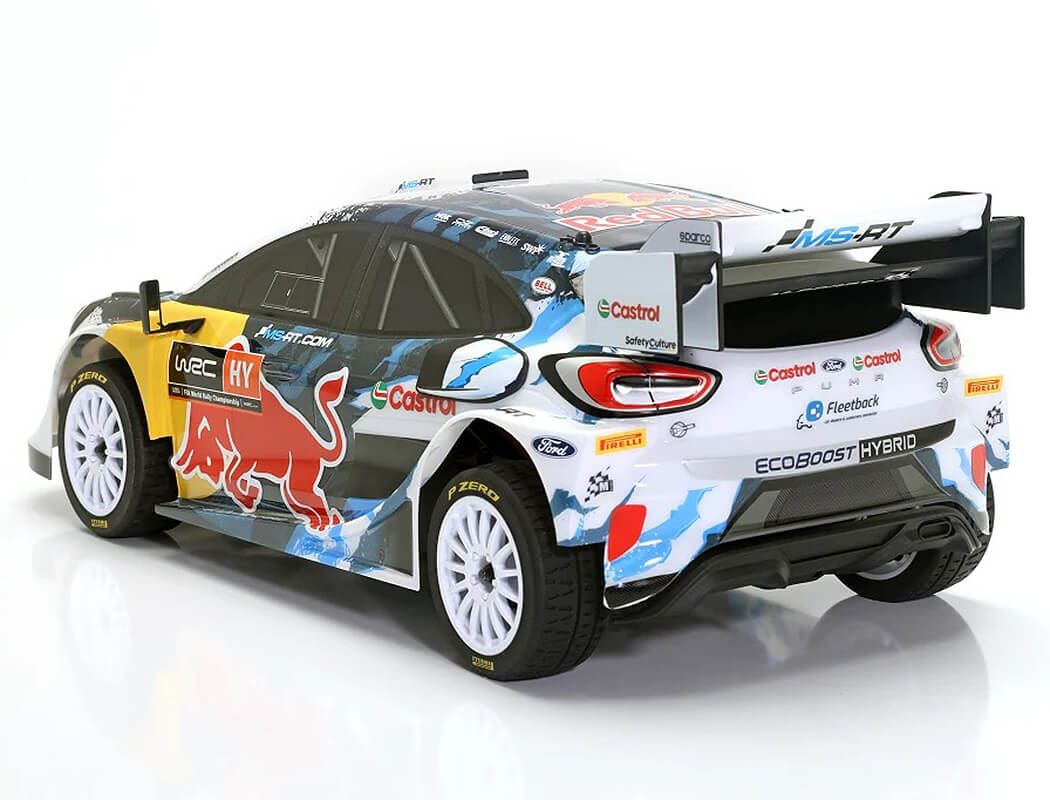

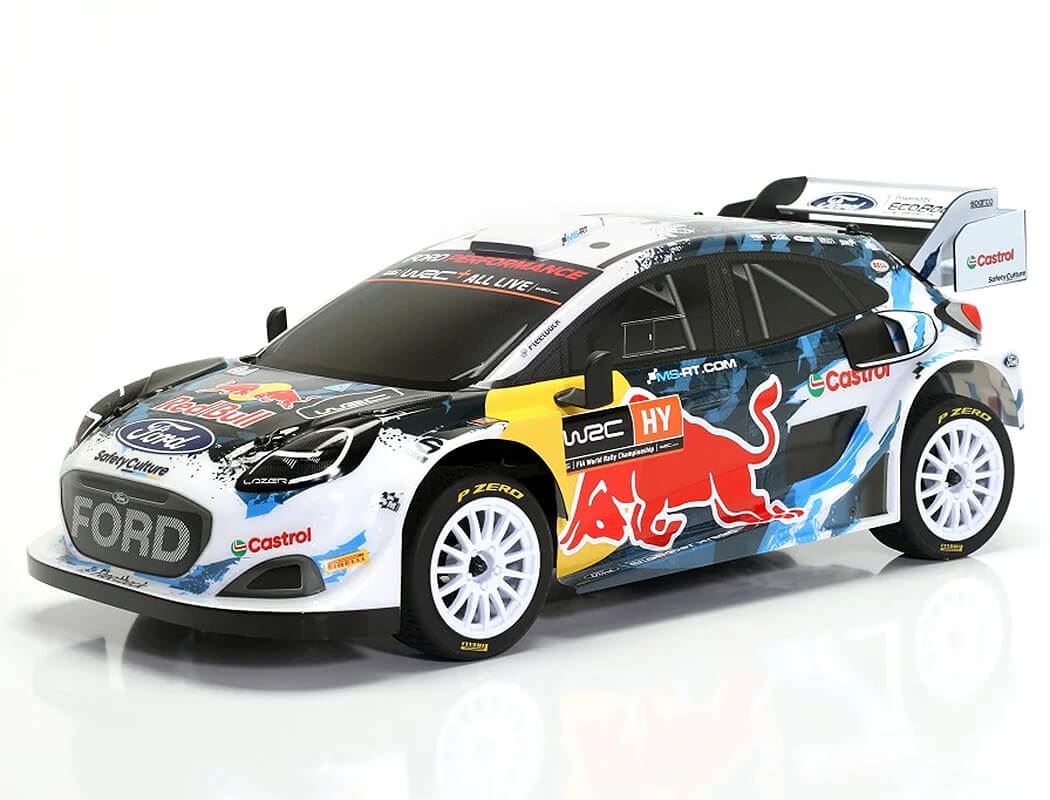

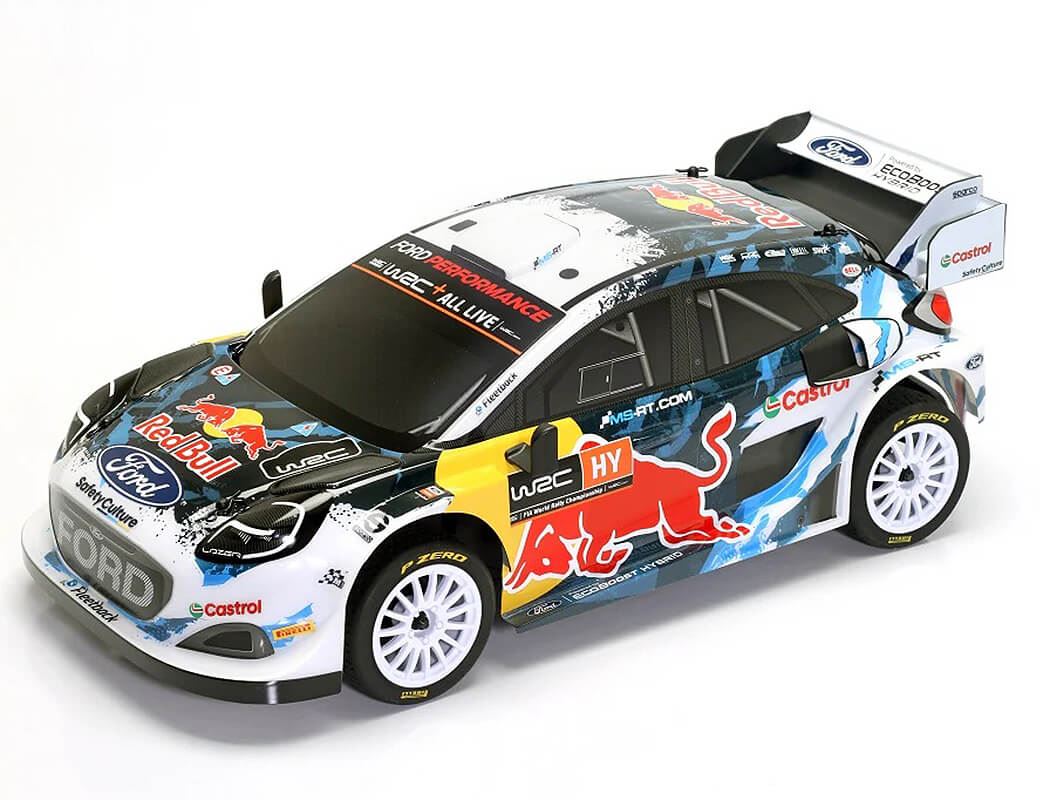

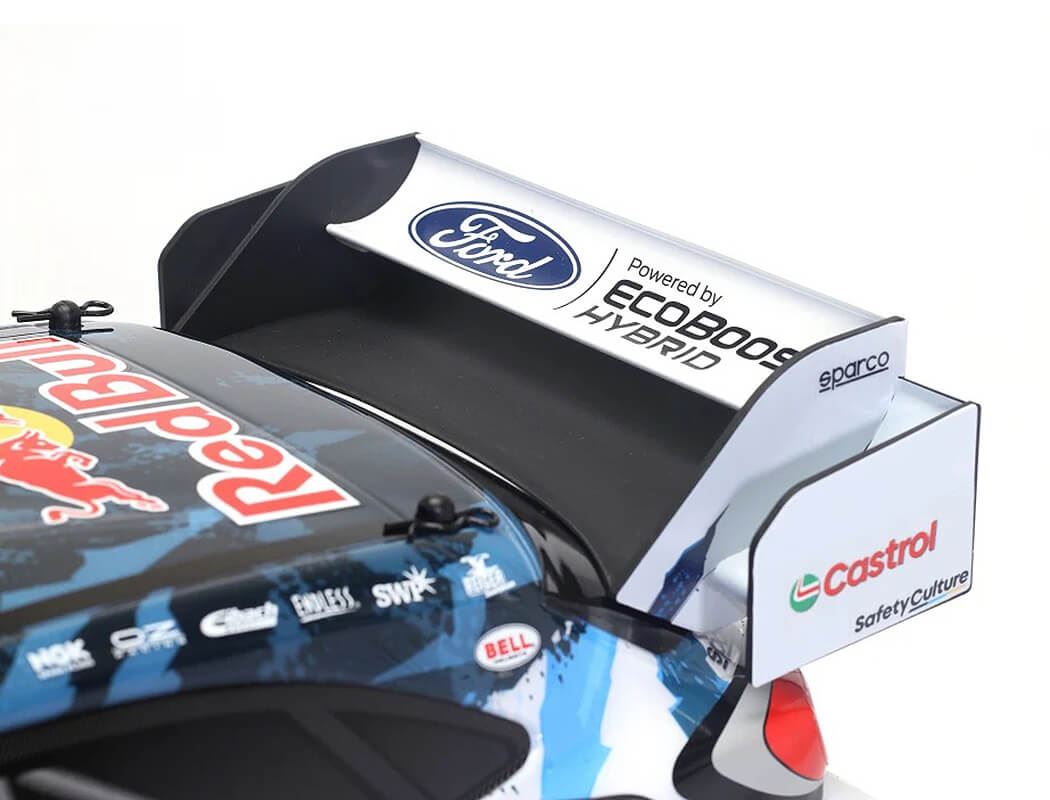

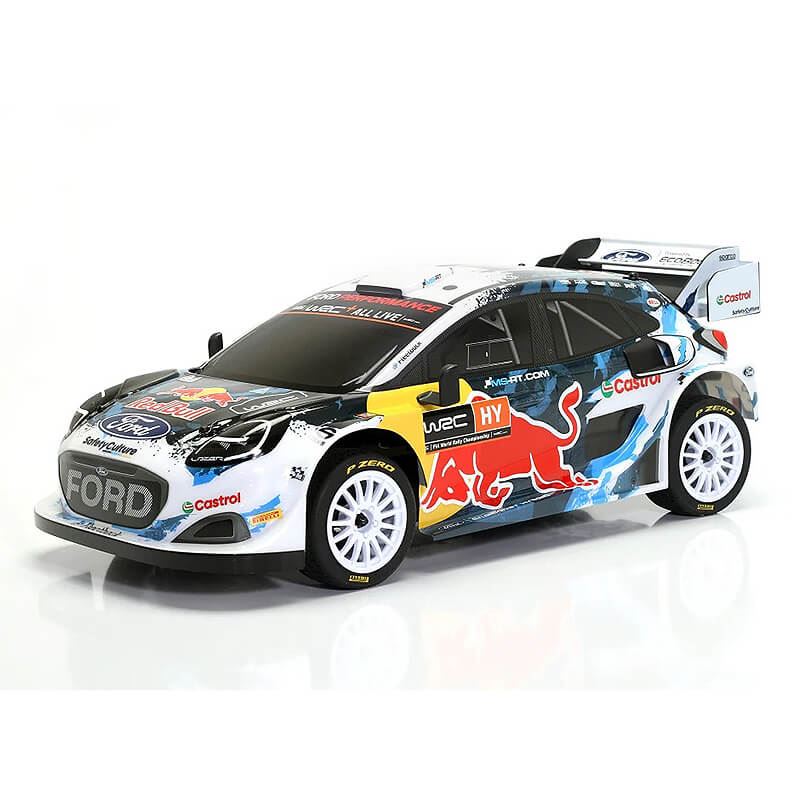

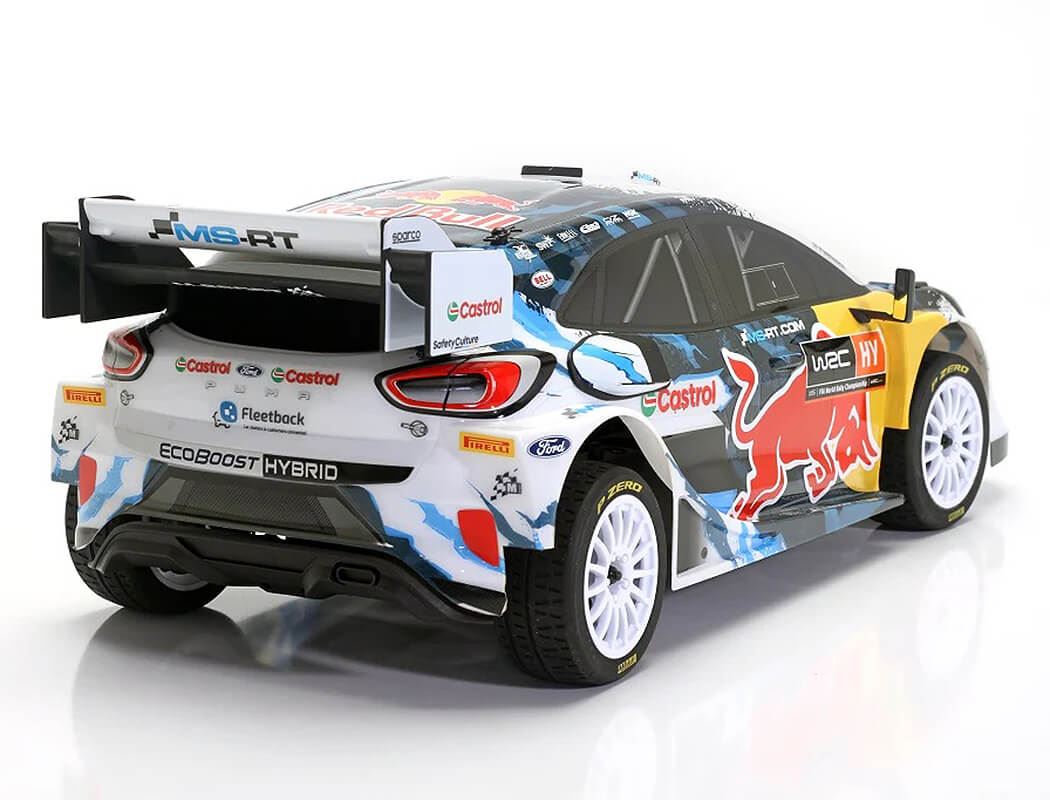

CEN Racing’s new officially licensed 2024 M-Sport Ford Puma Rally1 Brushless 1/8 RTR is sure to be popular with worldwide rally fans. Featuring a fully detailed and beautifully decaled bodyshell, injection moulded rear wing, mirrors, side intakes, rear chassis diffuser and Pirelli P-Zero styled wheels and tyres the M-Sport is ready for your next Special Stage.

Underneath, a new chassis design features next generation aerodynamic lower suspension arms and oil filled shock absorbers, mounted to 3mm front and rear aluminium shock towers. A 3mm aluminium chassis mounts a full time 4wd transmission with metal gears and 6-gear bevel differentials.

Hobbywing 100A 3S LiPo rated brushless speed control and Cen Racing 3658 2900kv brushless motor provide different levels of power to suit all surfaces, while steering is controlled by a 12kg metal geared Savox servo.

RC rally redefined with the Cen Racing M-Sport Ford Puma.

Features

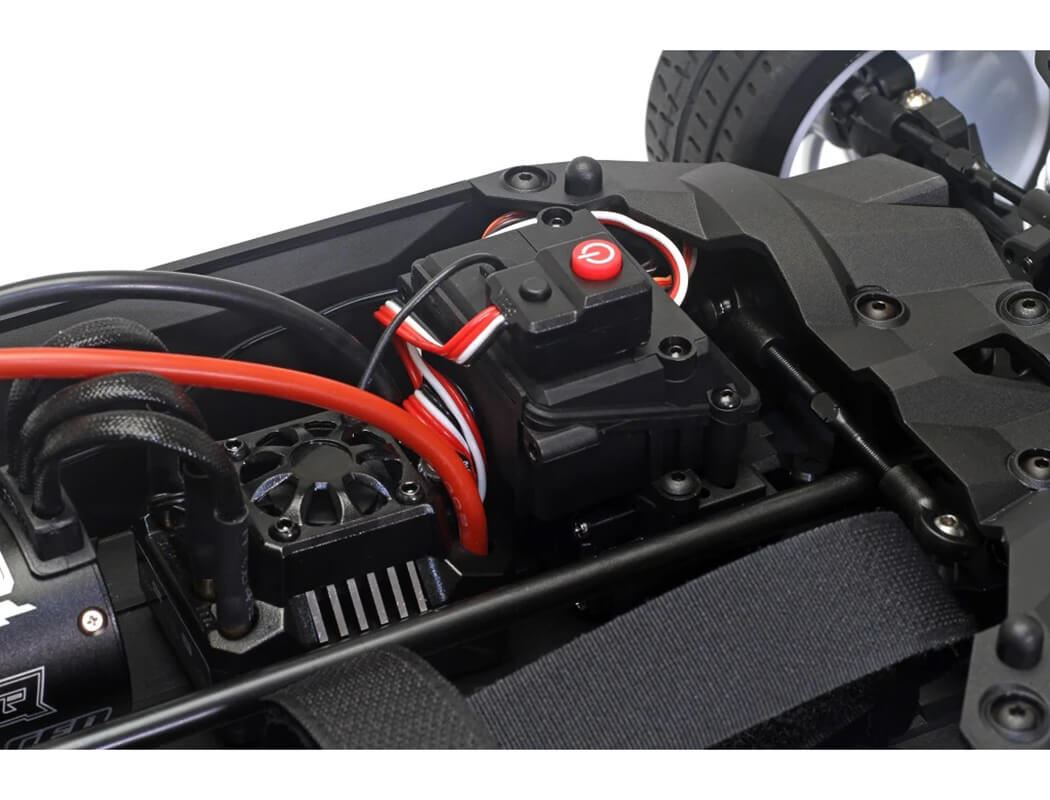

ESC

• 100A WP-MAX10-SCT-100A-3S RTR Sensor-less with T-Plug (Powered by HobbyWing).
• 2-3S Li-po (Lithium-polymer) or 6-9 Cell Ni-Mh Batteries.
• Water-Proof and Dust-Proof for All Weather.
• Super Internal Switch-Mode BEC with 6V / 7.4V for Usage with High Voltage Servo.
• Built-In Capacitor Module.
• Automatic Throttle Range Calibration.
• Low Voltage Cut-Off Protection for Li-Po and NiMH Battery.
• Over-Heat Protection and Throttle Signal Loss Protection.
• 5 Levels of acceleration/punch.
• 9 Levels of maximum brake force.

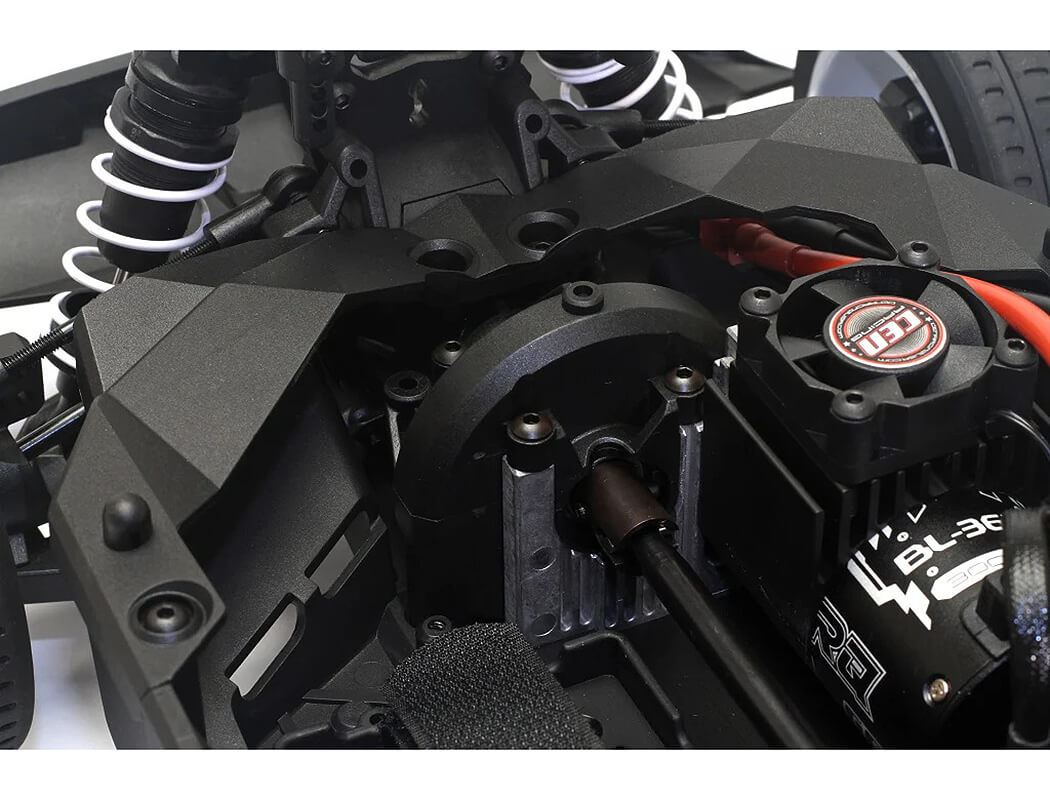

Motor

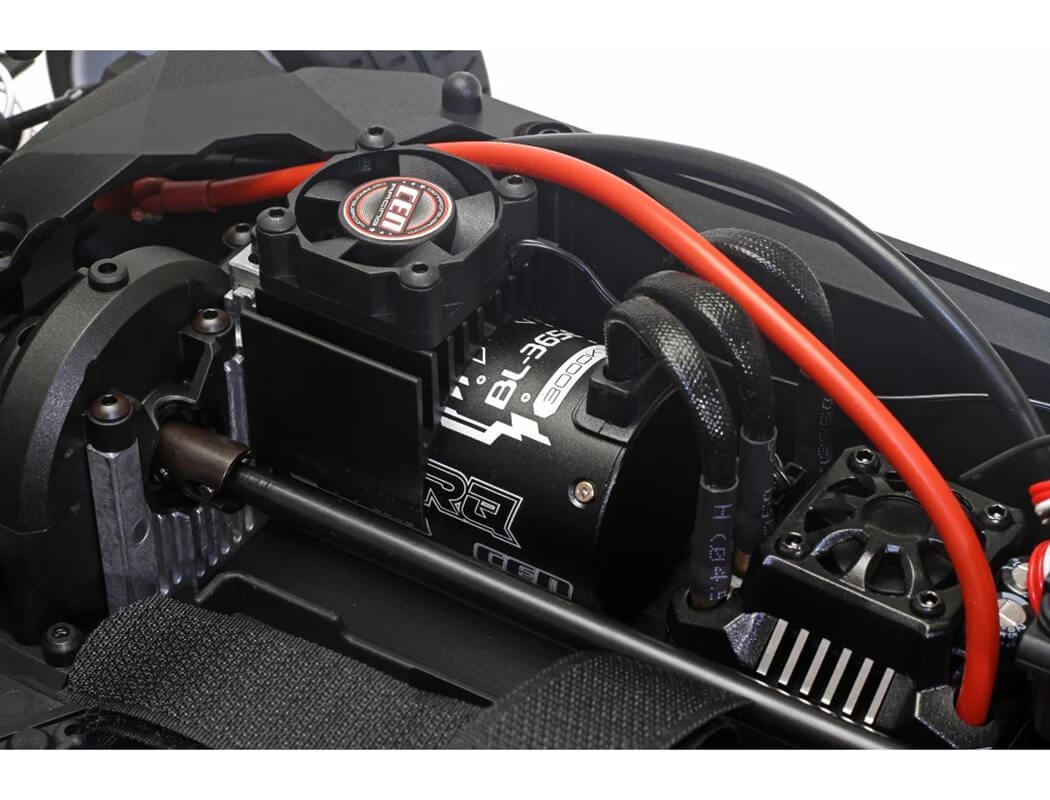

• CEN Racing High Performance 3658 3000KV Brushless Motor (Sensorless).

Servo

• 12Kg Metal Gear Servo (By Savox).
• 4.8V - 0.26 sec/60° 10.0 kg-cm.
• 6.0V - 0.23 sec/60° 12.0 kg-cm.
• With 25T Horn Gear Spline.

Radio System

• AMP-30 TX 3-Channel Transmitter.
• Frequencies: 2.4GHz.
• Digital Trimming.
• Steering Dual-Rate (ST D/R) Adjustment.
• End Point Adjustment (EPA).
• Build in Failsafe.
• Power Supply: 4 - AA Alkaline (Not Included).
• AMP30 RX 3-Channel Receiver.
• Frequency: 2.4GHz.
• Power Supply: DC 4.8 ~ 6.0V.
• Dimensions: 1.35” (L) x 0.72” (W) x 0.53” (H).

Body

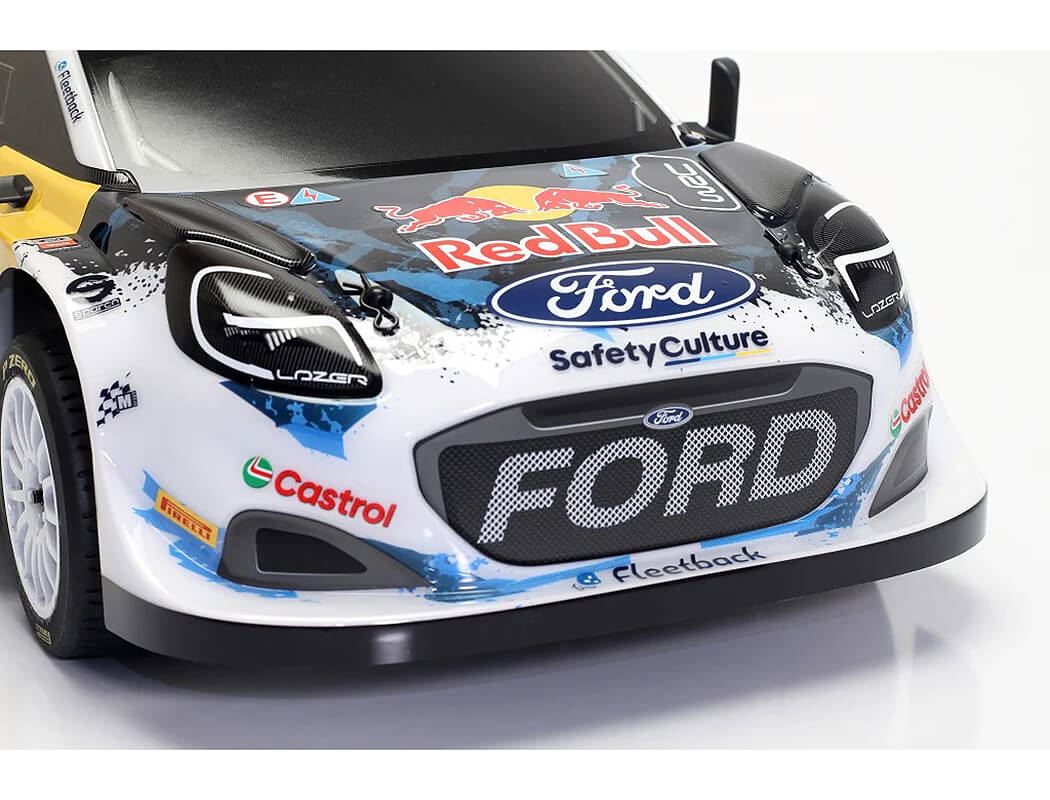

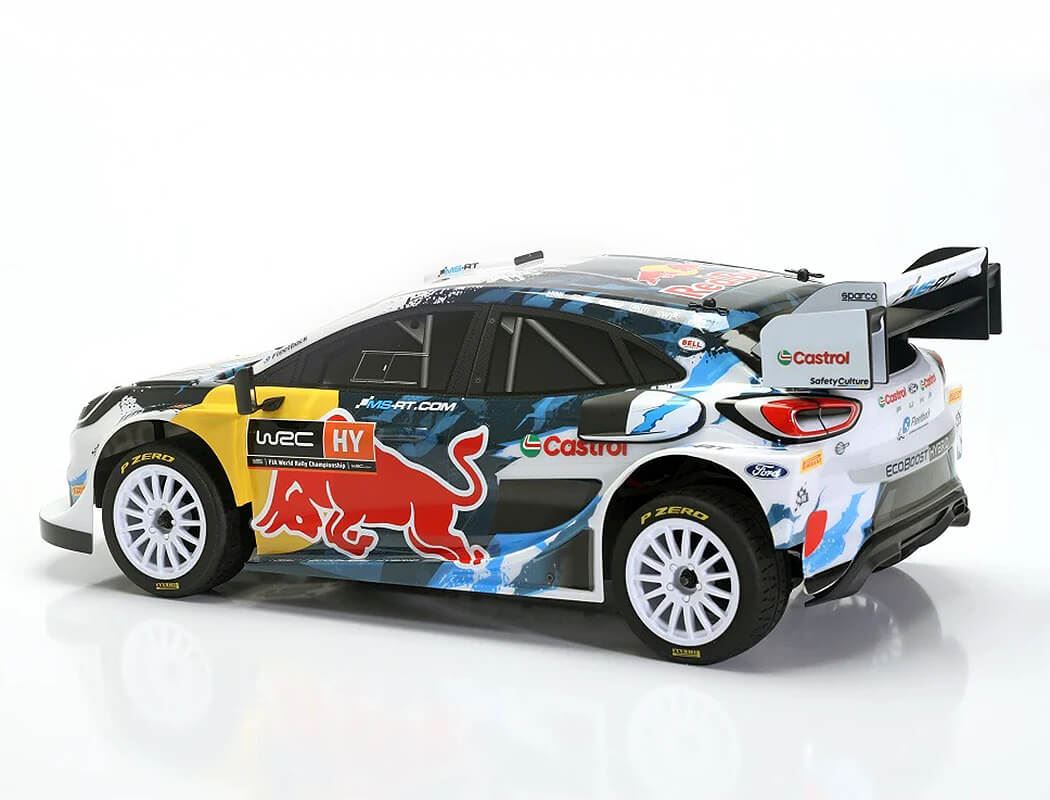

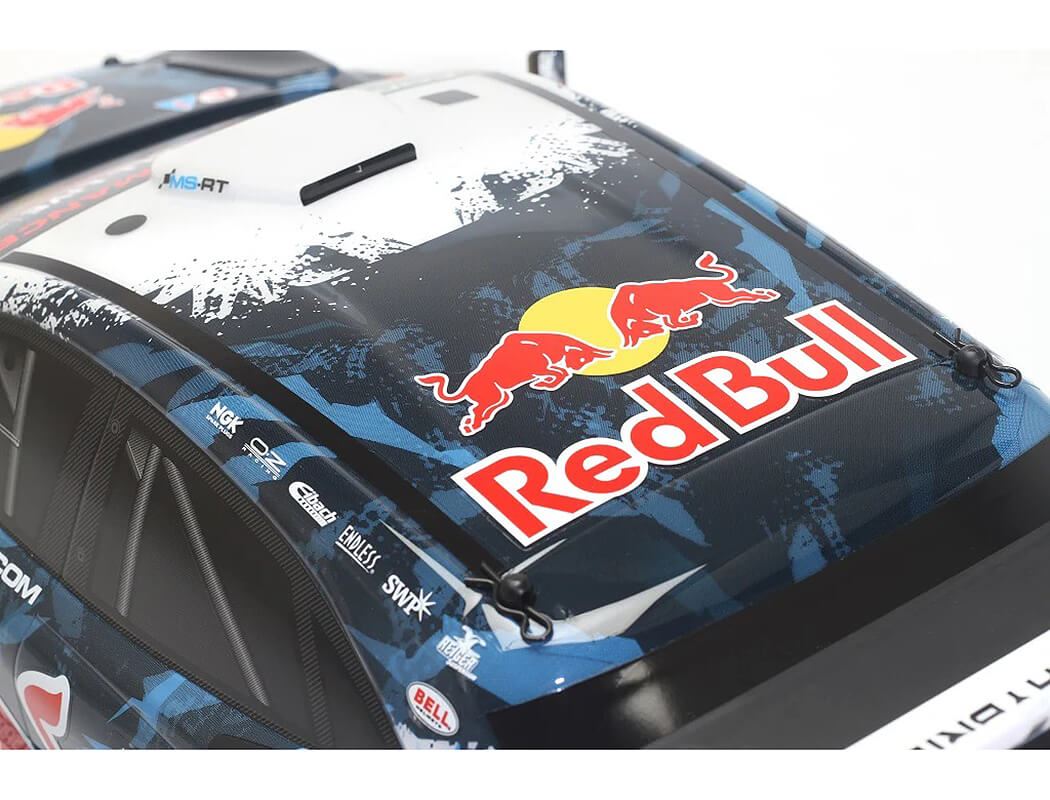

• Official Licensed 2024 M-Sport Ford Puma Rally 1 Edition

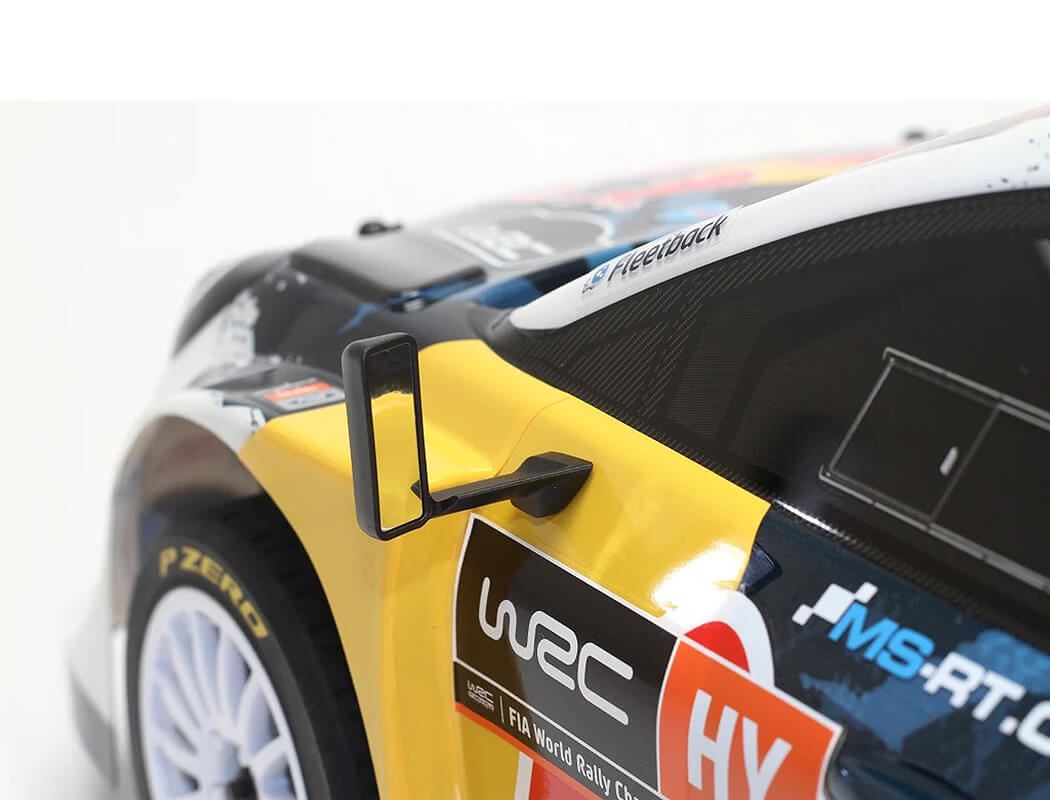

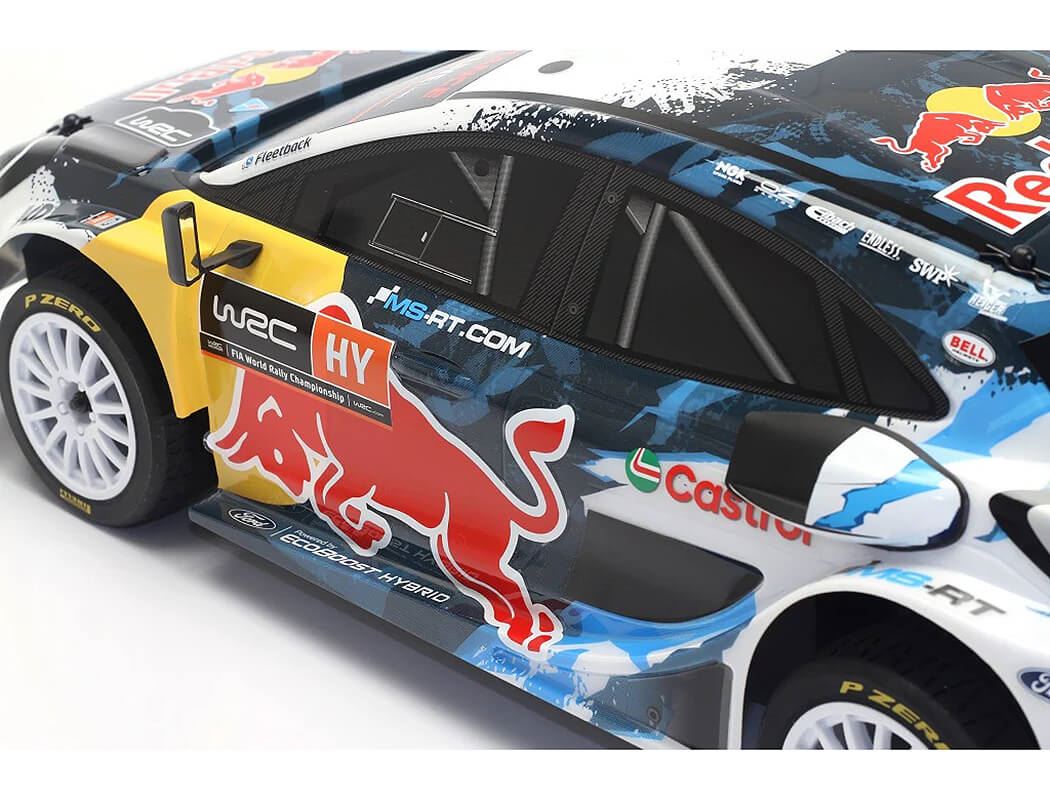

• Fully Detailed Injection-Molded Body Accessories Body Details
• Size: Length 20.08inches (510mm) / Width 9.45 inches (240mm)

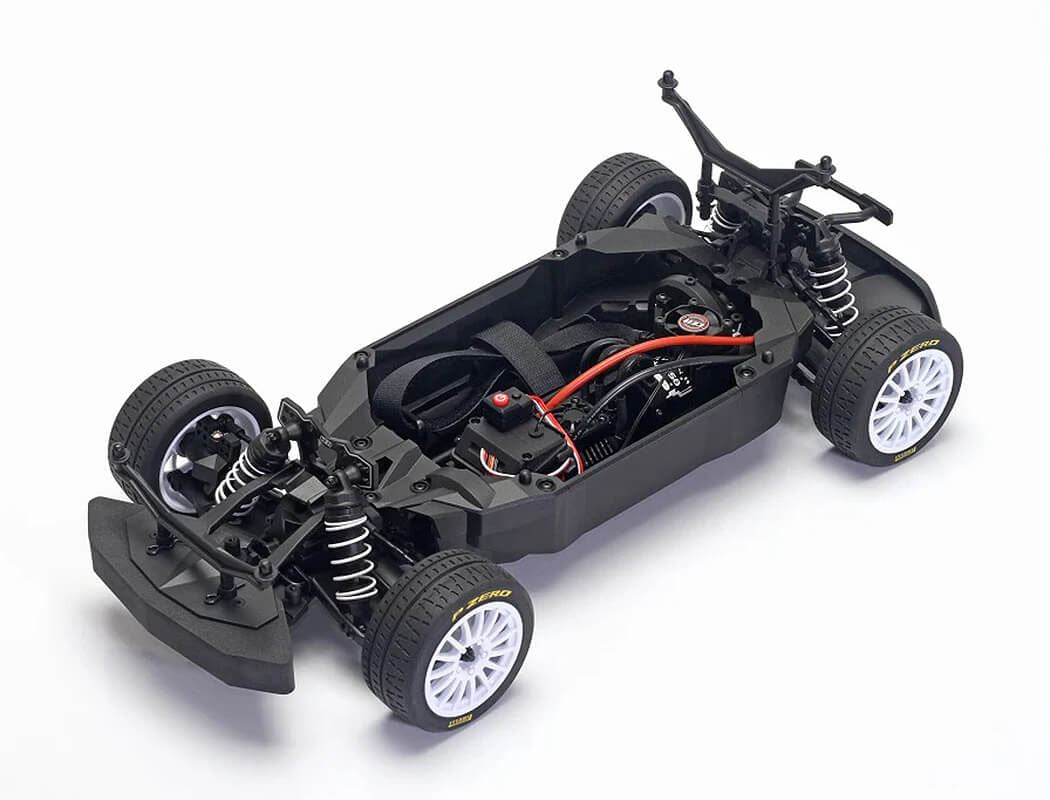

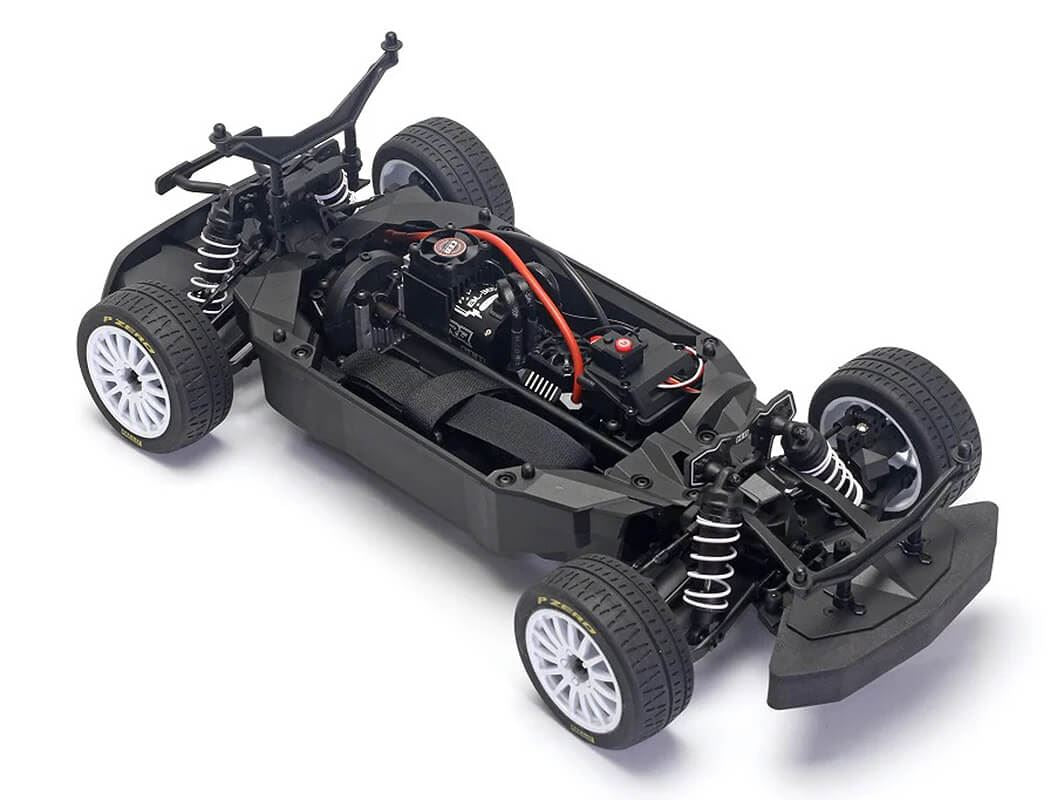

Chassis

• 3mm Aluminum Chassis

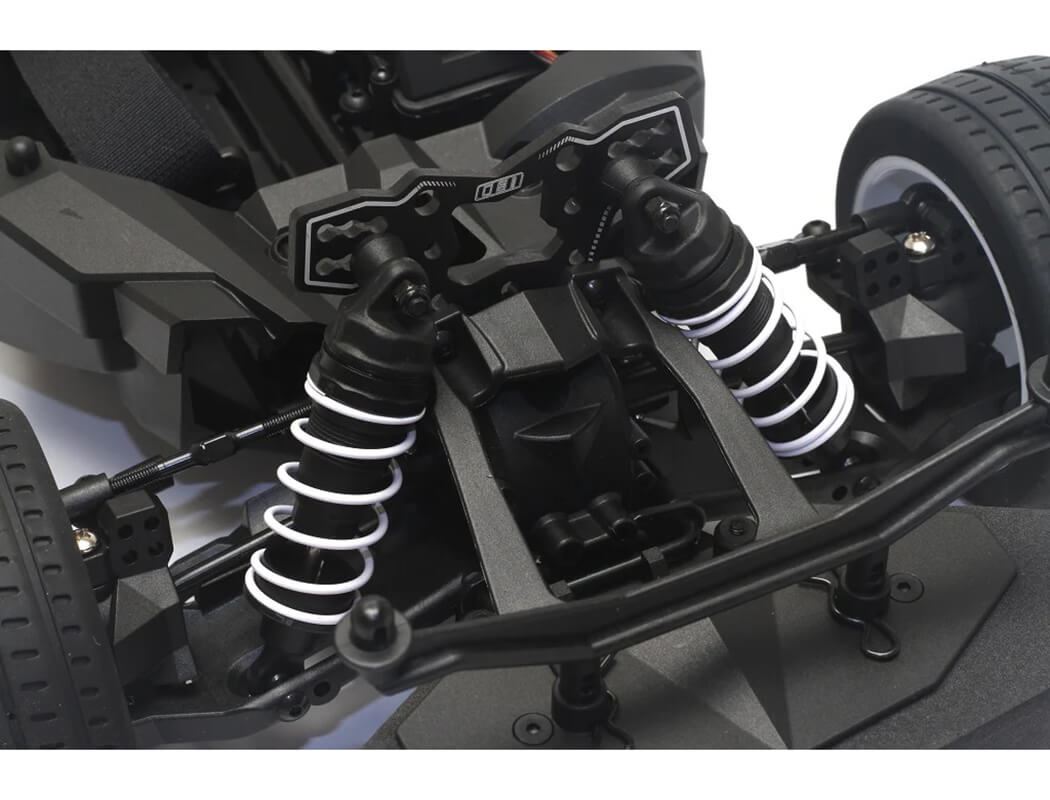

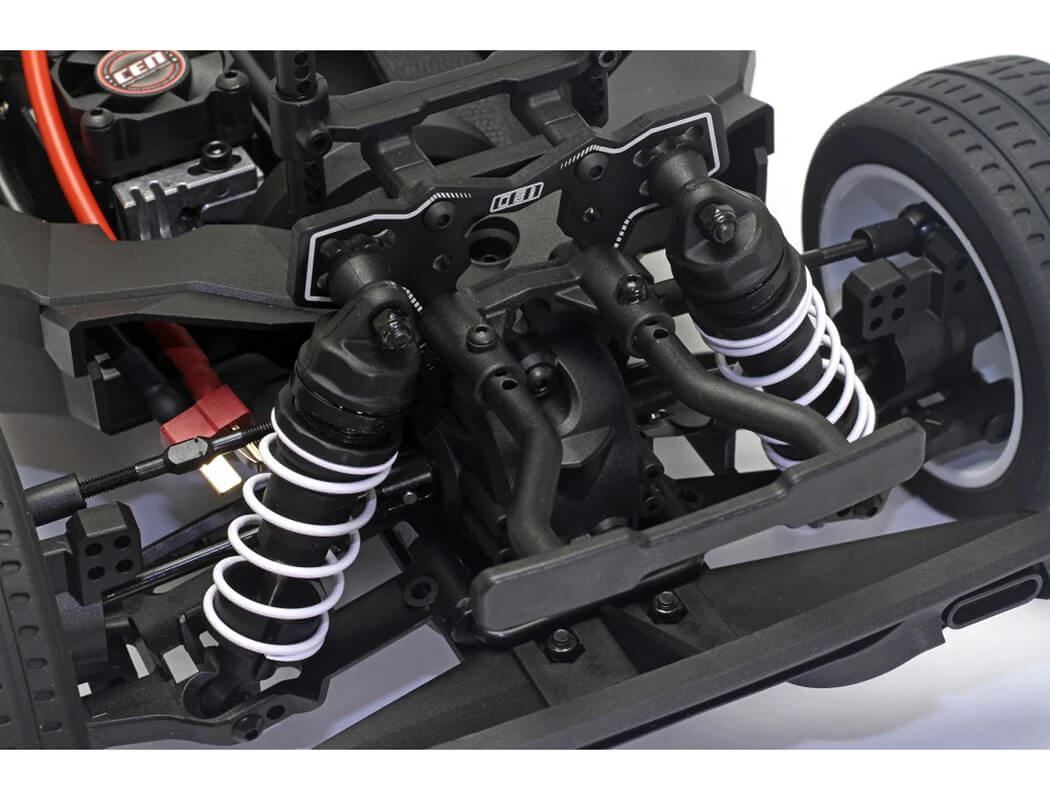

• Front and Rear 3mm Aluminum Shock Towers
• Aluminium Arm Brace
• Full Precision Ball Bearing Support
• Wider Body Mount Positions for Better Support

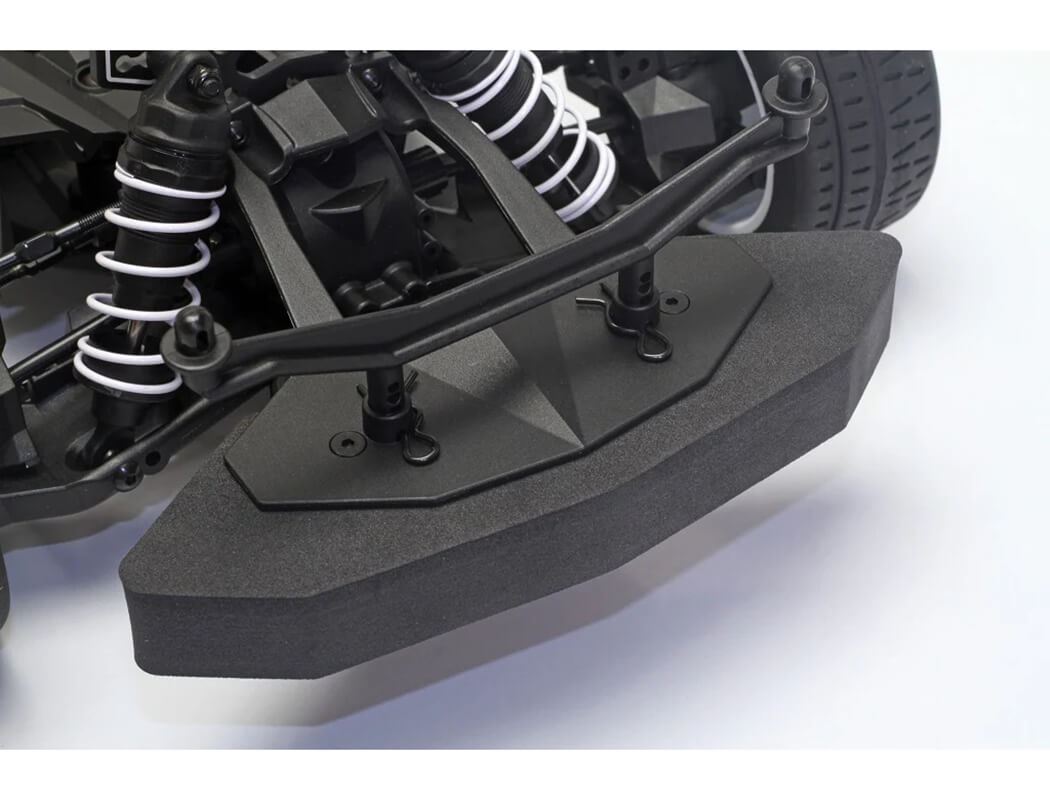

• Front Skid plate with Durable Foam Bumper

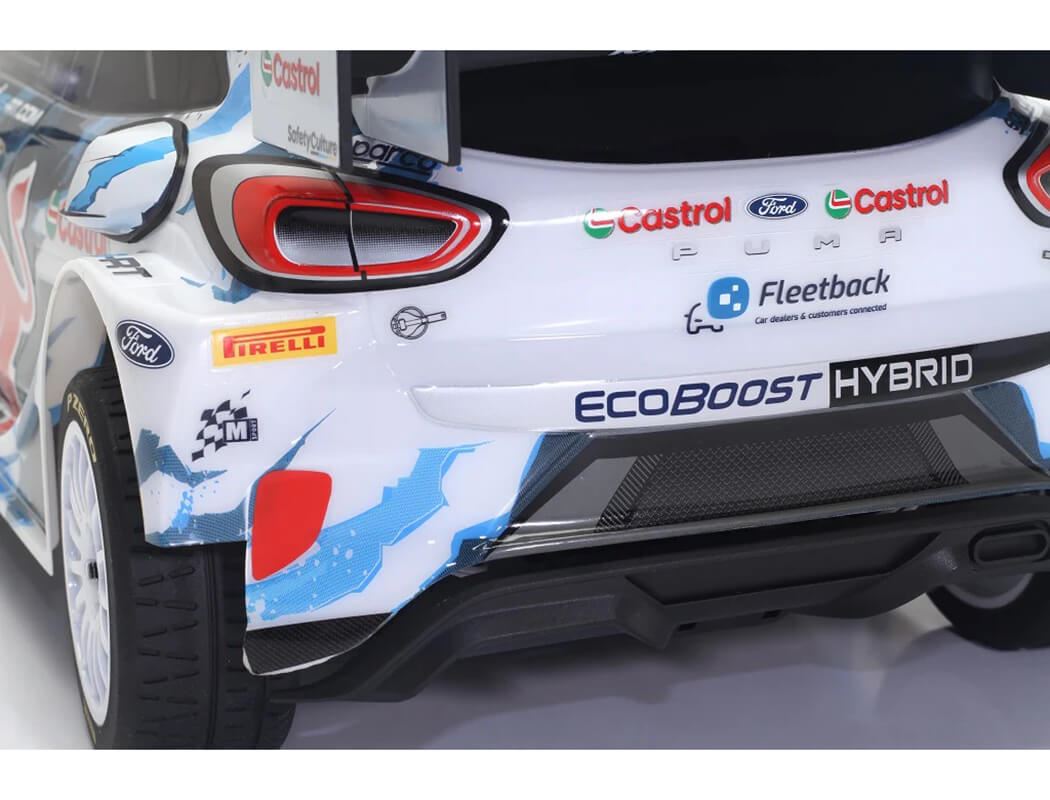

• Injection-Molded Rear Diffuser

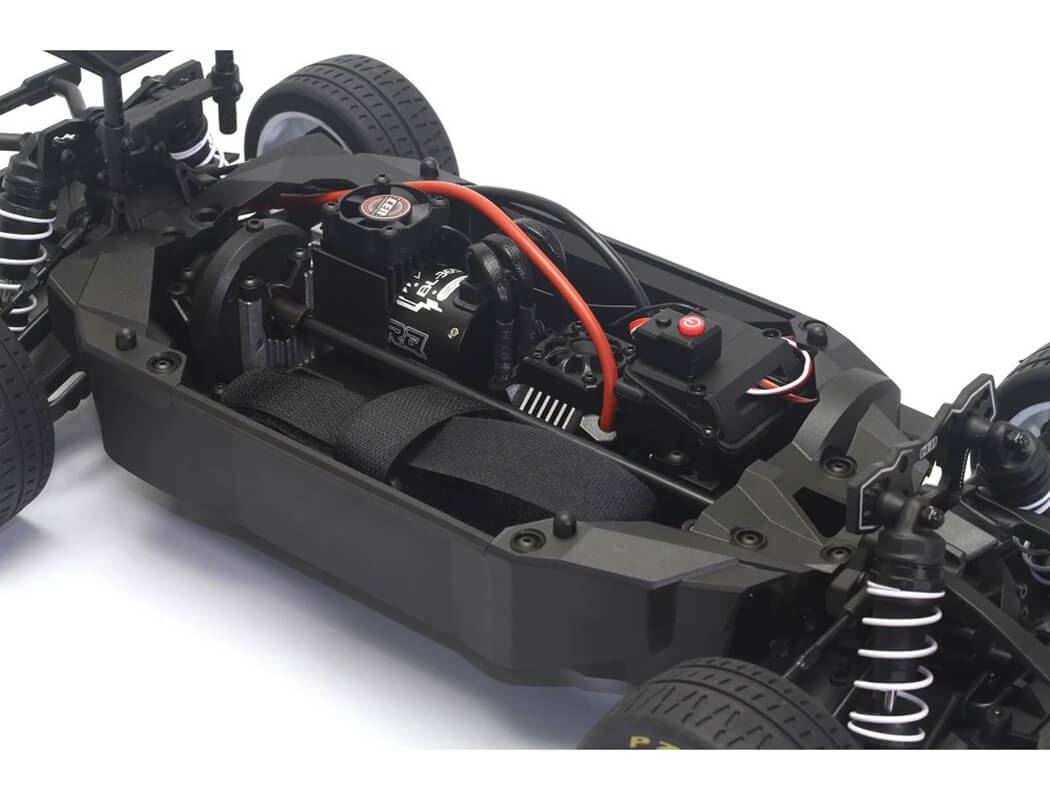

• Easy Access Battery Tray
• Battery Tray Size 142mm x 48mm

Suspension

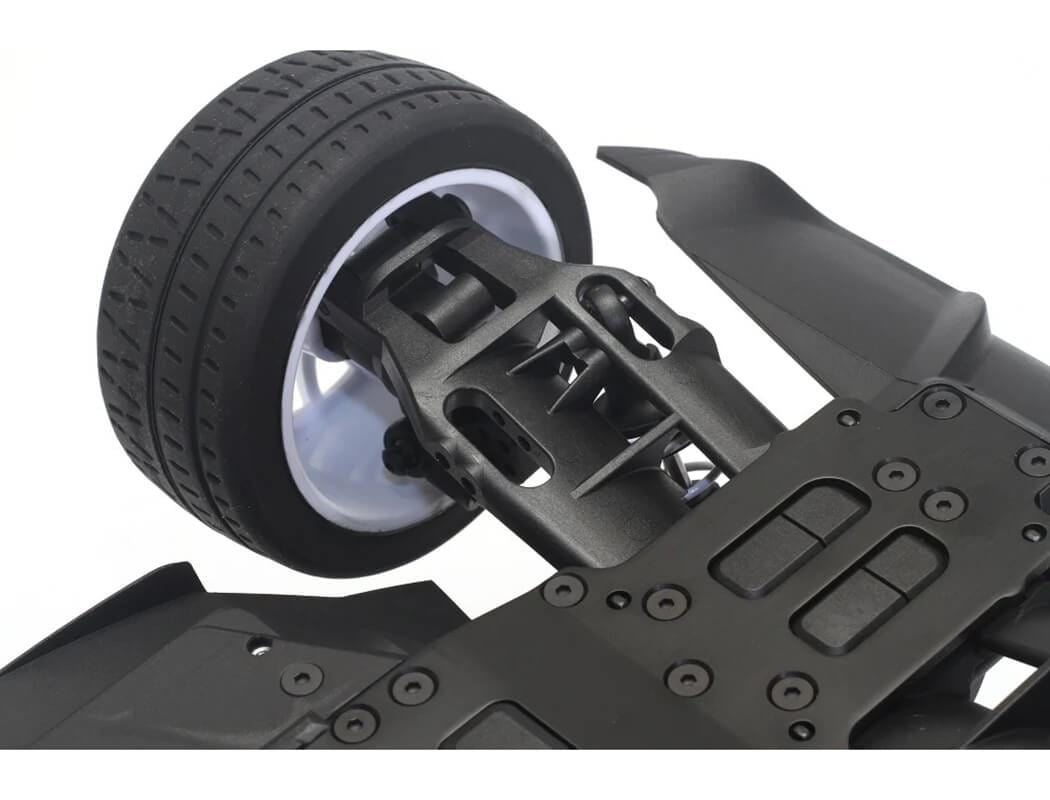

• Aerodynamic Lower Arm Suspension Design
• Big Bore Oil Filled Adjustable Coil Over Shocks
• 12mm Over Size Shock Body with 3mm Hardened Steel Polished Shaft
• Racing Spring
• Adjustable Turnbuckles
• Adjustable Wheelbase +/- 6mm

Gear Ratio

• Spur / Pinion 46/14T 3.29:1
• Ring & Pinion 40/17T 2.35:1

Drivetrain

• Full Time 4-Wheels Drive
• Center Shaft Drivetrain for more power transferred to the wheels
• Metal Transmission Gears
• Aluminium Adjustable Motor Mount
• Oil Filled Two Differential Drive System
• Center Direct Drive
• Hight Efficient Transmission System
• 6 Gear Bevel Gear Type Differential
• Front / Rear Harden Steel Dog Bone and outdrives

Wheel

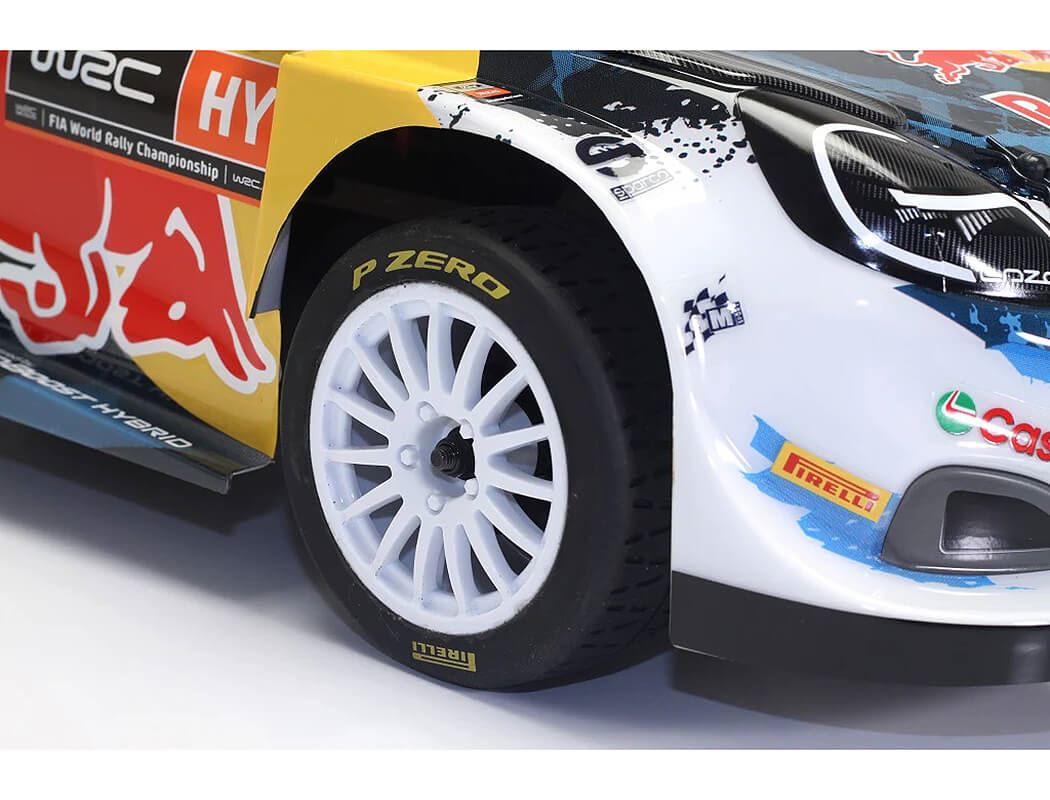

• High Impact & Light Weight WRC Racing Wheel 56 X 35.50 mm.

Tyres

• High Performance Racing Rubber Compound Tyres 56 x 80 x 35.50 mm.

Specifications

Chassis Length: 18.11 inches (460mm)
Chassis Width: 9.06 inches (230mm)
Wheelbase: 11.80 inches (300mm)
Ground Clearance: 0.98 inches (25mm)
Weight: 5.51 lb. 2.5kg

Required To Complete

• Battery and charger are not included (Recommend 2S - 3S Lipo Battery).
• Transmitter.
• Receiver.
