Electrifly Micropanel Plus Pro Series
Couldn't load pickup availability

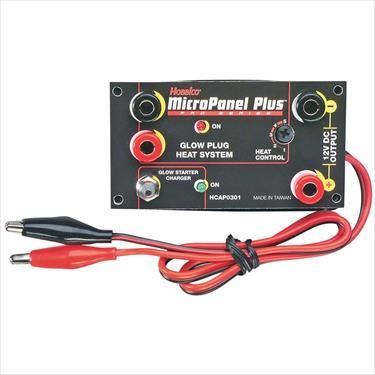

This is the Hobbico Pro Series MicroPanel Plus Power Panel.
This panel mounts onto a Field Box or stands alone, and is used to run the
accessories required to start a model glow engine.
FEATURES
The "plus" that sets this panel apart from the others is an on-board
300-400mA charger for single NiCd or NiMH glow starter cells. It
includes a Charging lug for the glow starter to clip onto and a
Green Charge indicator LED.
A glow plug heat system is also included for using glow plug clips
with banana plugs. It includes a Red LED Charging indicator light,
and 1 through 5 adjustable heat control setting with a Phillips
head screwdriver (screwdriver not included).
12V DC output Banana Plug Jacks provide a power source for hand-held
electric engine starters.
Black and Red input leads are 18" with Alligator Clips for connecting
directly to a 12V Field Box Battery (Battery not included).
Built-in reverse polarity protection
One mounting hole on each corner and the small size makes this panel
easy to mount onto nearly any Field Box.
A Black plastic rear enclosure is included for stand-alone use when
not mounted into a Field Box, to prevent electrical damage.
Two year warranty
INCLUDES
One Hobbico Pro Series MicroPanel Plus Power Panel with 18" input
lead with alligator clips
One Black plastic rear enclosure for stand-alone use
One Instructions Sheet
REQUIREMENTS
Mounting the panel onto a Field Box and connecting the input leads
onto the Field Box Battery.
12V mini Field Box Battery HCAP0855
12V mini Field Box Battery Charger HCAP0200
SPECIFICATIONS
Voltage Input: 11V - 14.3V DC
Glow Starter Charger Output: 300 - 400mA
Glow Plug Clip Output: 1.2V
Weight: 2.3oz (65g)
Length: 3.3" (84mm)
Width: 1.8" (46mm)
Height: .75" (19mm)
-
