Etronix  |  ET0128

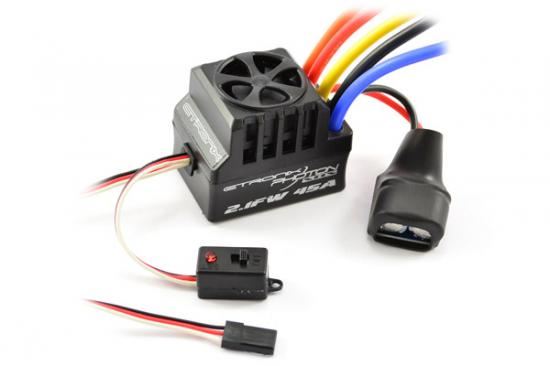

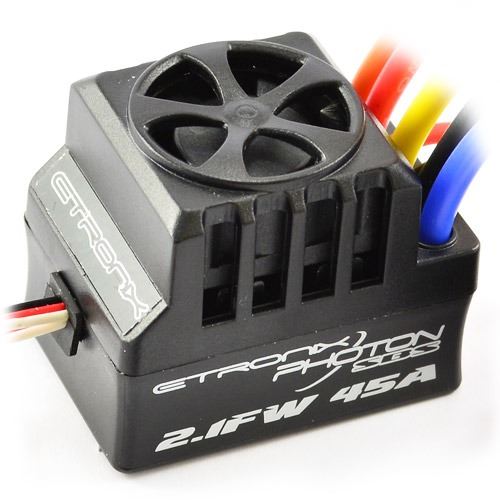

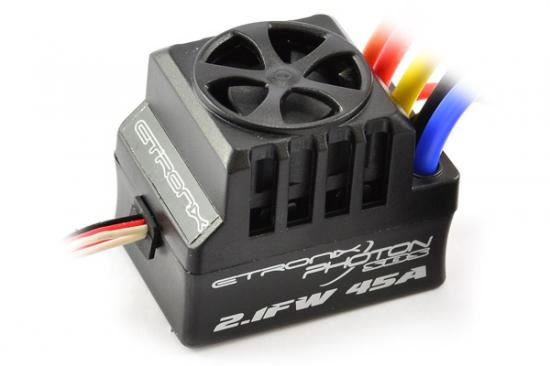

Etronix Photon 2.1Fw 45Amp Full Waterproof Brushless Esc


£39.59
RRP: £43.99
Save £4.40
Notify me when available
With systems available ranging from 45A through to 120A there is something within the Photon range for every 1/10th application.

With the additional programmable set up card (ET0107) the user can finely tune ten different parameters within the ESC to suit their particular needs. (available separately)

*Please note power wire and motor wires require soldering

45A Specifications :-
2-3S Lipo
5-10S NiMH/NiCd
2A 6V BEC Output
4 Pole sensorless bushless motor
45A Constant current
260A Burst Current

60A Specification :-
2-4S Lipo
5-12S NiMH/NiCd
3A 6V BEC Output
4 Pole sensorless bushless motor
60A Constant current
380A Burst Current

80A Specification :-
2-4S Lipo
5-12S NiMH/NiCd
3A 6V BEC Output
4 Pole sensorless bushless motor
80A Constant current
570A Burst Current

120A Specification :-
2-4S Lipo
5-12S NiMH/NiCd
3A 6V BEC Output
4 Pole sensorless bushless motor
120A Constant current
760A Burst Current

Power Rating: Up to 45 Amps
Waterproofing: Waterproof
Battery Connector Type: No Connector
Battery Compatibility: LiPo/NiMh
ESC Type: For Brushless Motors
Motor Connector Type: No Connector
Max NiMh Volt Rating: 12v / 10 cell
Motor Compatibility Type: Sensorless
Max LiPo Volt Rating: 11.1v / 3s
