Etronix  |  ET1284-29

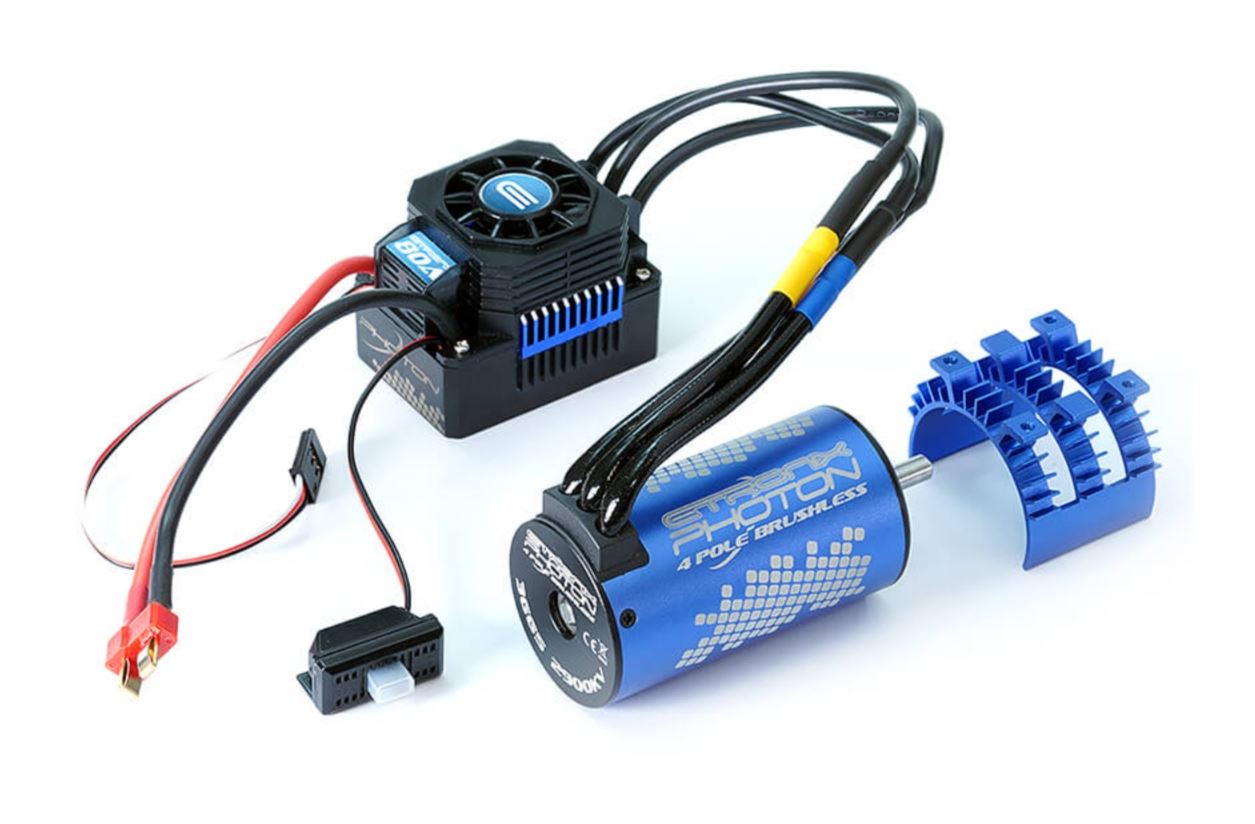

Etronix Photon 80A Brushless Esc & 2900Kv 3665 Motor Combo


£79.19
RRP: £87.99
Save £8.80
Home Delivery Available to order

        Allow 1-2 day(s) for order dispatch



With systems available ranging from 45A through to 120A there is something within the Photon range for every 1/10th application.

With the optional programmable set up card (ET0449) the user can finely tune different parameters within the ESC to suit their particular needs.

ESC FEATURES

  • Waterproof (without fan installed)
  • 2-3S Lipo
  • 6-9S NiMH/NiCd
  • 3A 6.1V BEC Output
  • Sensorless brushless motor
  • 2S 3670 size or smaller 3000kV Motor limit
  • 3S 3670 size or smaller 2500kV Motor limit
  • 80A Constant current
  • 480A Burst Current

ESC SPECIFICATIONS

  • Dimensions :- 51.5x38.5x38.5mm (without fan)
  • Weight :- 84g

MOTOR SPECIFICATIONS

  • KV Rating: 2900KV
  • Size: 3665
  • Max RPM: 50000
  • Max voltage: 14.8v
  • Max amps 95A
  • Rotor poles: 4
  • Diameter: 35.5mm
  • Length: 64.5mm
  • Shaft length: 17mm
  • Weight: 250g
