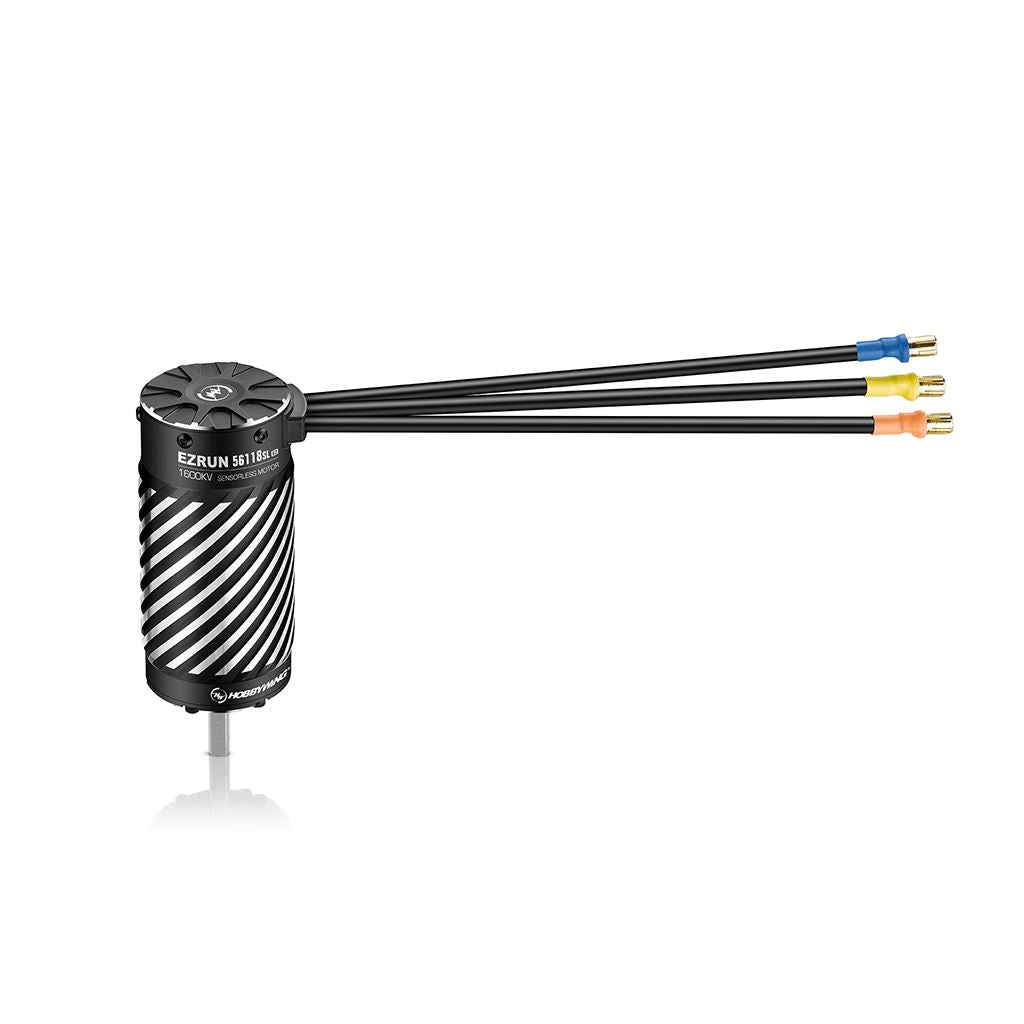

Ezrun 56118Sl 1600Kv Black G2
Save £18
Couldn't load pickup availability
The motor delivers outstanding power and performance, making it an excellent choice for high-speed 1/7th and 1/8th scale RC vehicles.
High Speed Design
The motor rotor has superior anti-explosion performance and supports a maximum speed of up to 78,000 RPM, which can meet the high rotational speed requirements of high-speed RC vehicles.
Optimized Pairing with EzRun MAX5 HV Plus G2 ESC
The motor is engineered for seamless compatibility with the EzRun MAX5 HV Plus G2 ESC, enabling higher speeds and greater power output for maximum performance.
Modular Construction for Easy Maintenance
Featuring a modular and detachable design, the motor is easy to clean and maintain, significantly extending its operational lifespan while ensuring consistent performance.
Dual Specifications to Suit Various Applications
The motor provides two options: 5690-2400KV and 56118-1600KV.
High-Quality Materials for Durability
Constructed using premium materials, the motor offers exceptional reliability and performance:
·CNC-machined Aluminum Housing for High Strength.
·Top-tier Bearings and Ultra-thin Silicon Steel Laminations.
·High-temperature-Resistant Oxygen-free Copper Wires.
·Carbon Fiber-wrapped Explosion-proof Rotor.
·High-toughness Alloy Output Shaft.
Innovative and Stylish Design
The motor's innovative spiral groove heat sink design not only enhances thermal performance but also provides a striking, modern aesthetic.
Specifications
Type
Scale - 1/7th, 1/8th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Pole Count - 4
Relevant Parameters
KV Rating - 1600KV
LiPo Cells - 6-12S
No-load Current(A) - 16A
Size & Weight
O.D.(mm) - 56
Length (mm) - 118
Shaft Diameter (mm) - 8
Weight (g) - 1270g
Front Bearing - D22*D8*T7
Rear Bearing - D19*D8*T6
ESC - EZRUN MAX5 HV PLUS G2
Applications - 1/8th, 1/7th and other model cars for extreme speed applications
-
Brand
-
Part Number
-
EAN
