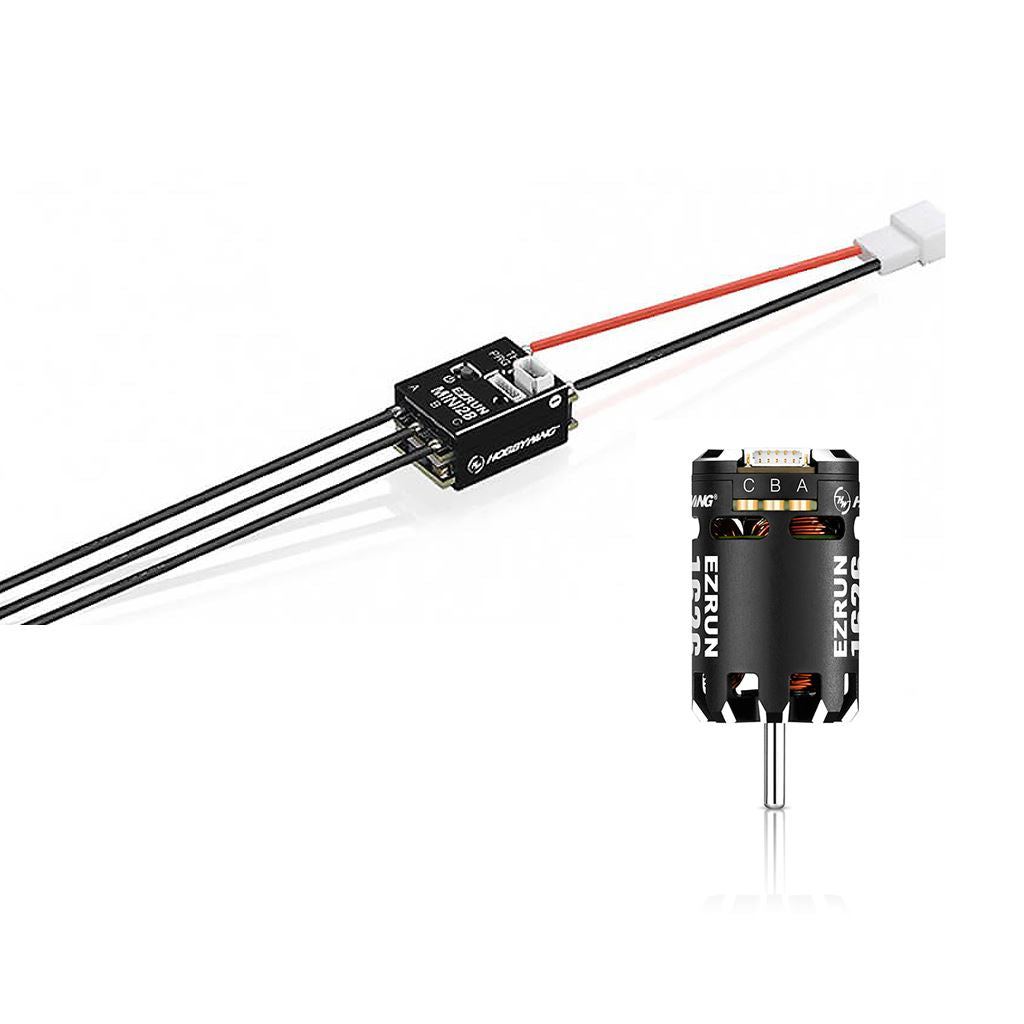

Ezrun Mini28 1626Sd 3500Kv Combo
Save £12.50
Couldn't load pickup availability
Born for 1/28 Car Competition.
The software, hardware and structure are tailor-made for 1/28 car competition, which is an ideal choice for the needs of 1/28 car competition.
Small size and light weight.
The ESC is 22mm long, 14mm wide, and weighs only 5g (without cables). The extremely small and light shape is convenient for wiring and makes the car more stable when cornering.
High power, good heat dissipation.
The maximum output current of the ESC is as high as 30A, plus the heat sink of the all-metal shell ensures that the ESC is always at the ideal working temperature. Maximum output current up to 30A. Full Metal Case Radiator
Turbo Timing Rich parameter items
26 Tuneable Parameters
1/10 power system commonly used throttle PWM frequency, brake frequency, softening, Boost/Turbo timing, etc.
The power demand can be precisely adjusted, allowing drivers to enjoy the ultimate control experience.
Warning! Please read the ESC manual carefully, wrong settings may cause damage to the ESC and the motor!
Built-in dual application mode
Two built-in competition modes, Zero Timing and Modified , can be selected and used immediately.
Built- in BEC
Supporting high-voltage steering gear
The ESC has a built- in switch mode BEC with a maximum output current of up to 3.5A, and the output voltage is adjustable at 6V/7.4V, which can easily meet the input power requirements of high-torque high voltage servos.
External OTA Bluetooth module.
Use mobile phone to program ESC
After the ESC is connected to the OTA Bluetooth module , a wireless connection can be established between It is simple and convenient to use the mobile app to perform parameter settings, data reading, and firmware upgrades .
Specifications
Brushed/Brushless - Brushless
Sensed/Non-sensed - Sensored
Waterproof - not waterproof
Basic parameters
Continuous/peak Current - 30A/80A
Battery Cell Number - 2S Lipo
BEC output - 6V/7.4V @ 3.5A max
Wire and Plug
Power Cord - Black-20AWG-55mm*1 Red-20AWG-55mm*1
Output Cord - Black-22AWG-80mm*3
Parameter programming method
ESC's own SET key - Not Supported
LED programming box parameter adjustment - Not Supported
LCD G2 setting box - Supported
OTA Programmer - Supported
Programming Interface - Throttle Cable Sharing
Firmware
Firmware online upgrade - Supported
Dimensions and Weight
Dimensions - 22.7x14.2x11.8mm
Weight (g) - 5g (without wire)
Application
Supported Motor Type - 1626 size motor
Applicable Models - 1/28th & 1/27th
The Motor
The first motor from Hobbywing is specifically designed for high-power 1/28th scale cars.
-Improved top speed
-Precision response
-High efficiency with the cool operation
-Designed for the rigors of high performance
-Easy to maintain with quality components
More Power!
When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
Small or large changes can be made for major on-demand power needs.
Precision Response
Zero cogging, consistent torque, and excellent low-speed response give an amazing feel and driveability.
The use of high-precision sensors ensures the ESC will be able to provide the best feel for the drivers.
Higher Efficiency means cooler operation
The 1626 motor is extremely efficient and has increased power compared to similar size motors.
Designed to ensure higher power capabilities
-High-density 4-layer PCB provide easy-to-solder connections.
-Reliable Materials
-High-quality bearings
-High-hardness aluminum CNC casing
-High-strength explosion-proof rotor
-High-resistant output shaft
-200°C temperature-resistant copper wire
-0.2mm ultra-thin silicon steel sheet
Modular detachable structure, convenient for daily cleaning and maintenance.
Specifications
Scale - 1/28th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Pole Count - 2
Relevant Parameters
KV Rating - 2500
LiPo Cells - 2S
No-load Current (A) - 0.4A
Size & Weight
O.D.(mm) - 16
Length (mm) - 26
Shaft Diameter (mm) - 2
Weight (g) - 18g
Bearing - D5*D2*T2.5
Applications - 1/28th Mini
-
