Futaba  |  R7003SB

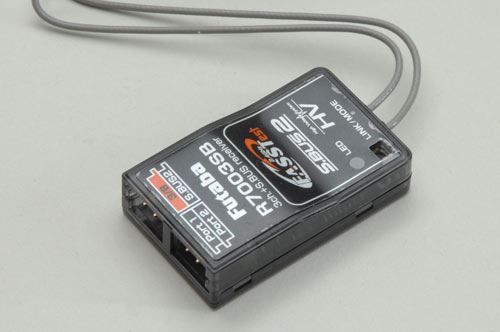

Futaba Receiver - 3/18-Channel S-Bus (Hv) 2.4Ghz Fasstest


£107.99
RRP: £119.99
Save £12
Home Delivery Available to order

        Allow 1-2 day(s) for order dispatch

The R7003SB was primarily developed for models using Futaba S.Bus system such as helicopters/drones but it equally suitable for fixed wing models using this system, or other models using only 3 channels. This tiny full range FASSTest receiver weighs in at only 7.2g and has a moulded plastic case for added durability. The S.Bus system allows for a simpler setup on complex/perfiormance models and has full support for S-Bus and S-Bus2 servos. The R7008SB is high voltage capable, meaning it can take power from sources such as 2S li-po batteries (3.7 - 7.4V supply).

As supplied the R7003SB receiver includes integral sensors for receiver voltage, signal strength and external voltage, with further separate sensors available seperatly.

• FASSTest (18ch & 12ch)
• Telemetry with built-in voltage sensor
• EXT-VOL external voltage sensor included (0.70V)
• PWM allows 3 channels
• S.BUS allows 18 channels
• Small and lightweight
• Moulded plastic case
• Dual antenna diversity (coaxial antenna)
• Full range operation
Specifications
Fail Safe Battery F/S voltage is set by the Tx
Modulation FASSTest (18ch & 12ch)
S.BUS S.BUS & S.BUS2
Telemetry Yes (EXT-VOL sensor included)
Weight 7.2g (0.25oz)
Channels 3 PWM (18 using S-Bus)
Dimensions 37.4 x 22.5 x 9.3mm (0.89 x 1.47 x 0.37")
Voltage 3.7 - 7.4v (3.7 - 8.4V Range)
Aerial Length 140mm (20mm Tips)
