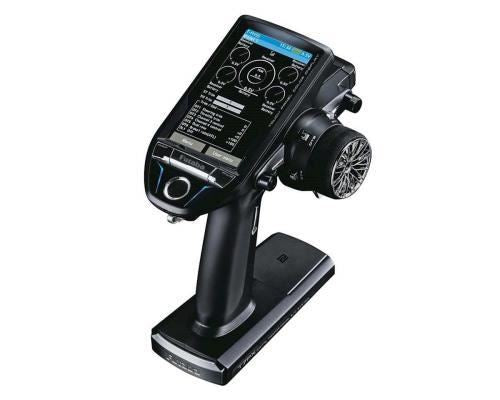

Futaba T7Px 7-Channel 2.4Ghz Transmitter And R334Sbs-E Rx Combo (P-Cb7Pxe)
Save £65
Couldn't load pickup availability
The case is moulded with a stunning deep satin black finish accented by chrome wheel and buttons. There are six push buttons, one 2-Position switch and 6 digital trims all of which are assignable to numerous different functions or any one of the 6 fully linear channels. The huge 4.3" colour touch screen is easy to use and responds fast to the touch. There is also a jog dial if you prefer to navigate that way.
Using a new system called 'SR' this is Futaba's the fastest responding radio so far with a frame rate of 2.45 milliseconds! This new system brings in a locked in feel and response that racers and performance drivers will truly appreciate. The T7PX is also compatible with Futaba T-FHSS, S-FHSS and FASST so you can select your preferred transmission system for each car to suit your requirements and budget. With T-FHSS telemetry the data can be displayed on the screen or relayed by a synthesized voice using the in-built speakers or headphones (not included).
The T7PX has the ability to update its software using SD card but it also has NFC (Near Field Communication), this means that you can update the radio from an android phone just by opening an APP and placing it next to it! Just another way that Futaba is at the forefront of technology to make your hobby easier.
• Up to 7 channel control
• Futaba SR (Super Response) technology (2.40ms)
• Capable of Futaba SR/T-FHSS/S-FHSS/FASST systems
• Telemetry capable using T-FHSS
• 40 model memory (+ SD Card)
• 15 model names
• Easy software updates using SD card or NFC from an android phone
• 4.3" colour touch-screen LCD display
• Built-in speaker
• Audio earphone jack
• Adjustable steering wheel
• 24 positions of steering wheel angle
• Adjustable throttle trigger
• 4 trigger sizes
• 7mm trigger adjustment
• 6 assignable digital trims
• 1 Rotary Dial
• 5 push switches
• 2-position switch
• Dual rates
• Exponential
• Adjustable speed
• End point adjustment
• Servo reversing
• Sub-trim adjustment
• Low battery alarm
• Lap timer
• Auto power-off
• ABS braking
• 5 channel mixes
• Left hand handle included
• 4WS mixing
• Brake mixing
• Gyro mixing
• Steering mixing
• Servo monitor
Box Contents
• Futaba T7PX Transmitter
• Futaba R334SBS-E Receiver
• Printed User Manual
Futaba Recommended Equipment
• Recommended low profile servo = Futaba BLS-571SV
• Recommended Receiver = Futaba R334SBS or R334SBS-E
Note:To get the best from the Futaba SR system you can update many Futaba SV servos using the 7PX controller itself to activate SR mode within them. The following servos are SR compatible BLS371SV, BLS471SV, BLS571SV, BLS671SV, BLS671SVi, S9372SV & S9373SV.
| Specifications | |
|---|---|
| Interface | 1 Jog Dial + Touch Screen |
| Mixes | 5 |
| Model Memory | 40 (+ SD Card) |
| ModelName | Up to 15 Characters |
| Modulation | Futaba SR/T-FHSS/S-FHSS/FASST |
| NFC | Yes |
| Receiver | Futaba R334SBS-E (Included) |
| Response Speed | T-FHSS = 5.46ms Average (6.4ms Variation) |
| Response Speed | SR = 2.26ms Average (1.63ms Variation) |
| Screen | 4.3" Color Touch LCD (5,118mm2) |
| Speaker | Yes |
| Switches | 6 x Push, 1 x 2-Position |
| Telemetry | Yes |
| Trigger Adjustment | 7mm |
| Trigger Size | Super Small/Small/Normal/Large |
| Trims | 6 Digital |
| Update | Using SD Card or NFC Android Device |
| Dials | 1 |
| Wheel Angle | 24 Positions |
| Weight | 580g |
| Channels | 4 Channel (7 Channel on S-FHSS) |
| Frequency | 2.4GHz |
| Voltage | 6 - 7.4V |
-
