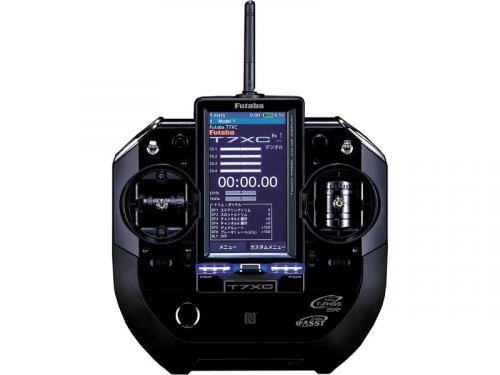

Futaba T7XC 7-Channel 2.4GHz Transmitter Combo including R334SBS Rx - P-CB7XC

Full Colour Touch Screen LCD
T7XC has an HVGA 4.3 inch, full-color, backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

T-FHSS SR (Super Response) & Telemetry T-FHSS
In addition to the T-FHSS telemetry system, we added a T-FHSS SR (Super response) system that increased processing speed to further improve response. (SR system does not support telemetry function)

Updateable software
Software can be updated by microSD card. Model data can also be saved in a microSD card. In addition, telemetry log data can be saved.

Model memory for 40 models
Model names can use up to 15 letters, numbers, and symbols, so that logical names may be used. A model memory with different setups can be created by using the model copy function.

NFC communication
It is possible to update the T7XC itself in the future by NFC communication.

Integral type dial switch
A switch with both dial (DL1) and Switch (SW6) functions.

Brake mixing for large cars
Brake mixing of the front and rear wheels of 1/5GP and other large cars can be adjusted independently.

Steering mixing
Smooth cornering is possible by the independent left and right steering servo setting.

4WS mixing for crawlers and other 4WS type
This function can be used with crawlers and other 4-wheel steering type vehicles.

Dual ESCs mixing for crawlers
ESC at the front and rear are controlled independently.

Gyro Mixing
The sensitivity of Futaba car rate gyros can be adjusted from the T7XC.

Tank mixing
This function is intended for vehicles such as tanks.

CPS mixing
LED lighting and flashing control using our CPS-1 channel power switch can be matched to steering and throttle operation by switch only.

S.BUS servo
This is a special function that allows setting of the parameters of our S.BUS servo whose settings are changed by using PC Link software.

MC-Link
This is a dedicated function which allows setting of the contents of the Link software which makes possible Futaba speed controller (ESC), MC960CR, MC950CR, MC850C, MC851C, MC602C, MC402CR, etc. variable frequency and other data changes by PC at the T7XC.

Throttle speed
Sudden stick operation on a slippery road surface will only cause the tires to spin and the model to not accelerate smoothly. By setting the throttle speed function, operation can be performed smoothly and easily. It also suppresses battery consumption.

Steering speed
When you sense that the steering servo is too fast, etc., the servo operating speed (direction that suppresses the maximum speed) can be adjusted.

Non-telemetry LED
When the telemetry function is OFF to confirm that the telemetry function is not operating.

Dial select function
This function assigns functions to dials (digital trim, grip dial, knob). The step amount and operating direction can also be adjusted. Trim positioning at each model call is unnecessary because all the dials are digital.

Switch select function
This function assigns functions to 5 switches. The operating direction can also be set.

Trim/dial lock functions
Lock functions which prohibit setting and operation by transmitter trim, and dials are provided.

Vibrator built into the grip
The vibrator can be operated at racing timer lap navigation, time-up, and low battery, telemetry alarm. It sets it on each function screen.

Full Function List
• Display Backlight brightness setting / dimming time setting / touch panel correction
• Information Language setting / version information
• Sound Sound setting (telemetry sound, alarm sound, operating sound)
• Battery Battery type setting / Auto power off ON / OFF
• Date And Time Date and time setting / Displaying the time on the home screen or selecting the total timer
• LED Setting Pilot LED on/off
• Calibration Steering wheel and throttle trigger correction
• Software Update Updated with terminal app on NFC
• Receiver Update Update receiver (R334SBS / R334SBS-E)
• Model Select Model memory call
• Model Copy Model memory copy
• Model Name Model memory name set/modify
• Model Delete Delete model data in SD card
• Data Reset Model memory reset (Model, Direct menu, All)
• Receiver
• Receiver system/servo response selection/linking with T-FHSS SR & T-FHSS system receive/Telemetry ON / OFF
• Servo View Displays servo operation on a bar graph
• Trigger Neutral brake and throttle servo forward side and brake side operation rate setting
• Channel Reverse Servo operation reversing
• Sub Trim Servo center position fine adjustment
• End Point End point adjustment
• Fail-safe/Battery Fail-safe Fail-safe, battery fail-safe
• Acceleration Reduces the "lag time" of the throttle from the neutral position.
• Trim / Dial Select Selection of functions operated by digital dial and digital trim
• Switch Select Selection of functions operated by push switches
• Condition 2ND condition
• Idle-Up Idle up at engine start
• D/R,ATL Steering angle adjustment while running/ Brake side adjustment
• Channel Limiter A channel limiter function which limits maximum servo movement.
• Channel Setting Ability to assign steering or throttle motion to any channel.
• Curve (EXP) Steering curve adjustment / Throttle curve adjustment
• Speed Steering servo delay / Throttle servo delay
• Traction Control Pulse throttle operation.
• A.B.S Pulse brake
• Start Throttle preset at start function
• Engine Cut Engine cut off by switch
• Steering Mixing Twin servo mixing of the steering
• Brake Mixing Front and rear independent brake control for 1/5GP car, etc.
• Gyro Mixing The sensitivity of Futaba car rate gyros can be adjusted
• 4WS Mixing 4-wheel steering mixing
• Dual ESC Front and rear ESCs mixing
• CPS Mixing The CPS-1 of Futaba LED controller can be adjusted.
• Tank Mixing For Tank mixing
• Program
• Mixing 1-5 Programmable mixing between arbitrary channels
• Tilt Mixing Outboard engine tilt mixing
• Telemetry Telemetry data screen
• Sensor List Telemetry sensors list
• Sensor Menu Telemetry sensors setting
• Timer Up, down, lap, or lap navigation timer
• Lap List Lap timer data (lap time, average lap, best lap time) check
• S.BUS Servo S.BUS servo Link software setting / SR mode setting
• MC (ESC) Link MC851C/602C/402CR/950CR/940CR/960CR Link software setting function
• Roll Out Chart For pan cars roll out chart
• Gear Ratio Chart Gear ratio calculation function.
• Home Button
• Setting Change the function of the HOME button

Compatible Receivers(As of May 2018)
T-FHSS SR/T-FHSS (Default) - R334SBS/ R334SBS-E
T-FHSS - R304SB/ R304SBE
S-FHSS - R2104GF/ R204GF-E/ R2008SB/ R2006GS
FASST - R614FS/ R614FF-E/ R604FS/ R604FS-E
Note: R3008SB & T-FHSS Air system receivers do not operate.

Servos Compatible with SR Mode:
The following servos are compatible with Futaba's ultra fast T-FHSS SR transmission system.
BLS371SV, BLS471SV, BLS571SV, BLS671SV, S9372SV, S9373SV, BLS373SV

Box Contents
• Futaba T7XC Transmitter
• Futaba R334SBS
• Dry battery holder (Installed in transmitter)
• Miniature screwdriver
• 3x Receiver plugs
• 1x Ratchet plate
• Printed instruction manual
