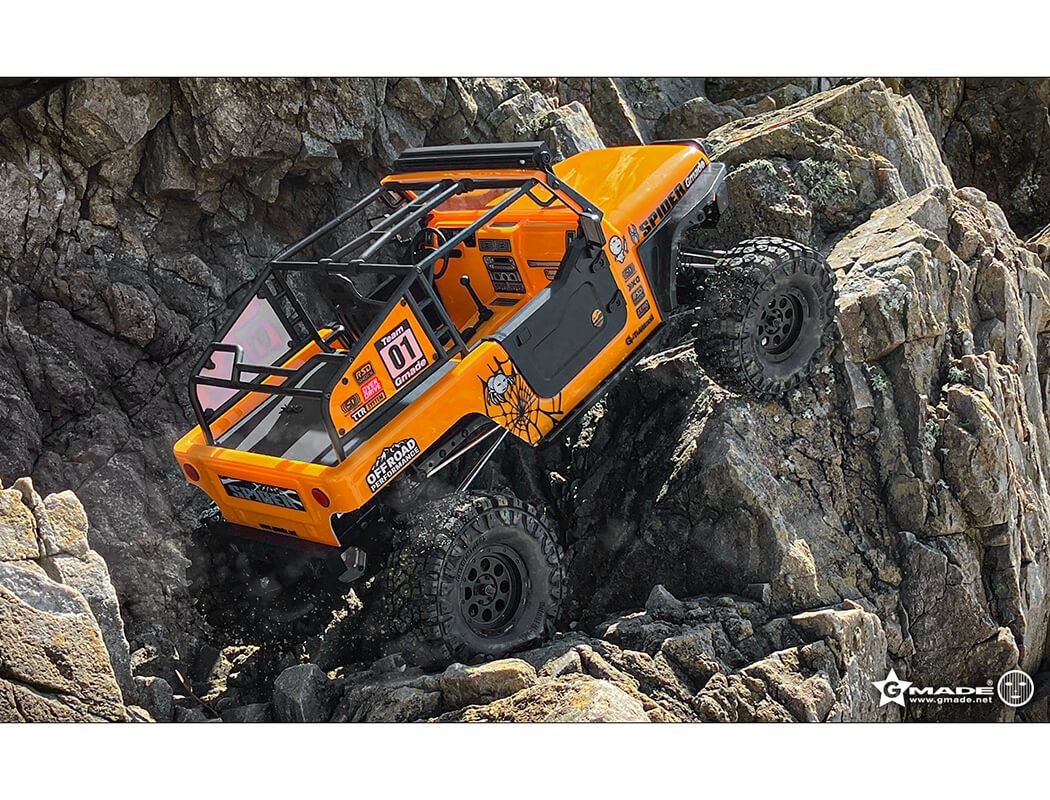

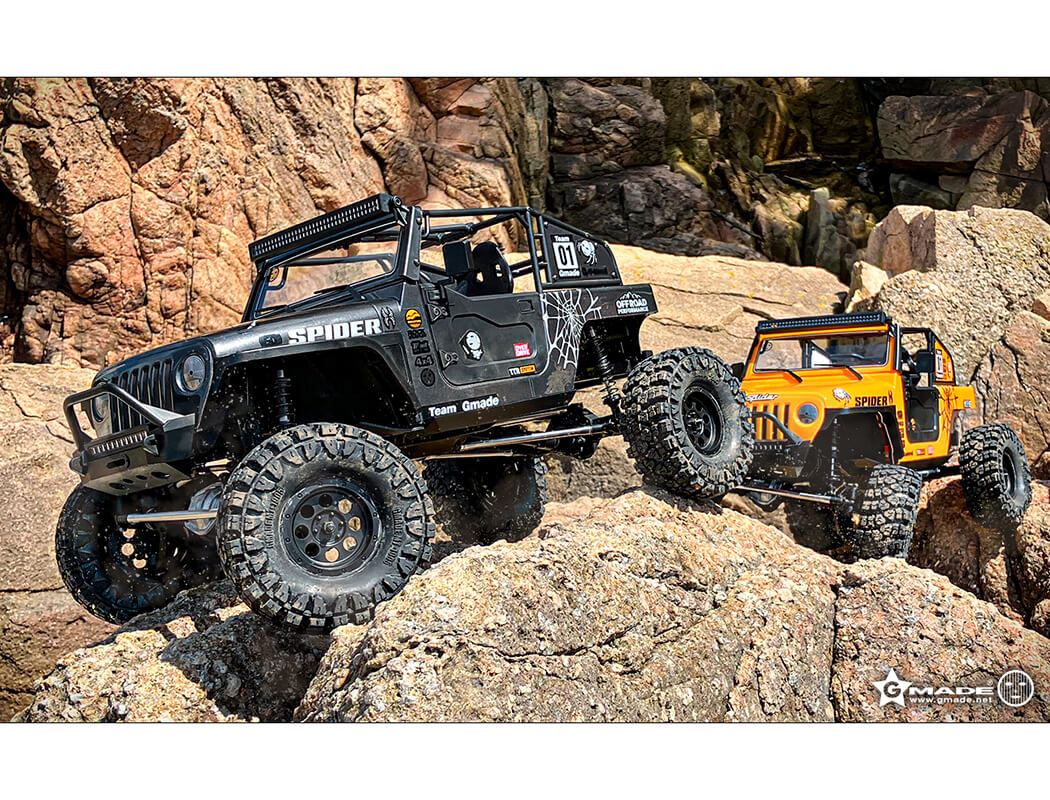

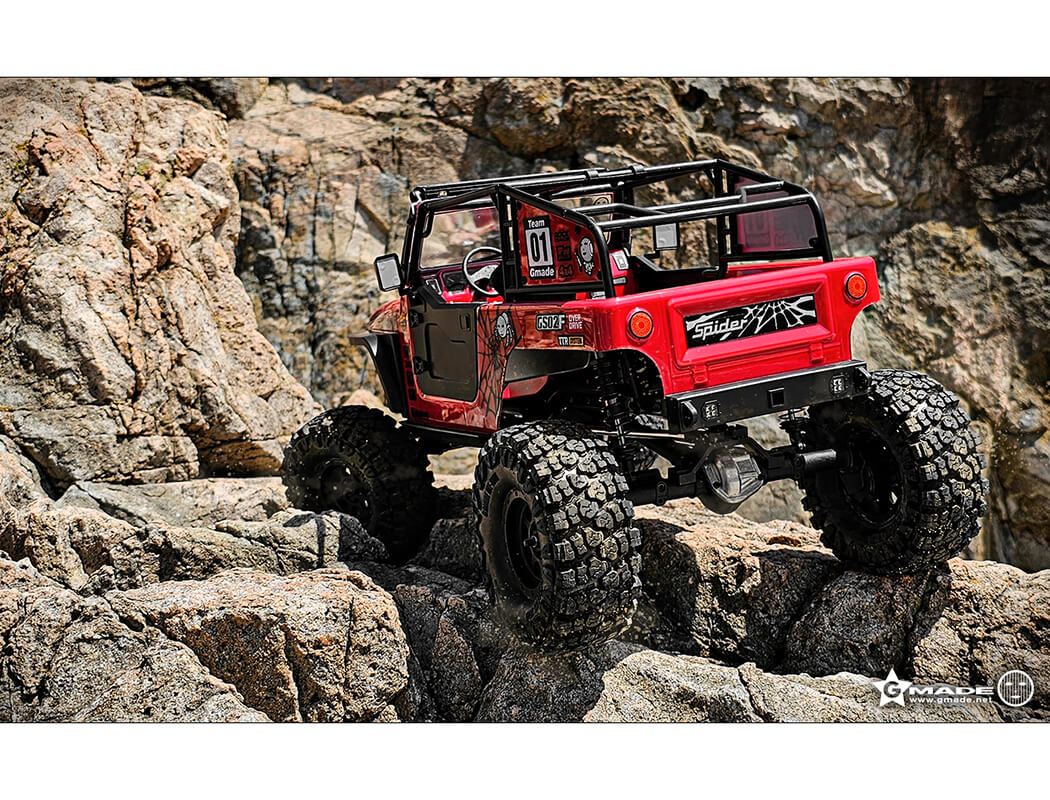

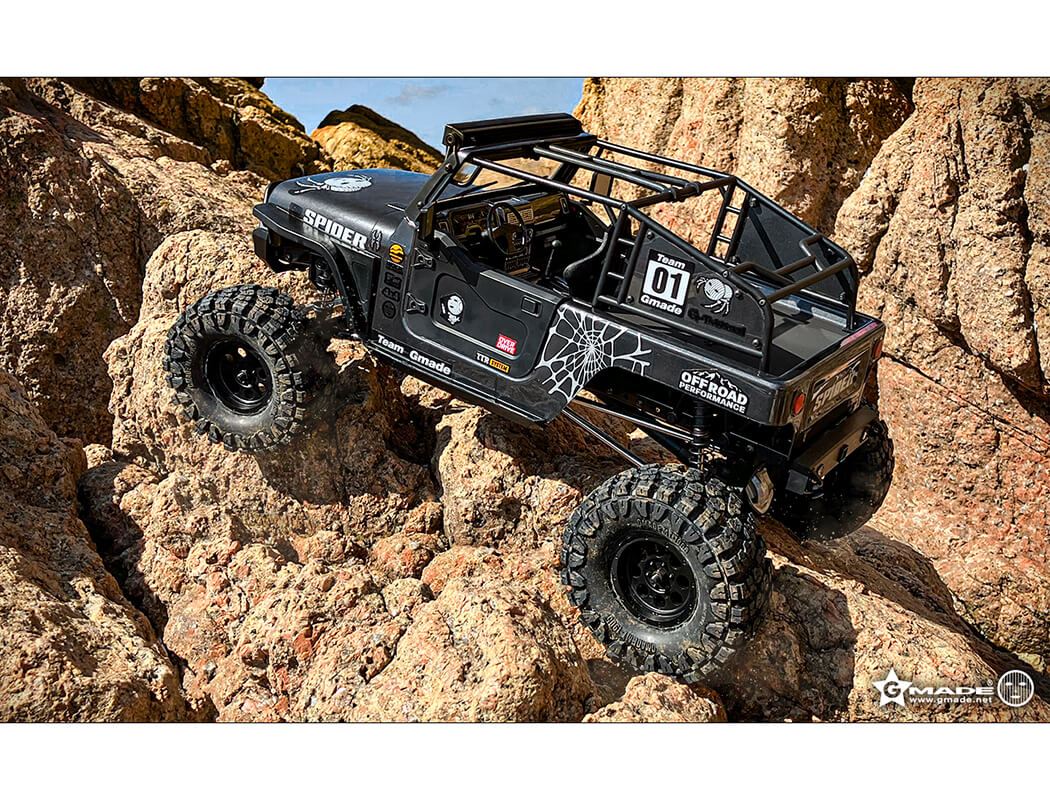

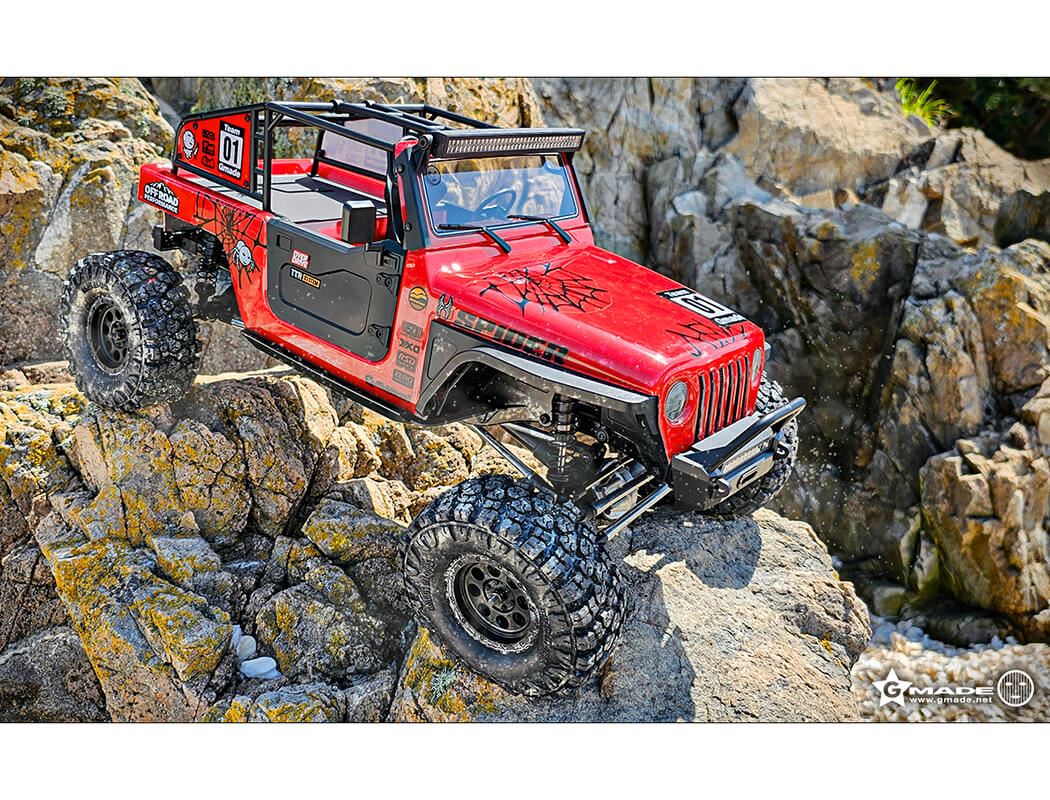

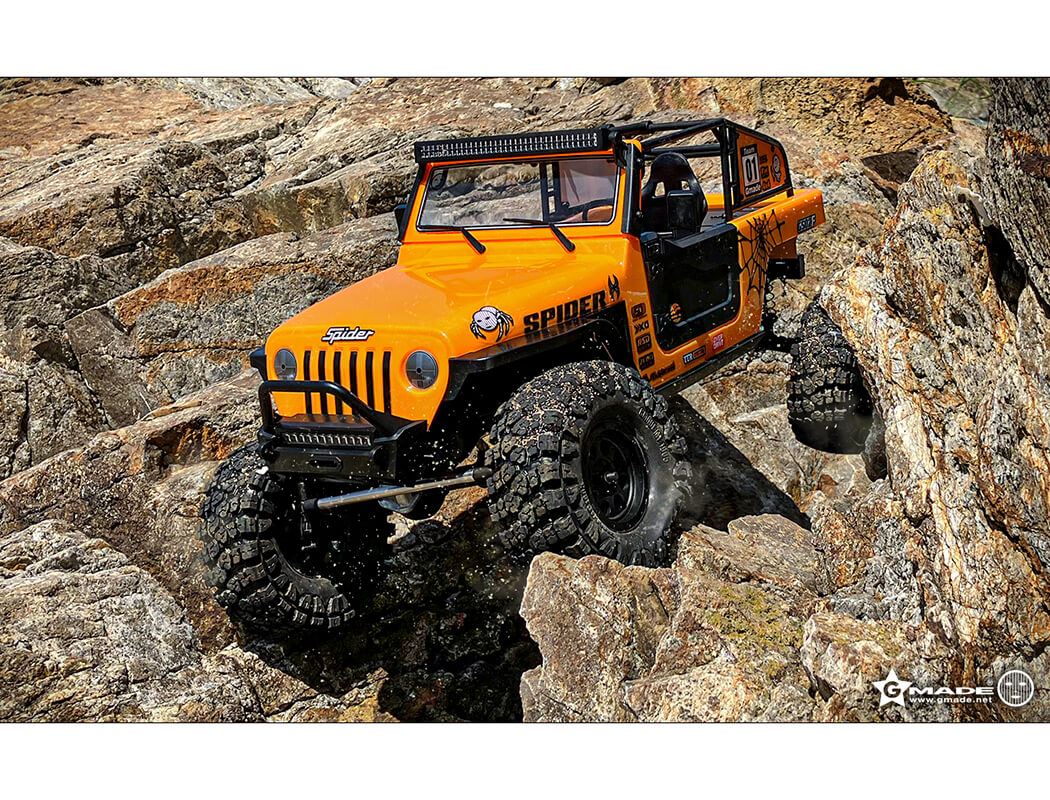

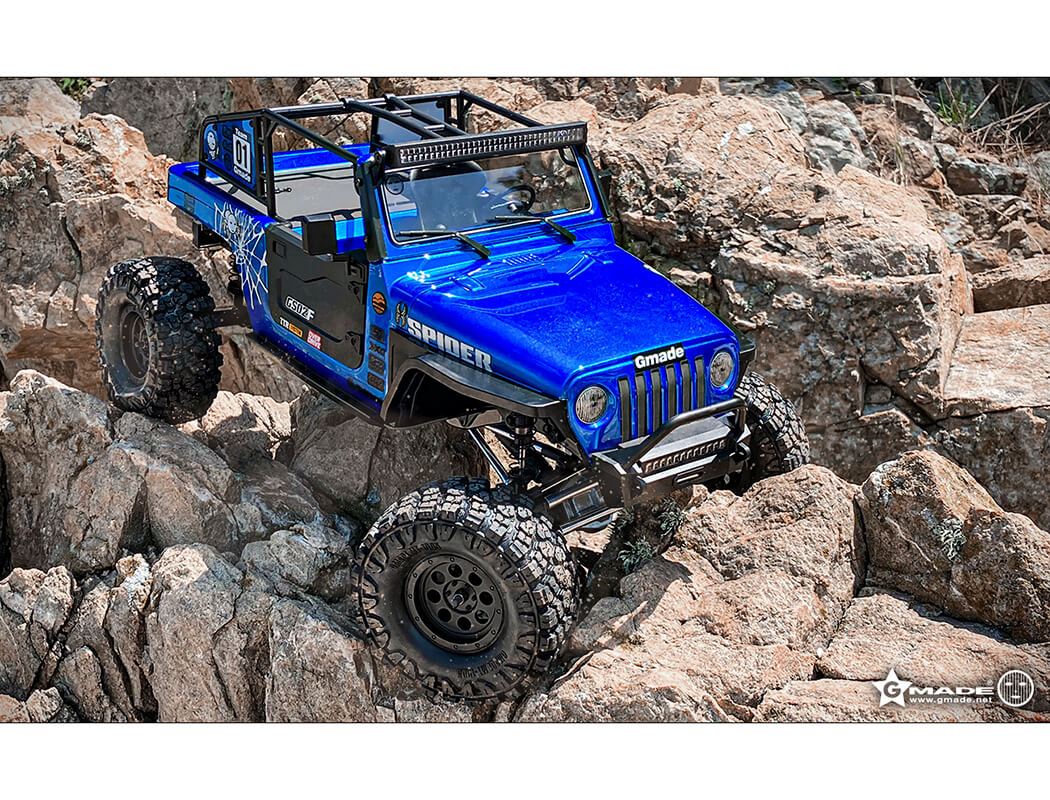

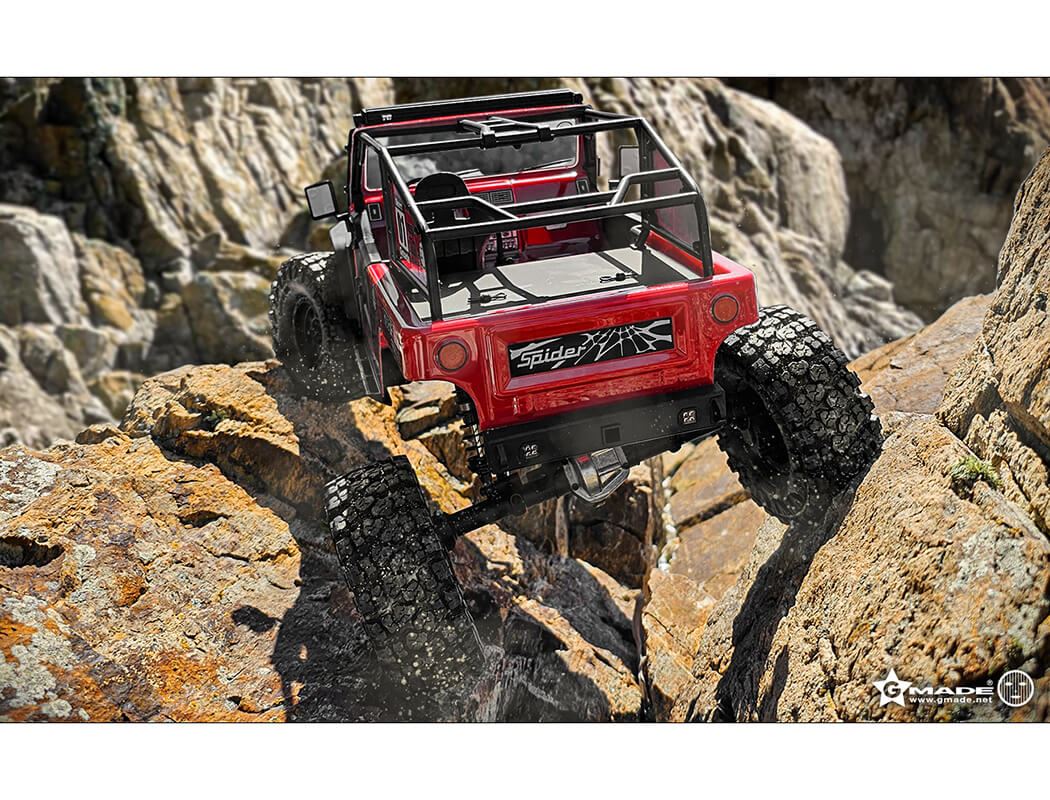

GMADE 1/10 GS02F SPIDER PORTAL TS ASSEMBLY KIT
Save £38.50
Couldn't load pickup availability
GMADE 1/10 GS02F SPIDER PORTAL TS ASSEMBLY KIT
GM57014 - 1/10 GS02F SPIDER PORTAL TS KIT
ASSEMBLE KIT
Radio control / electric
PERFORMANCE

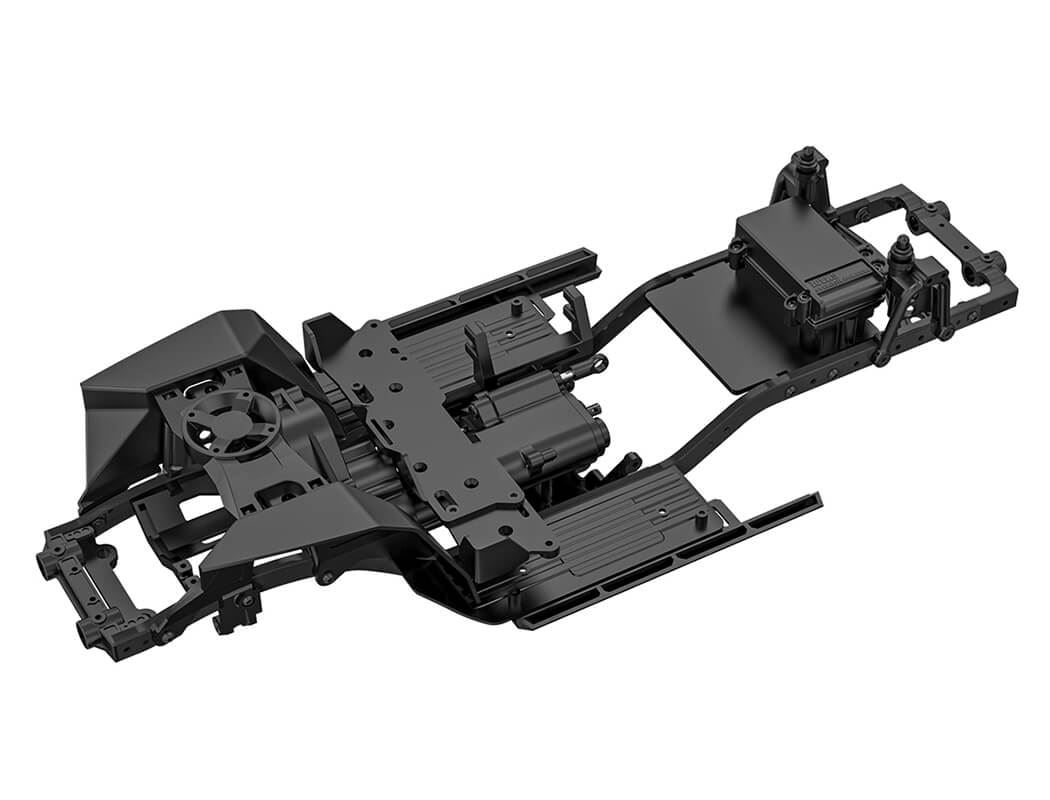

Frame
Steel Frame Ladder
The frame of GS02F chassis is designed to look like real cars’. It is made of high strength steel and the C-channel side rail with hex wrench bolted cross members make it resistant to twisting and warping. The steel parts are finished with powder coats to prevent rusting.
Inner Fenders
The inner fenders are directly fixed to the frame to reduce flex and bend of the chassis and parts. They also avoid external objects entering into the chassis during the driving.
Extended 347mm wheelbase
Extended wheelbase makes climbing and rough terrain driving more stable and smoother.
Front Weight Balance
Weight balance of the GS02F chassis is leaning forward. This increases traction of the front wheels and provides better crawling performance at high angle hills or rocks. It also minimizes rolling over backwards when climbing.
Front Mounted Motor
Front mounted motor helps the vehicle’s weight balance to the front. Either a 540 or 550 size motor can be mounted and a cooling fan will be easily fitted to the incorporated structure.
Multiple Battery Size
Size changing battery tray of the GS02F chassis can hold all sizes of Lipo and Ni-MH batteries.
Chassis Mounted Servo System With Panhard Bar
Steering servo in the GS02F chassis is located on the frame just as the real cars. Therefore the system eliminates bump steering effects which appear by the front wheel suspension movements. Additionally the panhard-bar is installed and cleverly designed to avoid any interference with nearby parts, so the front suspension and shocks can move freely.
Drive Train
Drivelines
The drivelines to the front and rear axles are designed to arrange in a straight-line and this reduces fatigue or stress of the universal shafts and loss of power delivery.
Transmission
Transmission of the GS02F chassis is designed to look as that of real vehicles. It also provides best performance for every driving situation.
Overdrive
Overdrive system means the front and the rear wheels rotate for different speeds. The GS02F transmission is designed to rotate the front wheels faster than the rear wheels.
Better Steering Radius
Vehicles with overdrive front wheels turn with shorter steering radius compared with non-overdrive vehicles. The overdrive also makes the control easier when the car is driving on rough surfaces.
Better Climbing
Increasing of the tire traction allows the vehicle to pass through steep slopes and obstacles without lifting the front of the body upward.
2-Speed HI/LO Transmission
The 1st gear is for hardcore rock crawling and the 2nd gear is for hill climb or high-speed driving.
Torque Twist Reduce Transmission
TTR(Torque Twist Reduce) transmission is designed to reduce unnecessary torque so the vehicle will drive with more stability. From the transmission, the front and rear universal shafts rotates clockwise and counterclockwise, and these opposite rotations compensate for rotational forces of action(torque) and reaction(reverse torque).
Easy Adjust Motor Mount
With the easy motor mount, users can easily replace and install the motor pinion gear for changing the gear ratio.
Hardened Carbon Steel Universal Joints
The steel joints attached to universal shafts always provide smooth and stable power deliveries. The kit also provides universal shafts with different lengths, so the user can try other wheel bases or styles.
GA44P Portal Axle
Higher ground clearance and anti-torque performance provided by the GA44P portal axle realizes excellent off-road driving performance in extreme terrain. It is made of high-strength material and equipped with uniquely designed tilted differential covers and this design will help decrease damages of the differential covers and smoothly climb over the obstacles.
Kingpin Angle
Keeping the scrub radius to a minimum to let your steering servo work at it's full potential and increases the steering efficiency.
High Steer knuckle Arm
High steer knuckle arm system increases the approach angle, so the vehicle can climb over the obstacles more easily than typical trucks.
Zero Ackerman Steering
The GA44P axle is using Zero-ackerman steering system with CVA to ensure maximum performance with a short turn radius and smooth motion even on rough off-road terrain.
Suspension
SD Scaler Shock Absorber
SD scale shock is a coil-over style shock absorber which is optimized for scale trucks. When driving, the oil inside the shock bodies will minimize the bouncing and high durability aluminum shock bodies and 3.5mm heavy duty shock shafts will ensure smooth driving on rough surfaces. Adjustable nuts will make it easy to change the ride-height of the vehicle so the user can quickly adapt settings to any driving conditions.
Wheel And Tyres
MT-1905 1.9 Inch M/T Off-Road Tyre
The MT 1905 off-road tires, made of super soft compound material provide much traction to the surfaces. The tread patterns are suitable for off-road driving and the large diameter of the tires enables it to run smoothly on any uneven road surfaces.
Specifications
Tyre Height: 121mm
Tyre Width: 45mm
Inner Diameter: 48mm (1.9")
1.9 Inch NR03 Wheel
Specifications
Width : 23mm
Diameter: 48mm (1.9")
Offset: 0.5mm positive offset
Hex Mount: 12mm
Exterior

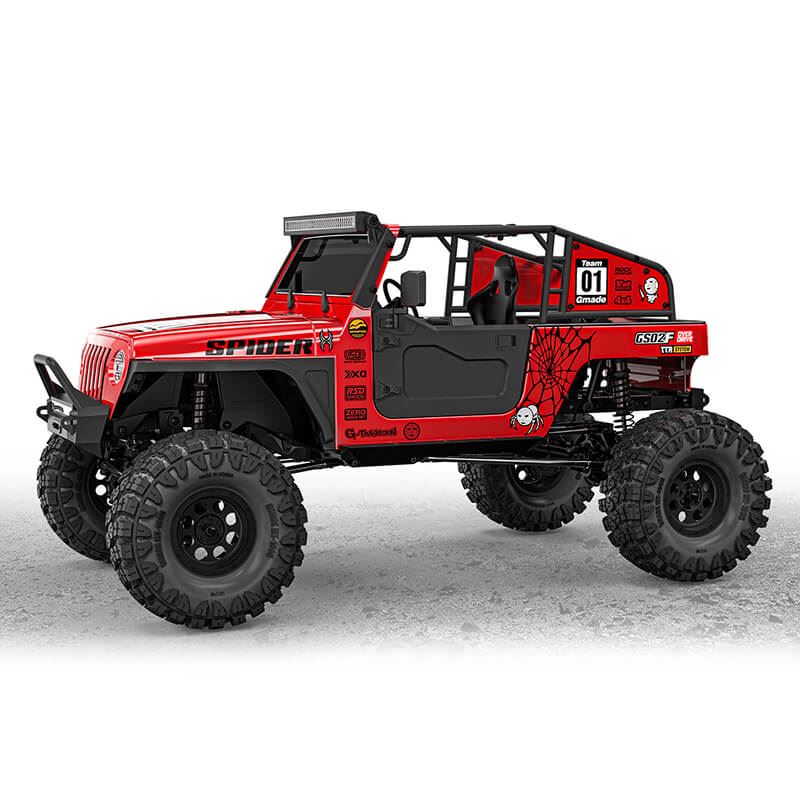

Spider Lexan Body
The spider body is a NO TOP style body made of high quality 1.5mm lexan with high strength and details. To add realism details it includes front grille, light bucket, side mirrors, wipers, driver seat, steering wheel, shifter, overfenders, roll cage and a LED light bar so you can tune into a realistic off-road vehicle to matches the concept of off-road adventure. The accessory parts are made of high-strength plastic so they are resistant from the highly impacts, and include decals with realistic details.
Front Stealth Body Mount
This system allows the car body to be secured to the chassis without drilling holes on the body surface, so it will increase the realistic scale of the vehicle.
Specifications
-
