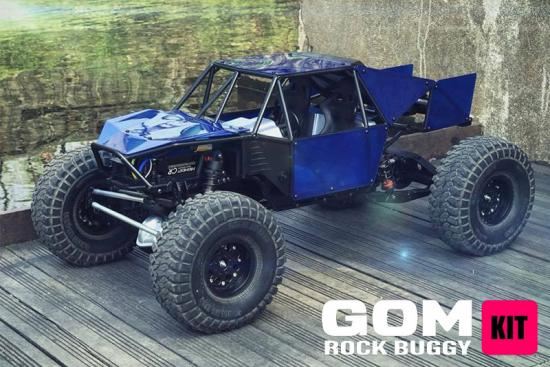

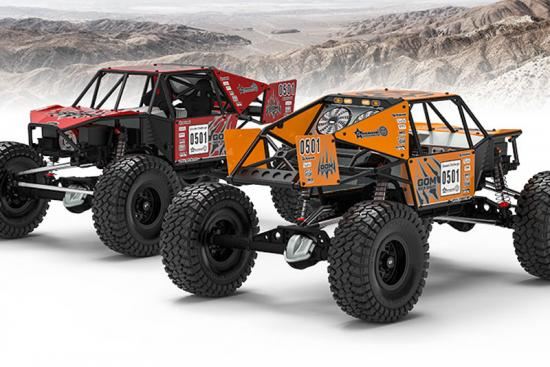

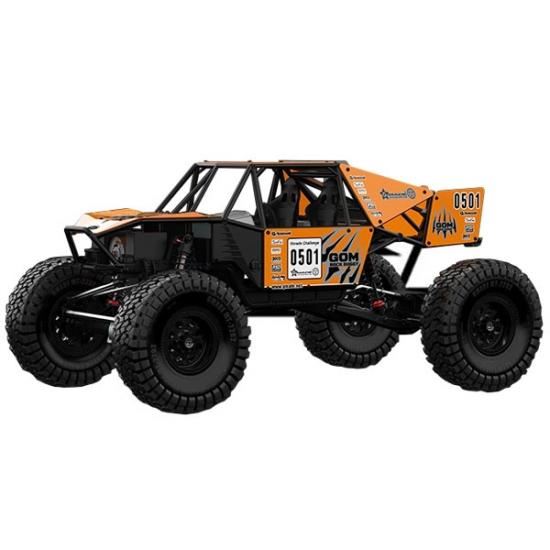

GMADE GOM GR01 1/10TH 4WD ROCK CRAWLER KIT

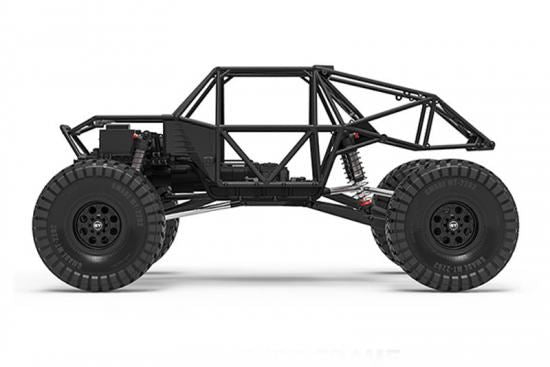

The GOM (translates to "Bear") features a lightweight, extremely rigid tube chassis that not only looks extremely scale, but protects against impact. The steering servo is mounted to the chassis, and bump steer has been minimized to provide the best possible steering performance. The dustproof receiver box and easy access battery door provide plenty of space for your components.

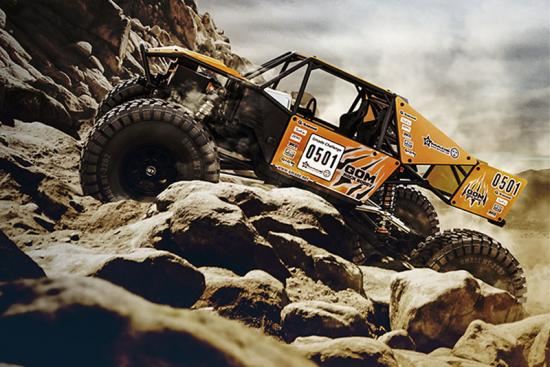

The GOM's front weight balance is designed to increase traction to the front wheels, improving climbing on steep angles and minimizing roll-overs.

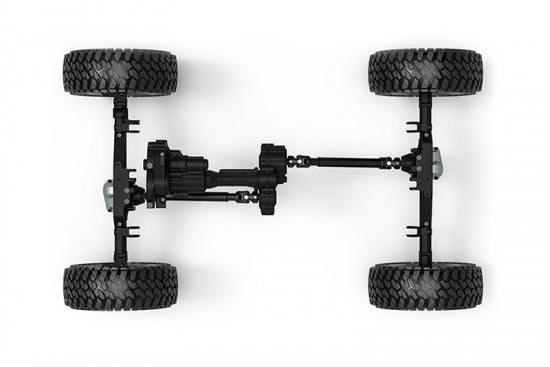

The 2 speed transmission, and transfer case with built in dig function, are designed to enhance the scale appearance of the vehicle. Drivetrain efficiency has been improved by lowering the transfer case and reducing the driveline angle. The dual pad slipper holds the spur gear firmly and evenly, making precision settings easy to achieve.
The GA60 axles are structurally reinforced with an axle truss to not only reduce the risk of breakage, but to give a great scale appearance. They feature Hi Steer Zero Ackerman Knuckle Arms for improved clearance and a tight turning radius.

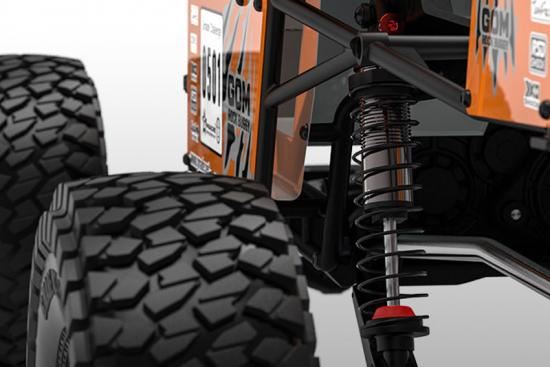

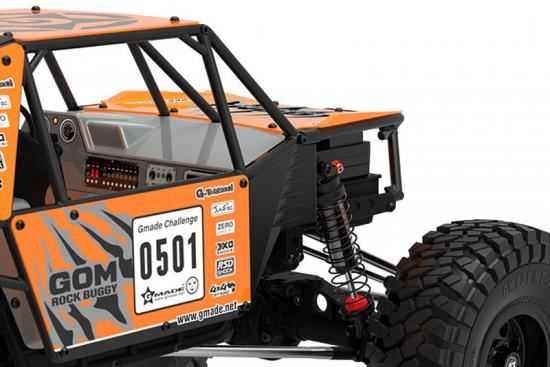

Suspension utilizes 103mm aeration coil-over shocks for smooth driving on rough surfaces. Shock bodies are CNC machined, and 3.5mm shock shafts provide high durability. Rebound can be adjusted without disassembling the shock by simply using the aeration shock cap screw.

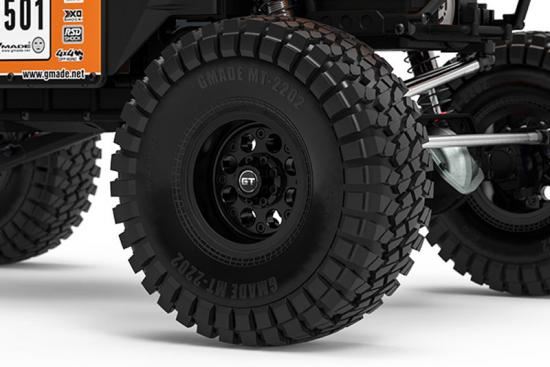

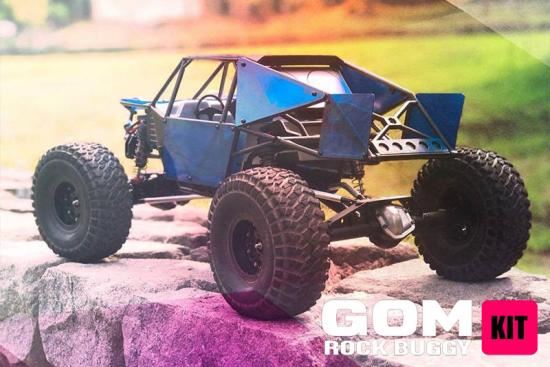

GT02 wheels and MT2202 2.2" tyres are included. Body panels are clear, so you can create your own unique paint scheme.
GMade GOM GR01 Rock Buggy Features:
- Full tube frame chassis
- 2 Speed transmission
- DIG System
- Front weight balance
- 4 wheel drive
- Chassis mount servo system with Panhard bar
- Dustproof receiver box

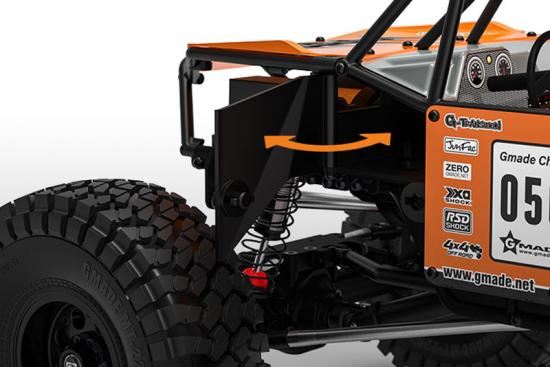

- Forward easy access battery door

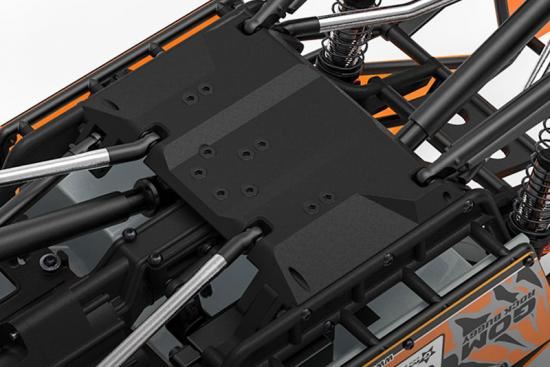

- Skid plate
- Dual slipper clutch

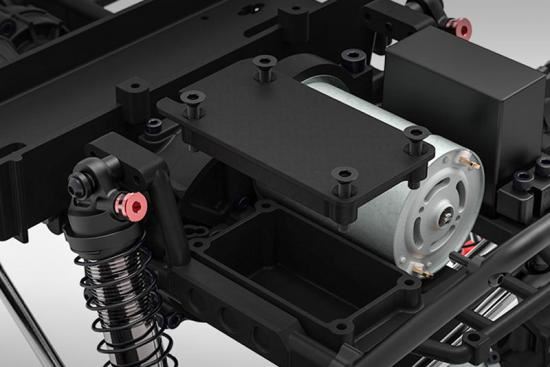

- Easy adjust motor mount
- Hi-Steer zero ackerman knuckle arm
- GA60 axle
- Rear dual shock mounts
- XD Aeration 103mm shocks
- GMade MT2202 off-road tyres
- GMade GT02 beadlock wheels
- Interior cockpit detail
Spec Check:
- Scale:1/10th
- Width: 318mm
- Height: 248mm
- Length: 523mm
- Wheelbase: 380mm
- Ground Clearance: 88mm
- Weight (No Electronics): 2kg
Please Note: This kit requires the following for completion: RC radio system, 7.2V battery pack, Battery charger, Electronic speed control, RC electric motor, Steering servo & paint for polycarbonate body.
-
