Model Motors  |  MM121512

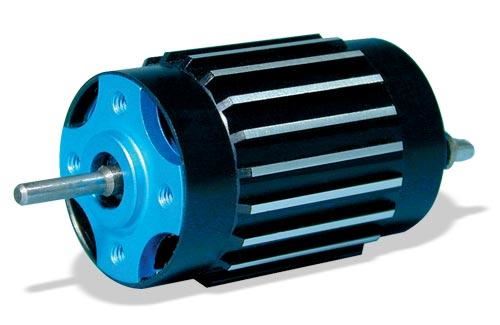

Model Motors Mini Ac1215/12 Brushless Motor


£23.49
RRP: £24.99
Save £1.50
Notify me when available
300 size motor with neodym magnets and dural case with cooling fins.

Specially designed for 55-65mm ducted fans but also suitable for 400-480 size models up to 950g in weight.

Specifications
Number of cells 6-8
RPM/Volt 4750
Maximum Efficiency Current 8-15 A (>71%)
Maximum Loading 20 A / 30 S
Internal Resistance 70 mOhm
Dimensions 24.8 x 47.5mm
Shaft Diameter 2.3mm
Weight 53g
