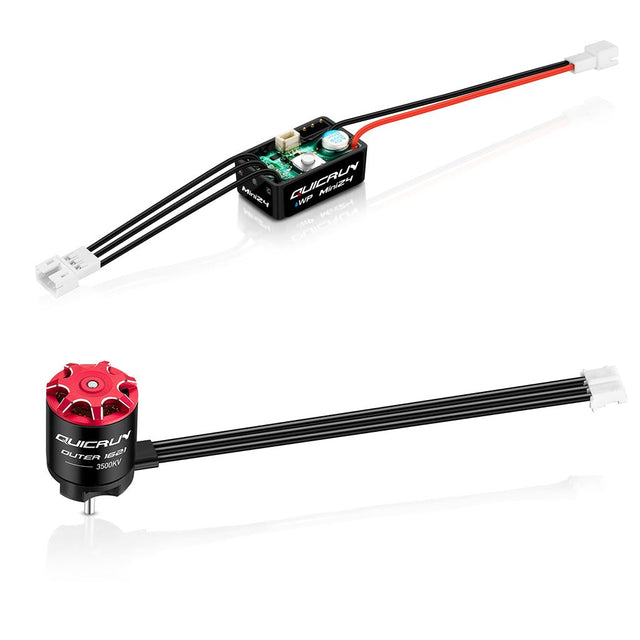

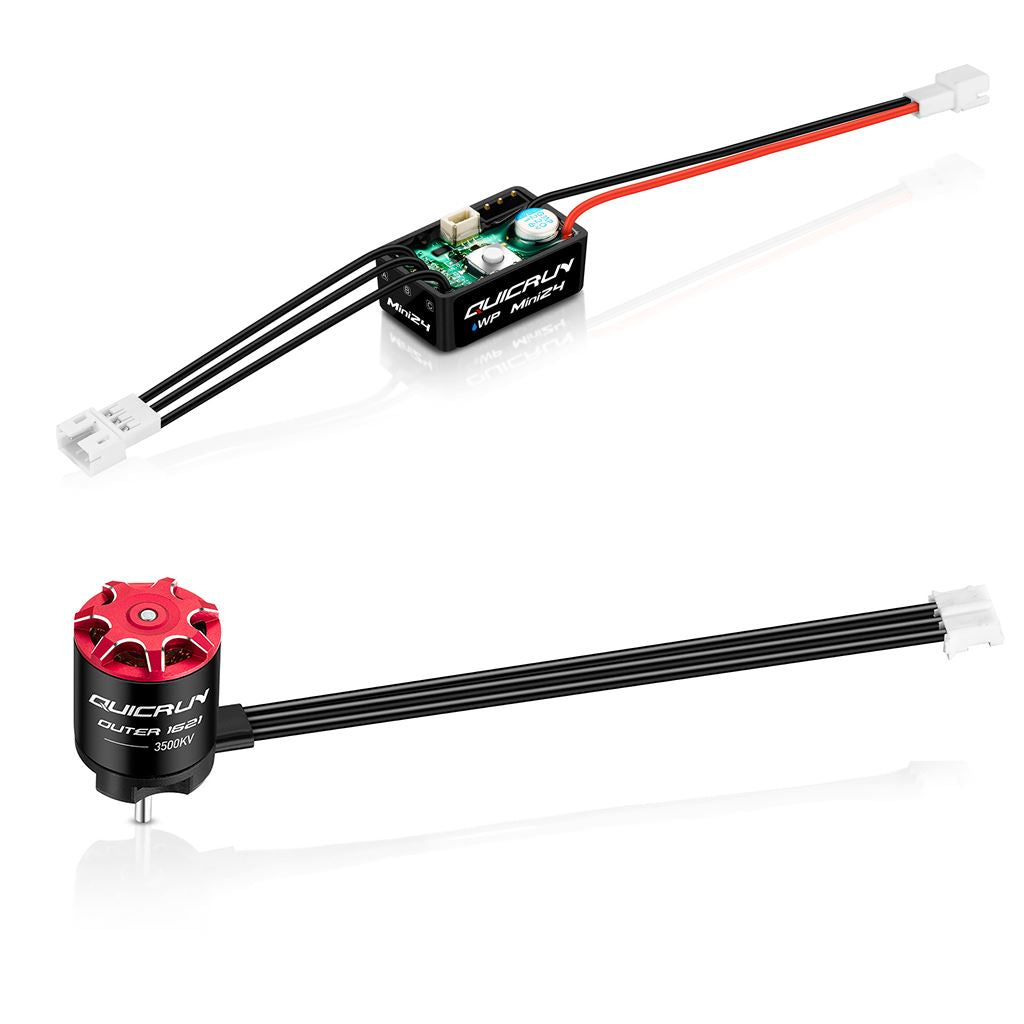

Quickrun Combo Mini 24 - Outer 1621 Sl 3500Kv

From Hobbywing, designed for smaller scale crawling vehicles the Quickrun WP - MINI24 and Outer 1621SL 3500KV Motor.

The software, hardware, and structure of the QuicRun WP Mini24 are tailor-made for col-sm-scale crawling vehicles. It has a large torque at low-speed, and operates smoothly. The QuicRun WP Mini24 is the ideal choice for crawling vehicles for 1/16th, 1/18th and 1/24th scale models.

Adjust drag brake force in real time

The ESC programming port has an AUX function. Connect the signal cable (standard 2pin cable) to an open channel on the receiver to adjust the drag brake force in real time. Adjusting drag brake force on the fly can be achieved to meet various application environments.

All-weather operation capability
The ESC's protection level reaches IP67. Able to easily cope with various competition environments such as rain, dust, and sand with its excellent waterproof and dust-proof protection.

Note:
The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may decrease due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.

Built-in BEC supported for high-voltage servo
The powerful switch mode BEC has a maximum current of 6A. The output voltage is switchable between 6V/7.4V and is suitable various standard/high-voltage servos on the market.

Waterproofing switch
The QuicRun WP Mini24 has a built-in waterproof switch with waterproof, dustproof, and impact-resistant. Completely solved the traditional mechanical switch in dusty, humid and other harsh environments frequent jamming, contact corrosion, impact (such as falling to the ground) and lead to the mechanical switch automatically shut down and other problems.

Easy to install
The QuicRun WP Mini24 uses a PH 2.0-3PIN female connector. Plug and play with HW motors or another brand of motors with the same plug. The input end uses a PH 2.0-2PIN female connector.
Other models such as SCX24 are able to plug and play. The common connector saves the trouble of re-soldering plugs.
Note:
In addition, the ESC comes standard with a brushed adapter cable for easy operation.

Support brushed and brushless modes
The QuicRun WP Mini24 supports both brushed and brushless motors with great compatibility.
Note:
The factory default is brushless mode. If you are connecting to a brushed motor, please connect the A/C line and set the ESC to "Brushed Motor", otherwise the ESC may be damaged.

Support various LED/LCD programming boxes
The ESC not only supports simple LED programming boxes, but also supports high-end products like the LCD programming boxes with a more complete display.

A vast variety of parameters
The QuicRun WP Mini24 has a vast variety of parameters for adjustment. A total of 13 adjustable parameters are available. It includes commonly used parameters such as drag brake force and drag brake acceleration. It is able to adjust accurately the power requirements to meet various application setting needs.

Specifications

Scale - 1/24th, 1/18th,1/16th

Brushed/Brushless - Brushless,Brushed

Sensored/Sensorless - Sensorless

Waterproof - Yes

Cont./Peak Current - 25A/60A

Input Voltage - 2-3S Lipo

BEC Output - 6V/7.4V adjustable, continuous current 2A (Switch mode)

Wires & Connectors

Input Wires

Black-22AWG-110MMmm*1 Red-22AWG-110MMmm*1

Output Wires

Black-12AWG-200mm*3 Black-14AWG-200mm*3

Input Connectors - PH2.0-2PIN Female Connector

Output Connectors - PH2.0-3PIN Female Connector

ESC Programing via

SET Button on ESC - Not Supported

LED Program Box - Supported

LCD G2 Program Box/LCD PRO - Supported

OTA Programmer - Supported

Program Port

Independent programming cable

Firmware

Firmware Upgrade - Not Supported

Size & Weight

Size - 28*17.8*13mm

Weight - 13.5g（including wires&connectors）

Motors - Sensorless brushless motor, and brushed motor.

Vehicles - 1/24thVehicles，1/18th、1/16thCrawlers

Applicable motors - QUICRUN Outer 1621, mainstream 1212, 1806 sensorless outrunner motors; 050, 130, 180 including other brushed motors.Introducing the Hobbywing QuicRun Outer 1621 SL Motor.

The perfect combination for QuicRun WP-MINI24 ESC

The motor is equipped with a standard PH 2.0-3PIN male connector, ensuring seamless plug-and-play functionality with the QuicRun WP-MINI24 ESC, offering excellent compatibility.

Provides good inearity at low speeds with minimal vibration amplitude
The rotor has undergone precision dynamic balancing, significantly reducing vibration and performance loss while ensuring excellent low-speed linearity and a smooth control experience.

Silicone wire outlet
The motor features a silicone wireoutlet, offering easier and more aesthetically pleasing wiring compared to traditional high-hardness enameled wire outlets.

High installation compatibility for versatile usage
The motor includes 3 sets of M2 screw holeshole pitches 9mm/10mm/12.5mmmaking it compatible with various motor base mounting hole diameters and offering excellent adaptability.

Low cogging torque for smoother operation
The motor features a low cogging effect and minimal torque pulsation，ensuring exceptionallysmooth operation at low speeds, perfectly meeting the drivers' need for precise control.

The modular design allows for easier disassembly and maintenance
The motor features a modular design allows for direct disassembly, making daily cleaning and maintenance easy.This not only extends the motor's service life but also helps maintain optimal working efficiency.

Specifications

Type
Scale: 1/10th
Brushed / Brushless: BL
Sensored / Sensorless: SL
Pole Count: 12

Relevant Parameters
KV Rating: 3500KV
LiPo Cells: 2-3S
No-Load Current(A): 0.6A

Size & Weight
O.D.(mm): 15.8
Length (mm): 21
Shaft Diameter (mm): 2
Weight (g): 16.7g

Other Parameters
Recommended ESC - QuicRun WP MINI24
Application: 1/24th Crawlers
