RC4WD  |  Z-U0025

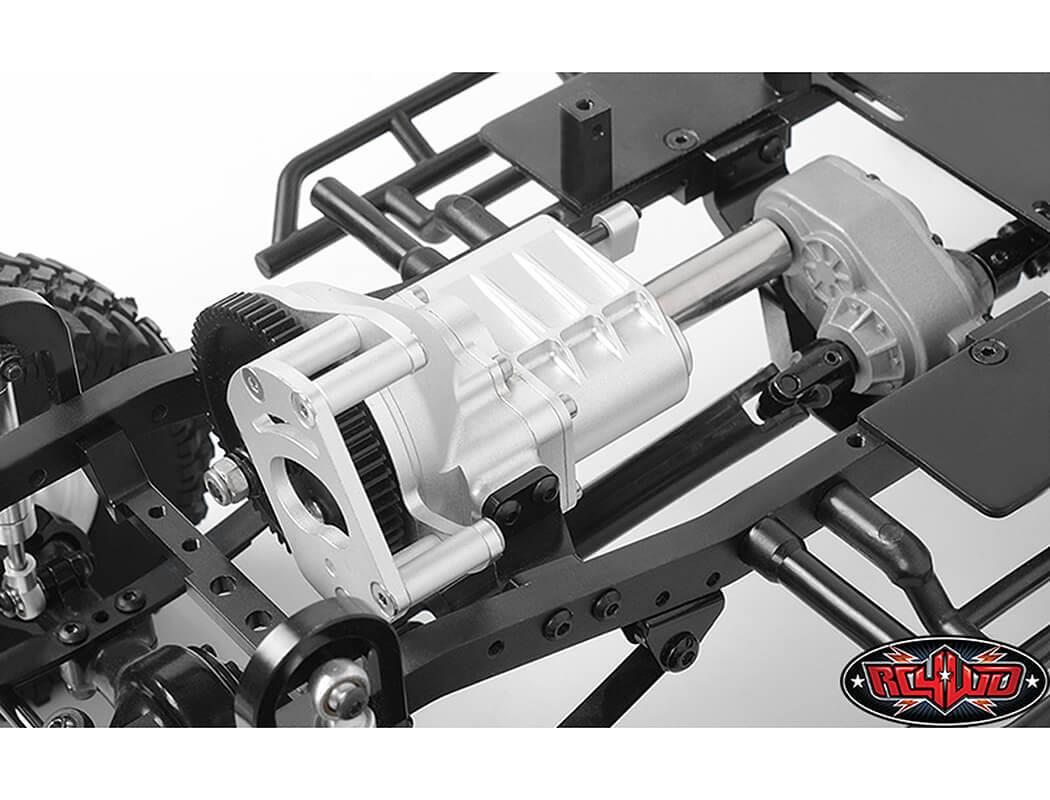

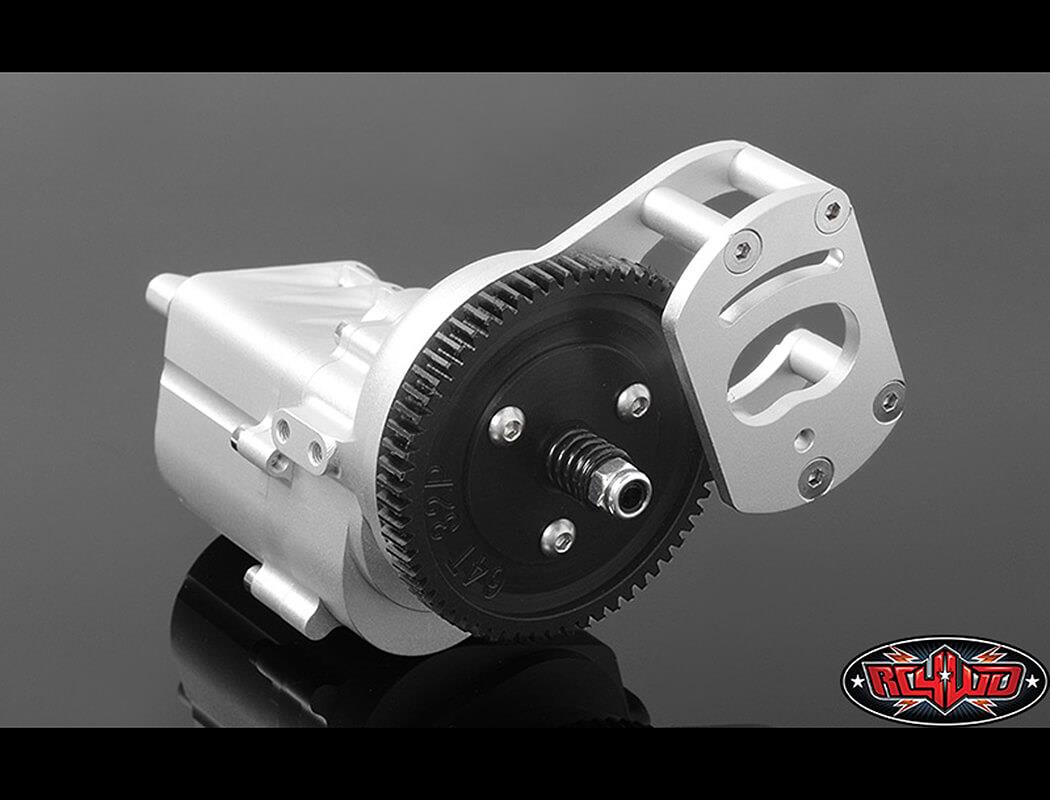

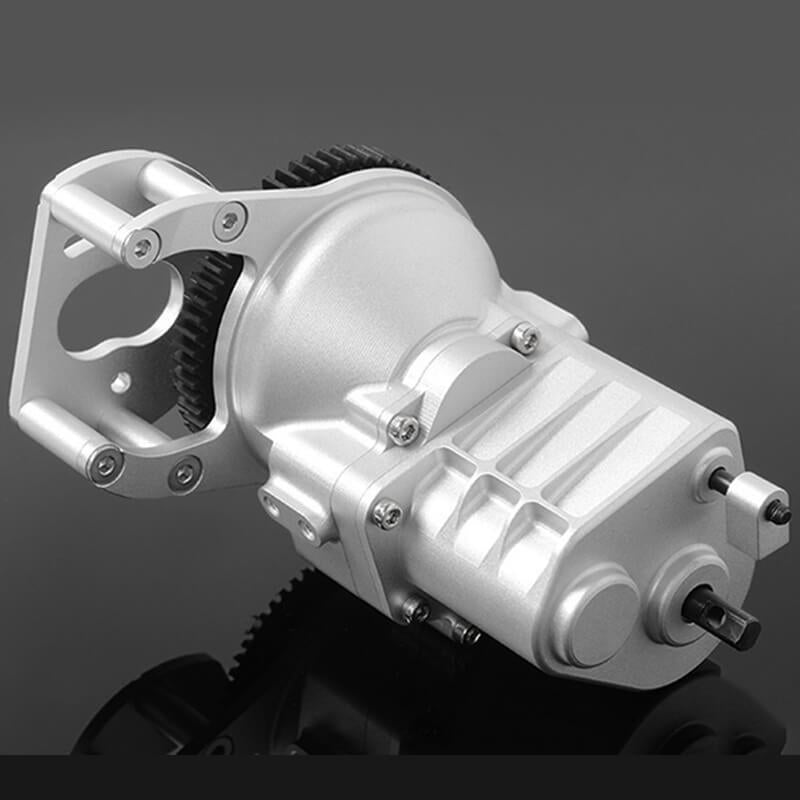

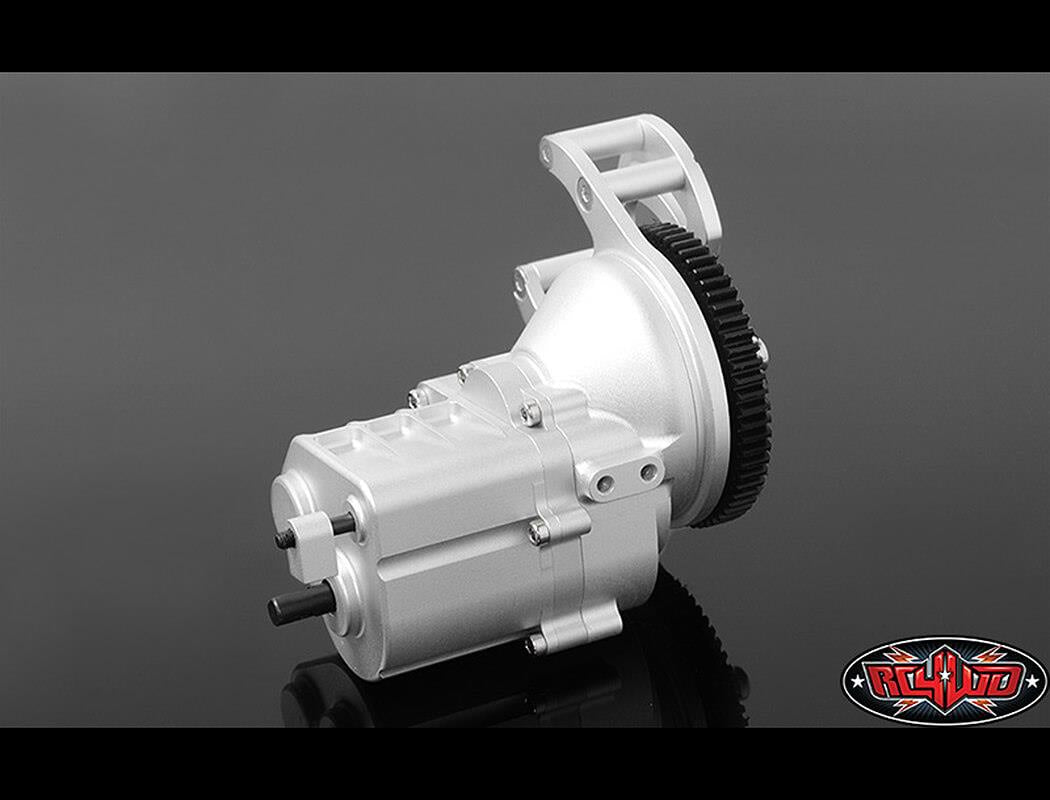

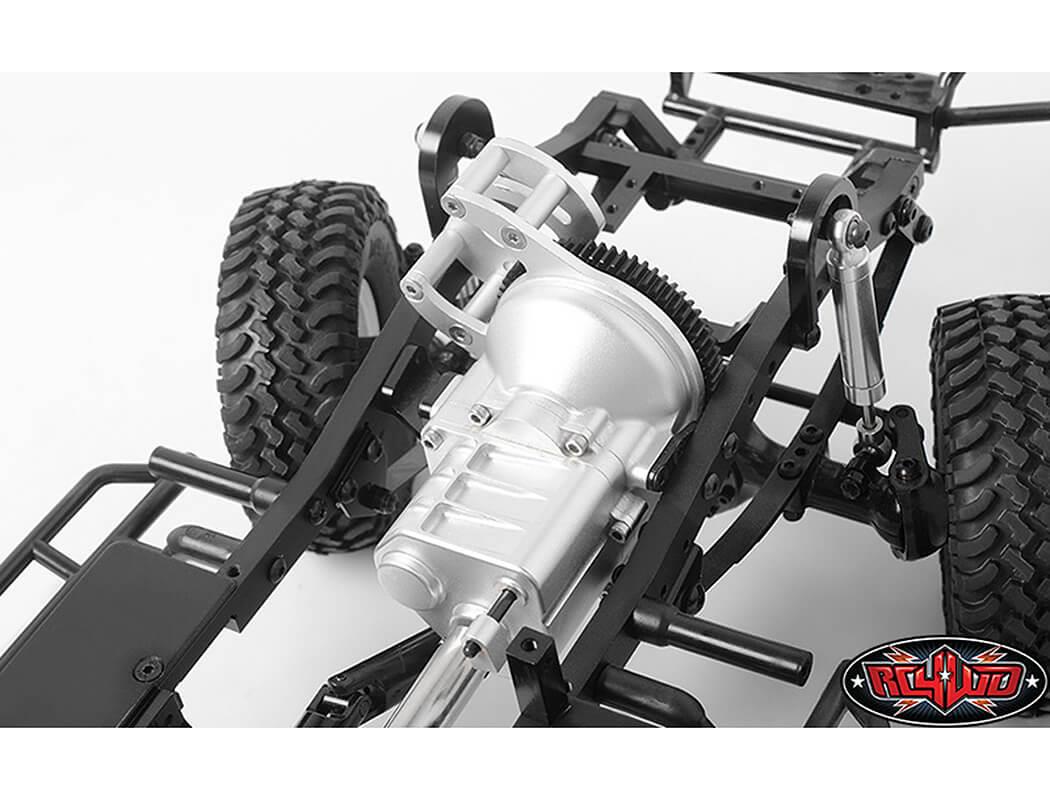

RC4WD R3 SCALE 2 SPEED TRANSMISSION


£145.79
RRP: £161.99
Save £16.20
Home Delivery Available to order

        Allow 1-2 day(s) for order dispatch

Features

  • CNC Machined Billet Aluminum Case
  • Clockable Motor Mounting (10 different positions)
  • 2 Speed
  • Gear Ratios Pinion / Spur 14/64 = 4.57:1
  • 1st gear = 3.47:1
  • 2nd gear = 1.27:1
  • Wide Steel 32 pitch gears
  • Delrin Spur Gear
  • Slipper Clutch Design
  • Changable Gearing Options
  • Compatible With Other Brand Pinions and Spur Gears

Specifications

Output Shaft OD: 0.19" / 5mm
Height: 2.44in / 62mm
Length: 4in / 101.6mm
Width: 2.91in / 74mm
Weight: 9.7oz / 275g

What's Included

  • 1 x R3 Scale 2 Speed Transmission
  • 1 x 14t 32p Hardened Steel Pinion Gear (Z-S0430)
  • 1 x M3 x 3mm Set screw (Z-S0124)

Fits

  • RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)

Required Parts

  • R3 Tranny Mounts For Trail Finder 2 (Z-S0677)
