Reedy Blackbox 850R 1/8Th Competition Esc W/Programmer - As27008

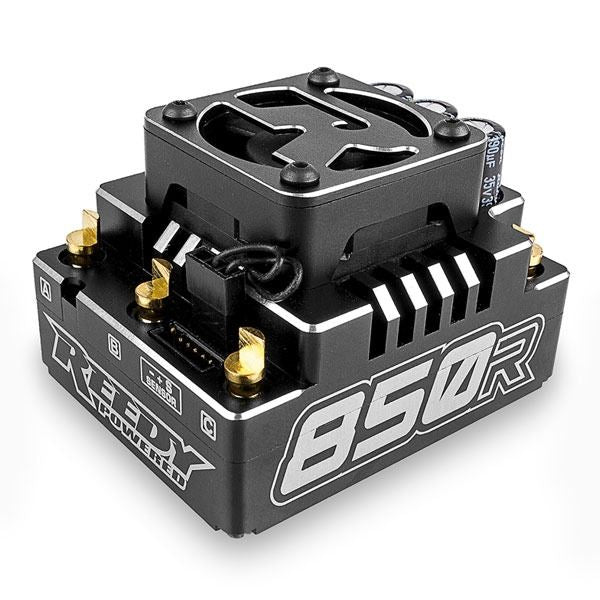

REEDY BLACKBOX 850R 1/8TH COMPETITION ESC W/PROGRAMMER

Reedy's highly anticipated Blackbox 850R Competition 1:8 ESC is now available to racers worldwide! Perfectly suited for 1:8 Buggy and Truggy applications. With the Blackbox PROgrammer2 the full potential of the 850R can be exploited!

Track-tested and competition proven, Reedy's Blackbox 850R is a versatile and powerful ESC capable of winning at the highest levels of competition. A wide range of precision adjustability, excellent throttle and brake feel, and durable high-quality hardware make the Blackbox 850R perfectly suited for 1:8 Buggy and Truggy applications.

The 850R comes pre-programmed with settings that are suitable for most applications and track conditions. But by utilizing the Blackbox PROgrammer2, the full potential of the 850R can be exploited. In addition to working as an ESC programmer, it functions as a battery monitor and USB firmware update device.

The following functions can be modified and saved using the Blackbox PROgrammer2:

Brakes
Overall brake strength, frequency, drag brake, initial brake, and punch can be fine-tuned to the perfect brake performance and feel.

Throttle
Drive frequency, punch control, and dead band adjustability make the ideal setup possible regardless of the type of motor selected and vehicle being raced.

Motor Power
Timing adjustability can be useful on larger tracks or where a slight increase in power and top speed can help experienced racers reduce lap times.

Miscellaneous Control
Select between Forward/Brake or Forward/Brake/Reverse mode and adjust the BEC output voltage depending on the type of servo used and desired servo speed. Adjust the desired low voltage cutoff or disable it completely. The temperature at which the ESC cuts motor power due to overheating can also be adjusted or disabled. Reversing the rotation of the motor is also possible.

Reedy Blackbox 850R Competition 1:8 ESC Features:

• CNC-machined black aluminum case with integrated heat sink
• Fully adjustable brake, throttle, power, and safety functions*
• Precision throttle and brake control
• Ultra-low resistance FET board
• Solder tabs with heavy-duty power wires
• Integrated power capacitors
• 30mm fan
• RPM and ESC temp data logging*
• Firmware updateable*
• *Requires #AS27027 Blackbox PROgrammer2

Spec Check:

• Voltage input: 2S-6S LiPo
• On resistance (mOhms): 0.36
• Continuous current (A): 150
• Dimensions (mm): 56 x 46 x 37
• Weight w/o wires and fan (g): 131
• Motor limit, 4S: 3000kV
• Motor limit, 6S: 2400kV
• BEC: 6.0-7.4V/5A
• Fan: Integrated

Please Note: The Blackbox Programmer2 that was included with our ESC is compatible with the standard firmware installed in your 850R ESC as well as the standard firmware installed in the 510R ESC. If you have purchased your Programmer2 separately, or plan to use one that originally came with a 510R ESC, please confirm that firmware version EE460120 is installed.

Blackbox PROgrammer2
With the PROgrammer2, select between Forward/Brake or Forward/Brake/Reverse mode and adjust the BEC output voltage depending on the type of servo used and desired servo speed. Adjust the desired low voltage cutoff or disable it completely. The temperature at which the ESC cuts motor power due to overheating can also be adjusted or disabled. Reversing the rotation of the motor is also possible. With with the Reedy Blackbox 510R Competition ESC: After months of anticipation, Reedy's highly developed Blackbox 510R Competition ESC is now available to racers worldwide. Extensive race testing by Reedy's engineering and racing team has resulted in a high performance, high quality, and reliable ESC suitable for all levels of competition. Thanks to excellent throttle and brake feel, a wide range of precision adjustability, and durable high-quality hardware, the Blackbox 510R is suitable for a wide range of racing applications.
