Savox  |  SAV-SV0236MG+

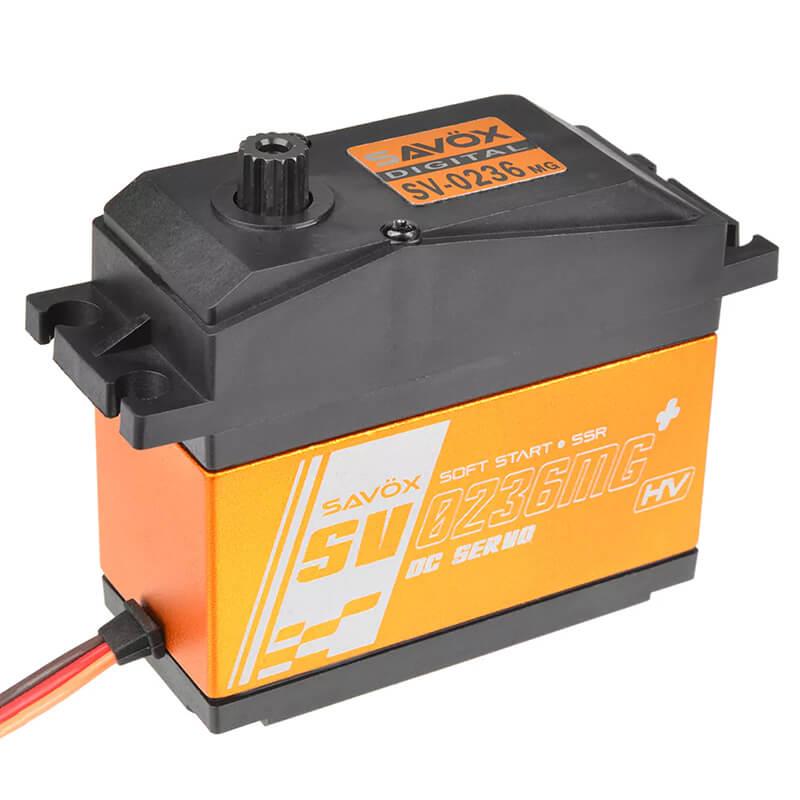

Savox Jumbo Digital Servo 40Kg/0.17S@7.4V - Plus


£62.89
RRP: £67.99
Save £5.10
Notify me when available

Savox jumbo sized servos for all heavy duty applications such as 1/5th scale cars, large boats and aircraft. Built to handle load and power these 7.4v compatible, digital servos feature all steel metal gear train, full ball bearings, heatsink case body and heavy duty horns and mounts.

Savox SV0236MG+ Features:

  • Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears
  • Super light-weight
  • High speed, incredible efficiency, and low power consumption
  • Extremely strong metal steel gears ensure long-life and durability
  • The full aluminum case design not only looks good but also allows for cooler and smoother operating temps
  • Ideal for 5th scale vehicles

Spec Check:

  • Dimensions(mm): 65.8x30x57.4
  • Weight(g): 200
  • Speed(@6.0V sec/60): .21
  • Torque(@6.0V oz-in): 416.6
  • Speed(@7.4V sec/60): .17
  • Torque(@7.4V oz-in): 555.5
  • Gear: Metal
  • Bearing: 2BB
  • Case: Aluminum Middle
  • 15 Tooth Spline
  • Frequency: 250-333hz
  • Pulse Width Frequency: 1520

Savox Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.


Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
