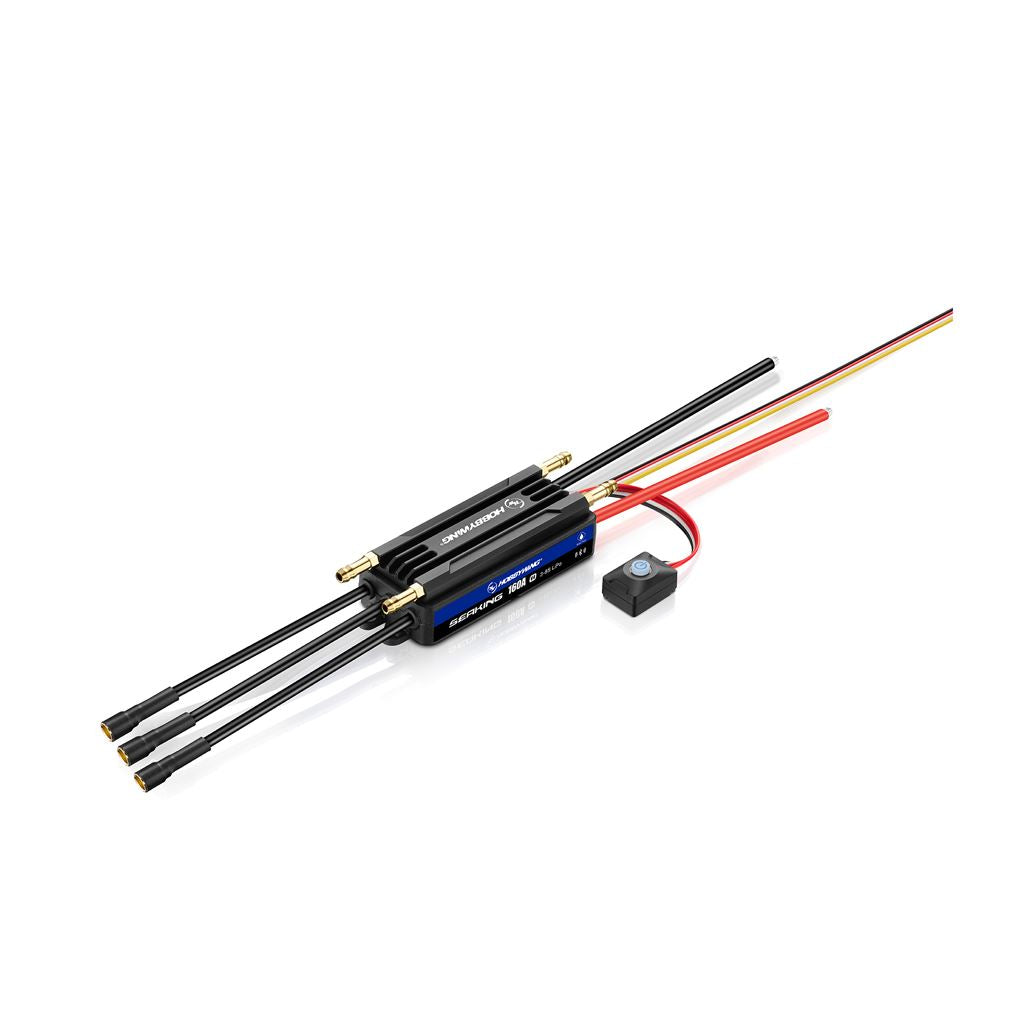

Seaking 160A V4
Save £8.30
Couldn't load pickup availability
High reliability and durability.
Built-in Bluetooth for Connecting the Mobile APP Directly
The ESC features a built-in Bluetooth module, allowing easy connection to a mobile app for parameter settings data reading firmware upgrades all without the need for additional devices, making it incredibly
user-friendly.
Note: Due to transmission distance of bluetooth, the effective distance isonly about 5m!
Built-in Data Logging for Performance Monitoring
The ESC features a built-in Bluetooth module, allowing easy connection to a mobile app for parameter settings, data reading, and firmware upgrades, all without the need for additional devices, making it incredibly user-friendly.
IP67 Fully Waterproof Design
With an IP67 protection rating, this ESC boasts outstanding waterproof and dustproof capabilities. It can be used immediately without any additional waterproofing treatment.
Note: The IP67 rating ensures protection against splashes, water, and dust under normal use. It has been tested under controlled lab conditions according to GB/T
4208-2017 (domestic) and IEC 60529 (international) standards. However, the protection is not permanent and may decrease with wear and aging.
Super Built-in BEC
Maximum continuous current 8A
Maximum instantaneous current 25A
The output voltages are switchable between 6.0V / 7.4V / 8.4V Which can easily drive various powerful servos and high-voltage servos.
Dual-Channel Water Cooling for Lower Temperature
This ESC features a dual-channel water cooling system
Providing enhanced heat dissipation
Ensuring the ESC remains within a safe temperature range during use
Sleek Design for Easier Installation
The SeaKing 160A V4 ESC features a sleek, elongated design that is 15% narrower (7mm slimmer) than its predecessor, the SEAKING 180A V3. This streamlined profile enhances installation convenience, particularly in boats with limited space, offering greater adaptability for professional and recreational applications.
Capacitor Overheating Protection
The capacitor overheating protection helps prevent damage to the ESC caused by capacitor failure due to overloading, safeguarding the unit against complete failure.
Freewheeling Function
When enabled the Freewheeling function ESC temperature is cooler.
When the throttle is released the boat decelerates faster.
Cornering control and handling BETTER.
AUX External Control Channel for Real-time Parameter Adjustment
By connecting the yellow signal wire to an unused receiver channel, you can adjust ESC parameters (like reverse thrust) in real-time using the remote control, adding convenience to parameter management.
Optimized Programmable Parameter
With 11 programmable parameters, the ESC is designed to meet competitive racing needs, offering a wider and more detailed range of settings.
Specification
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Waterproof - Waterproof
Cont./Peak Current - 160A/800A
Input Voltage - 3-8S LiPo
BEC Output - Switch Mode 6V/7.4V/8.4V @8A
Input Wires - Red-10AWG-160mm*1,Black-10AWG-160mm*1
Output Wires - Black-12AWG-150mm*3
Input Connectors - No
Output Connectors - Black-12AWG-150mm*3
Data Recording
Extreme Value - Supported
Real-Time Data - Supported
Historical Data (Graph) - Supported
ESC Programing via
LED Program Box - Not Supported
LCD G2 Program Box - Not Supported
LCD Pro - Not Supported
OTA Programmer - Not Supported
Program Port - Built-in Bluetooth
Firmware
Firmware Upgrade - Supported
Size - 91*41*25.5mm
Weight - 220g(Including wire and output plug)
Applicable Boat - ≤120CM
-
