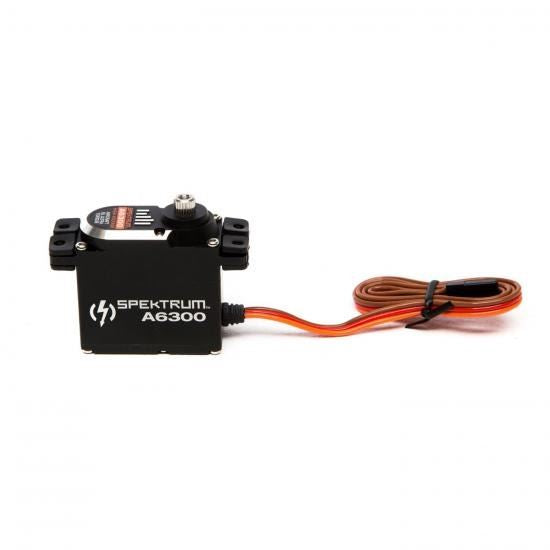

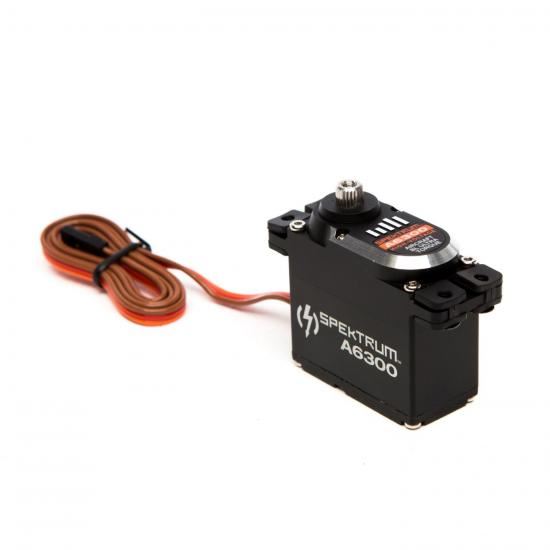

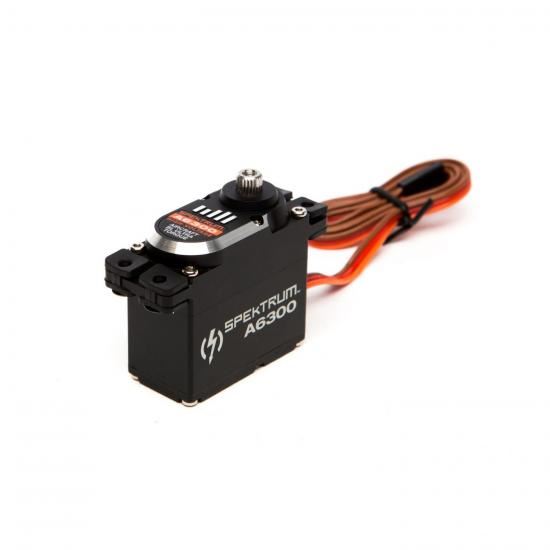

Spektrum A6300 Ultra Torque High Speed Metal BL HV Servo (SPMSA6300)
Save £20
Couldn't load pickup availability
- High Voltage (HV) capable (6.0-8.4v input range)
- Outstanding torque and speed in a standard servo size (530 oz-in and .10 sec/60° @8.4v)
- Durable and long lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Aluminum servo case helps keep operating temperatures low
- Soft start helps prevent component and airframe damage during un-intentional initializations
- Over Current and Temperature protection
- Helpful initialization start tone lets pilot know when the servo is ready
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Frequency : 200hz to 333hz
The A6300 is the first in an evolving line of Spektrum brushless servos that provide leading edge performance with uncompromised reliability. Boasting an extremely powerful 530 oz-in torque and a lightning fast .10 sec/60° transit time @8.4v, the A6300 will make RC enthusiasts take a second look at Spektrum Servos.
The A6300 features a top of the line brushless drive train that is recognized as being exceptionally strong and reliable. This durability is expertly matched with a low wear, all metal gear train that is virtually slop free. All housed in a heatsinking, all-aluminum case with preinstalled eyelets and grommets, which makes mounting these servos quick and easy.
The Spektrum A6300 uses these features as a foundation to produce a powerful, consistent, yet efficient servo that will prove to be in a class of its own. It is these awesome capabilities that make the A6300 a fantastic choice for giant-scale models, 3D aerobatics, jets or any application where massive amounts of torques and holding power are a must.
Spektrum A6300 HV Ultra Torque Brushless Aircraft Servo MG Specfications:
- Application: Airplane
- Bearing: Dual
- Bushing Or Bearing: Bearing
- Connector Type: Z-Connector
- Connector Wire Gauge: 22 AWG
- Connector Wire Length: 18 in (457mm)
- Deadband: <1ms
- Gear Material: Metal
- Gear Type: Metal
- Height: 1.49 in (37.8mm)
- Input Voltage: 6.0-8.4V
- Length: 1.57 in (40mm)
- Motor Type: Brushless
- Servo Operating Voltage: 6.0-8.4V (High Voltage)
- Servo Type: Digital
- Speed: 0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V
- Spline Count: 23 Teeth
- Torque: 378.37 oz-in (27.26 kg-cm) @ 6.0V; 467.06 oz-in (33.65 kg-cm) @ 7.4V; 530.22 oz-in (38.20 kg-cm) @ 8.4V
- Type: A6300 Hi Voltage Ultra Torque Brushless Metal Gear Aircraft Servo
- Weight: 2.81 oz (79.80 g)
- Width: 0.79 in (20mm)
-
