SRT  |  SRTBH9037

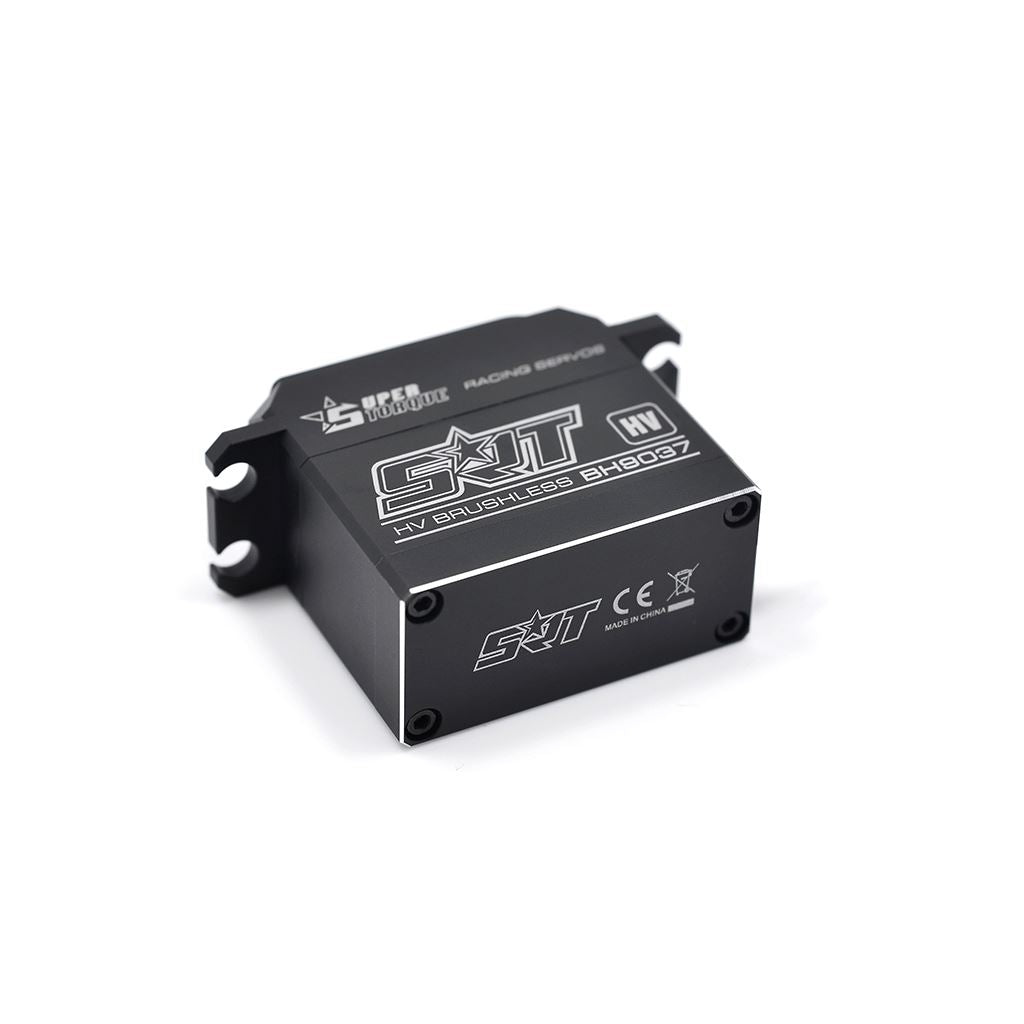

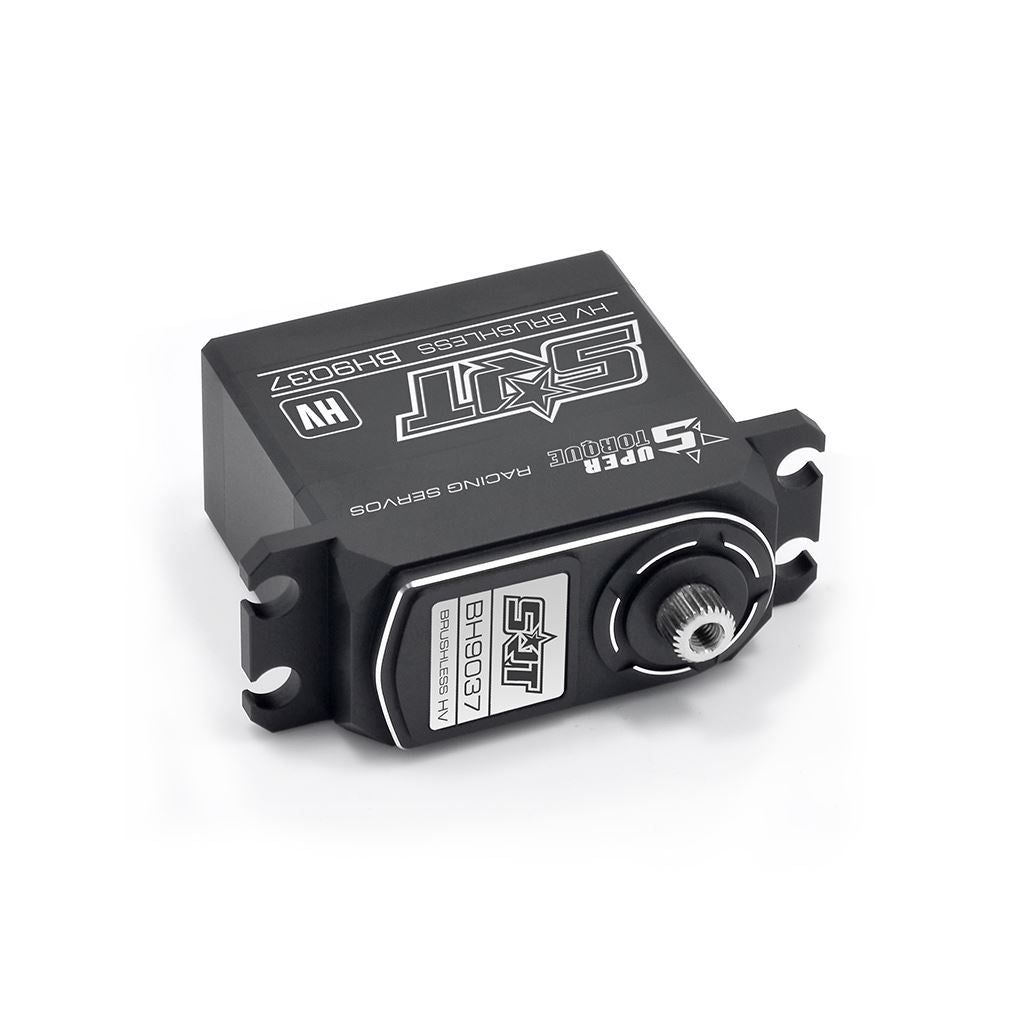

Srt 1/5 On-Road Hv Brushless Servo


£101.69
RRP: £109.99
Save £8.30
Notify me when available
Description
KEY FEATURES

- Superior Holding Torque
- Incredible efficiency and low power consumption
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo

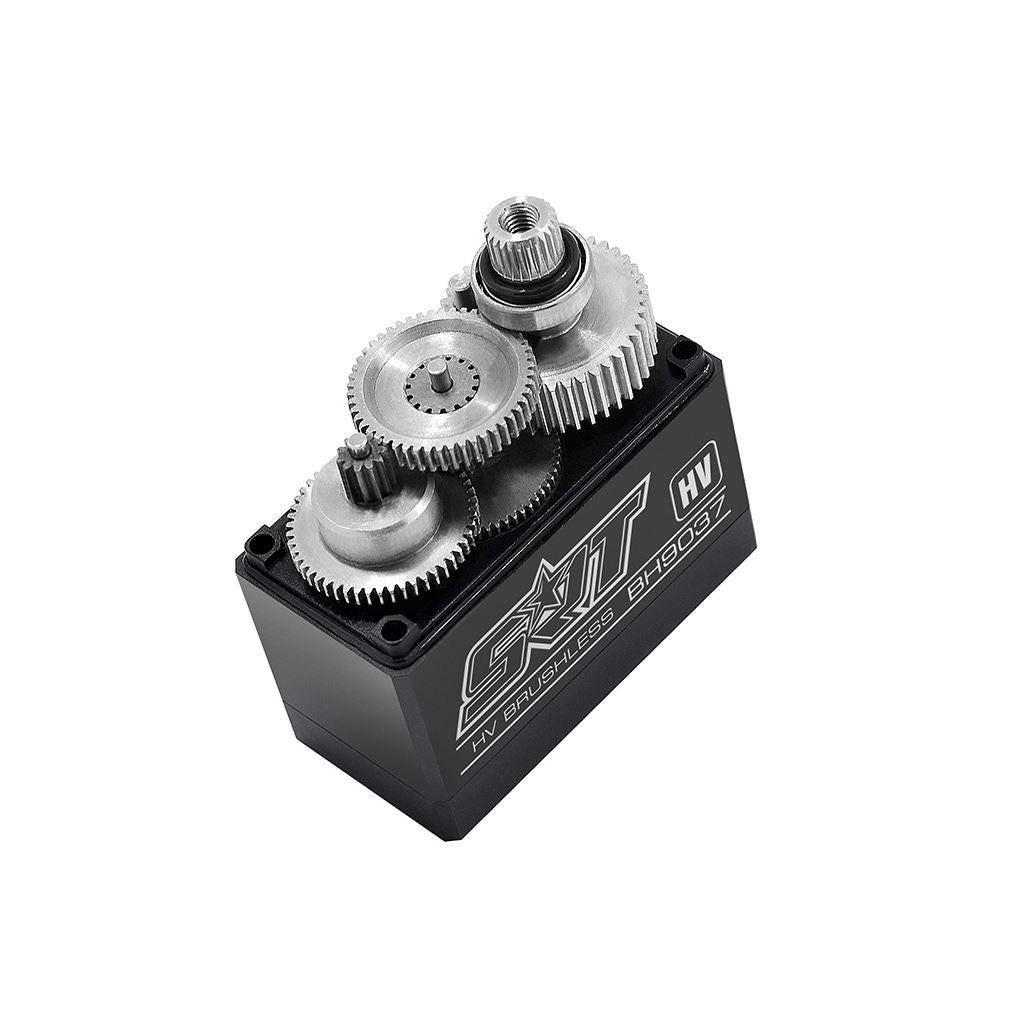

- Titanium & Steel gears for precision and durability
- CNC Machined aluminum case for exceptional cooling
- NMB dual main bearings
- 25T output shaft
- HD 4096 Resolution
- 2 μsec Dead Band
- 1-Year Limited Warranty

Application :

1/5 Nitro Touring
1/5 Nitro Buggy

PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.14 sec/60 degrees at no load
operating speed (8.4v): 0.13 sec/60 degrees at no load
stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
stall torque (7.4v): 35.0kg.cm (486.0 oz/in)
stall torque (8.4v): 37.0kg.cm (513.8 oz/in)
potentiometer drive: direct drive

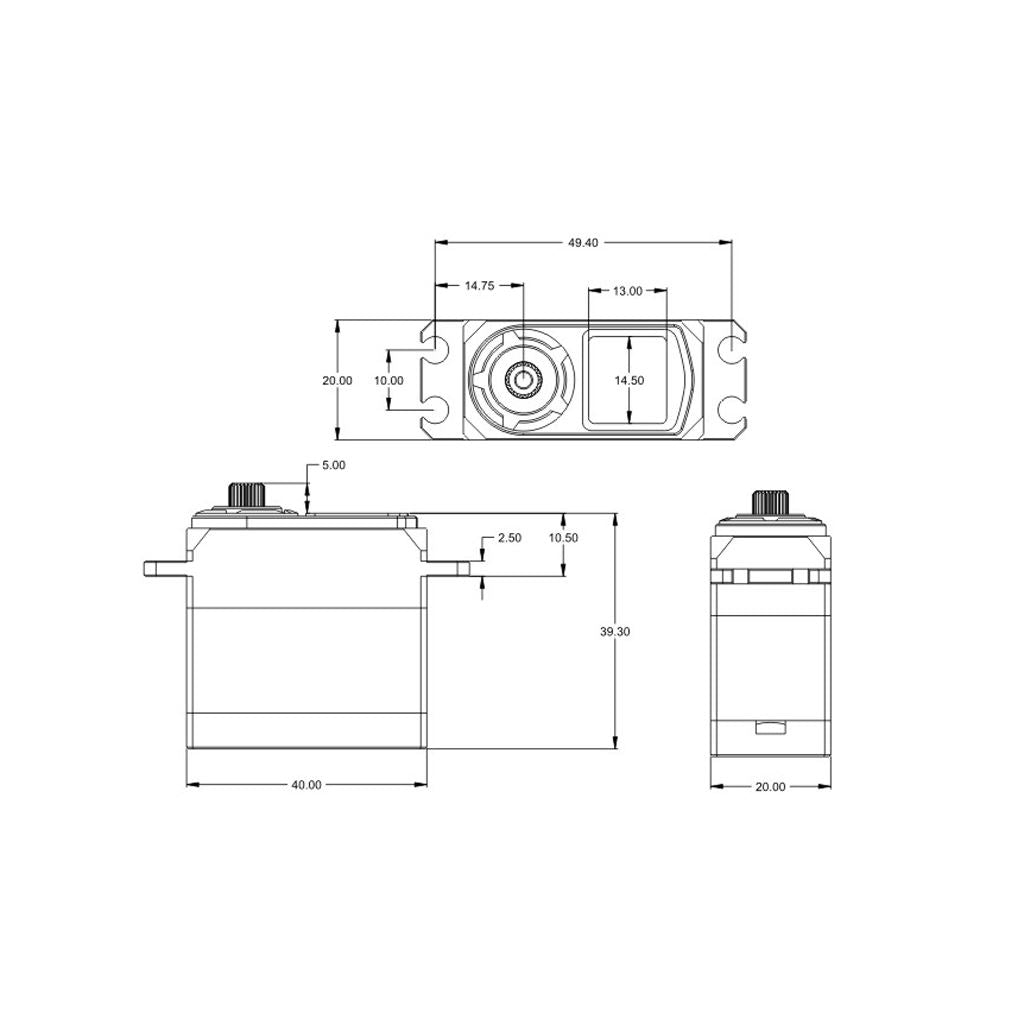

dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
weight: 80.0g (2.82 oz)
connector wire length: jr 300 mm
