SRT  |  SRTBHX6

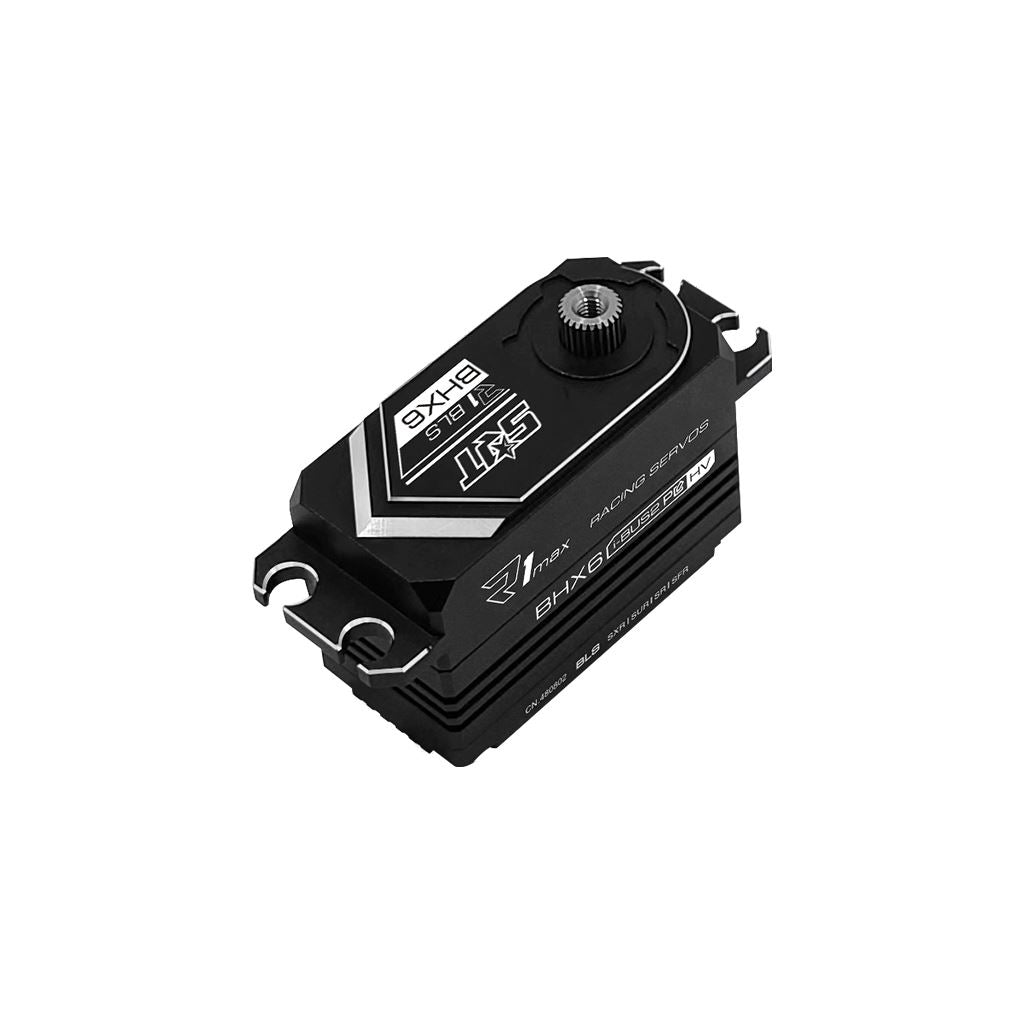

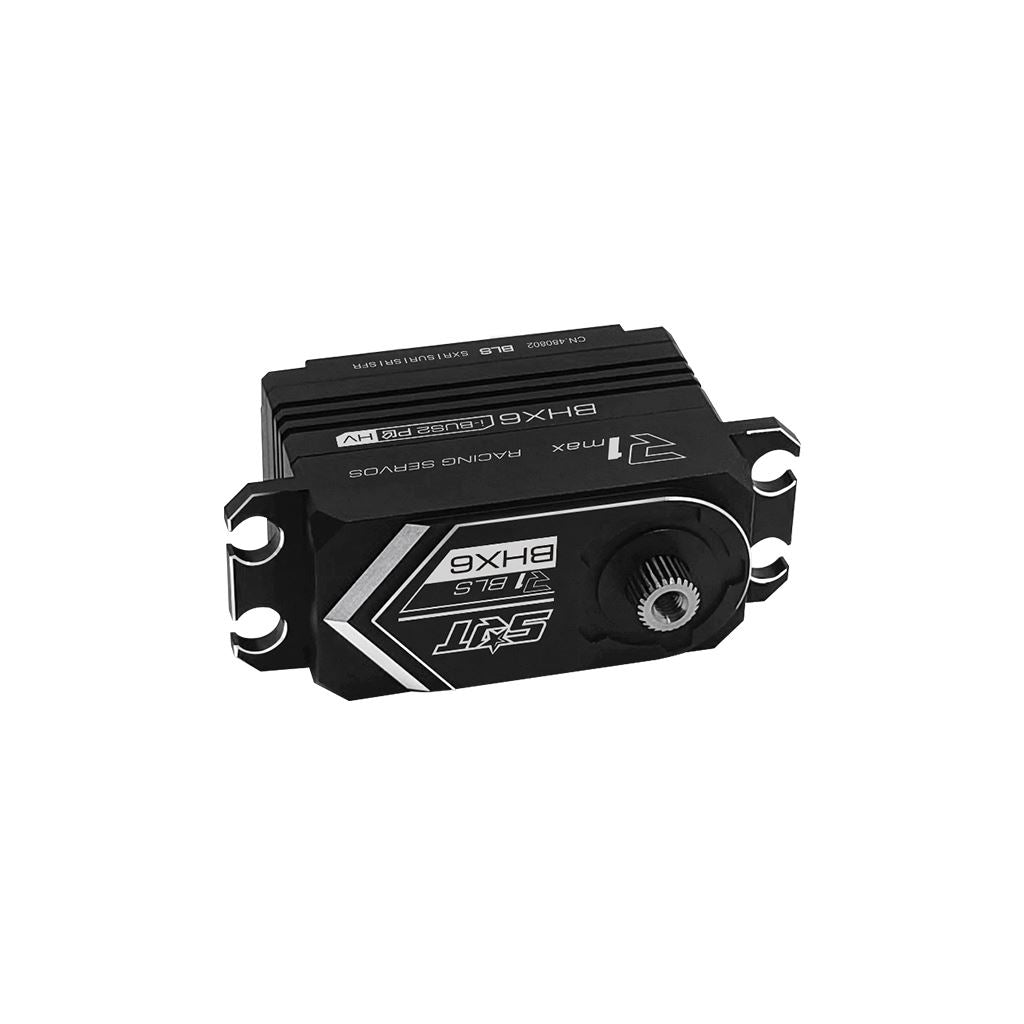

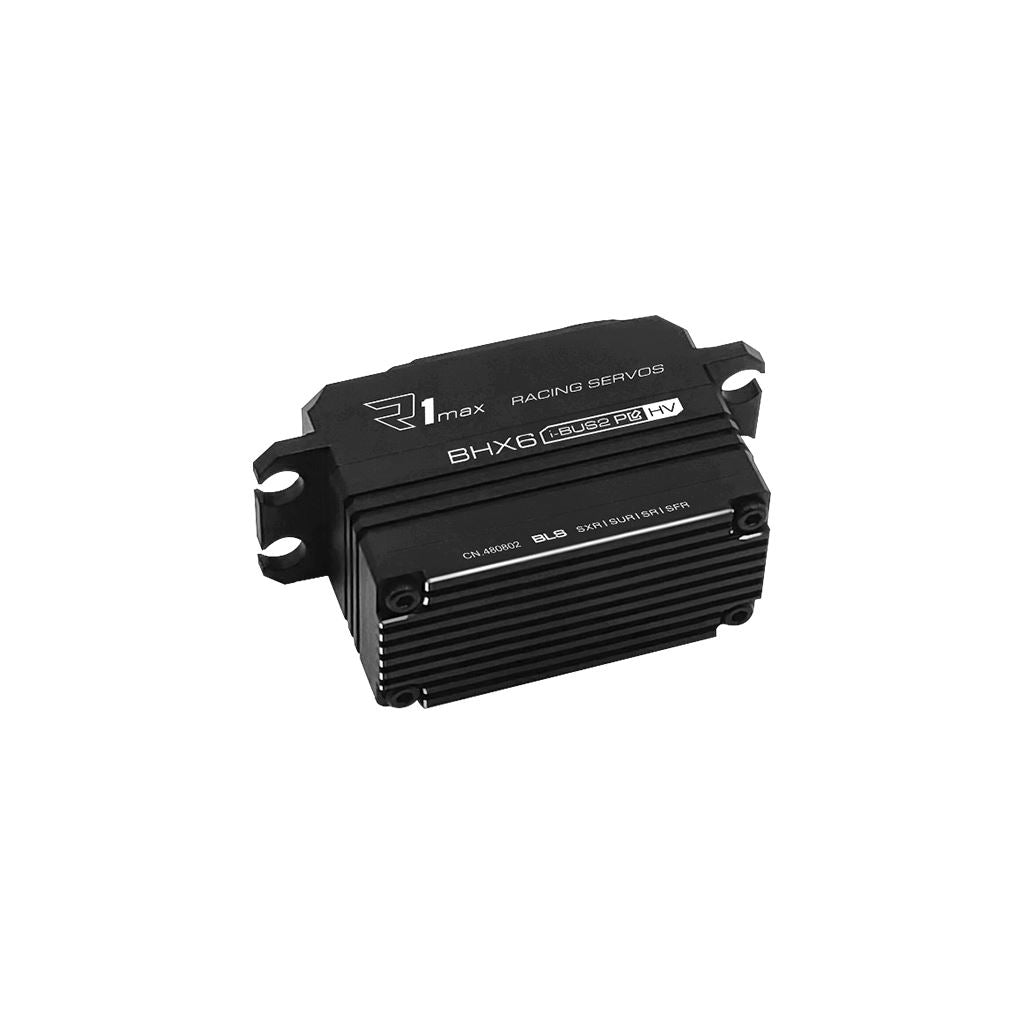

Srt Bhx6 Hv Brushless Servo


£109.09
RRP: £117.99
Save £8.90
Notify me when available
Description
KEY FEATURES

- Superior Holding Torque
- Incredible efficiency and low power consumption
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- Programmable High torque Brushless servo
- Supporting SXR, SUR, SR, SFR multiple ultra high speed modes
- 25T output shaft
- 2 μsec Dead Band
- 1-Year Limited Warranty

Application :
1/10 2WD Electric Buggy
1/10 4WD Electric Buggy
1/10 Nitro Touring
1/8 Electric GP
1/8 Nitro GP>

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.08 sec/60 degrees at no load
operating speed (7.4v): 0.065 sec/60 degrees at no load
operating speed (8.4v): 0.053 sec/60 degrees at no load
stall torque (6.0v): 25.0kg.cm (347.2 oz/in)
stall torque (7.4v): 30.0kg.cm (416.6 oz/in)
stall torque (8.4v): 35.0kg.cm (486.1 oz/in)
potentiometer drive: direct drive

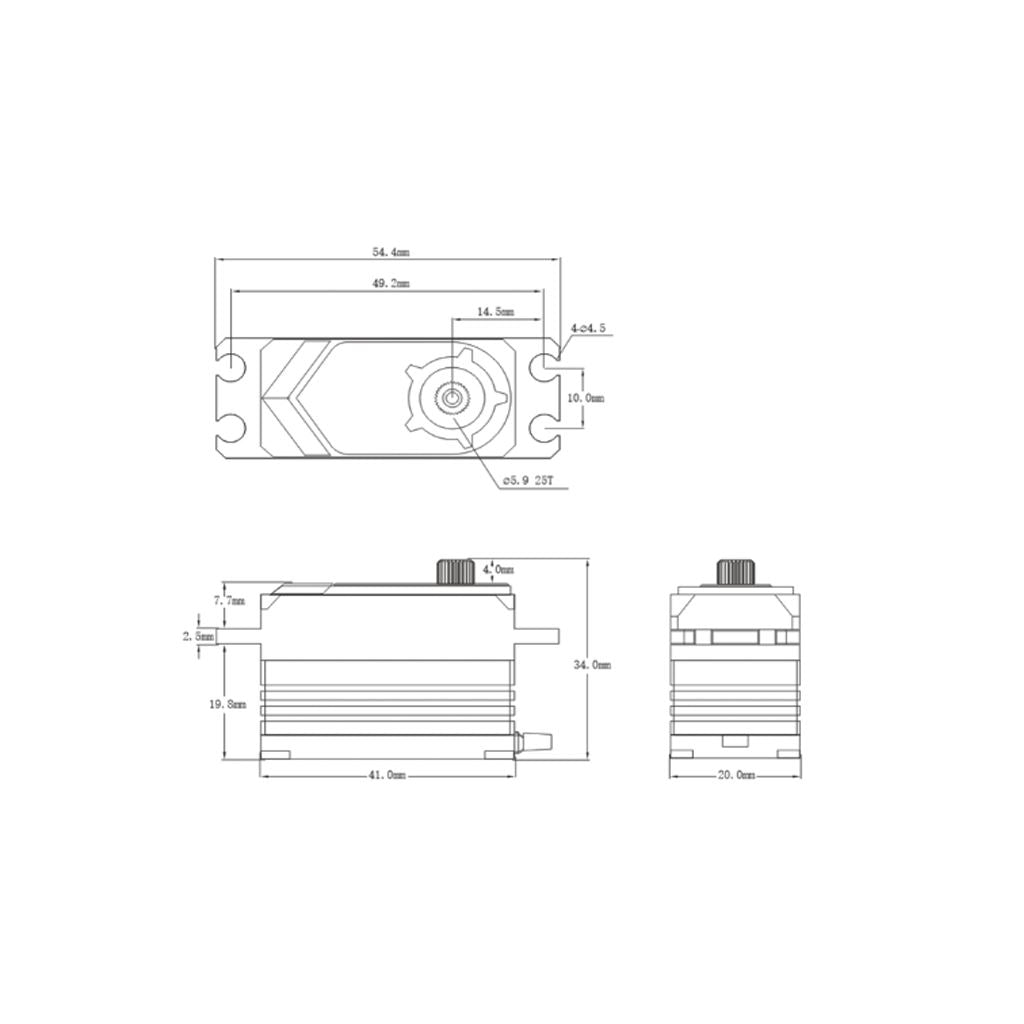

dimensions: 41.0 x 20.0 x 30.0 mm /1.61 x 0.79 x 1.18 in
weight: 66.0g (2.33 oz)
connector wire length: jr 300 mm
