SRT  |  SRTCH6012

Srt Ch6012 1/10 Scale On-Road Hv Servo


£44.39
RRP: £47.99
Save £3.60
Home Delivery Available to order

        Allow 1-2 day(s) for order dispatch

Description
KEY FEATURES

- Ideal for 1/10 on road scale applications
- Incredible efficiency and low power consumption
- 2 μsec Dead Band
- 1-Year Limited Warranty

Application :
1/10 Electric Touring
1/10 Drift
Formula One

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless

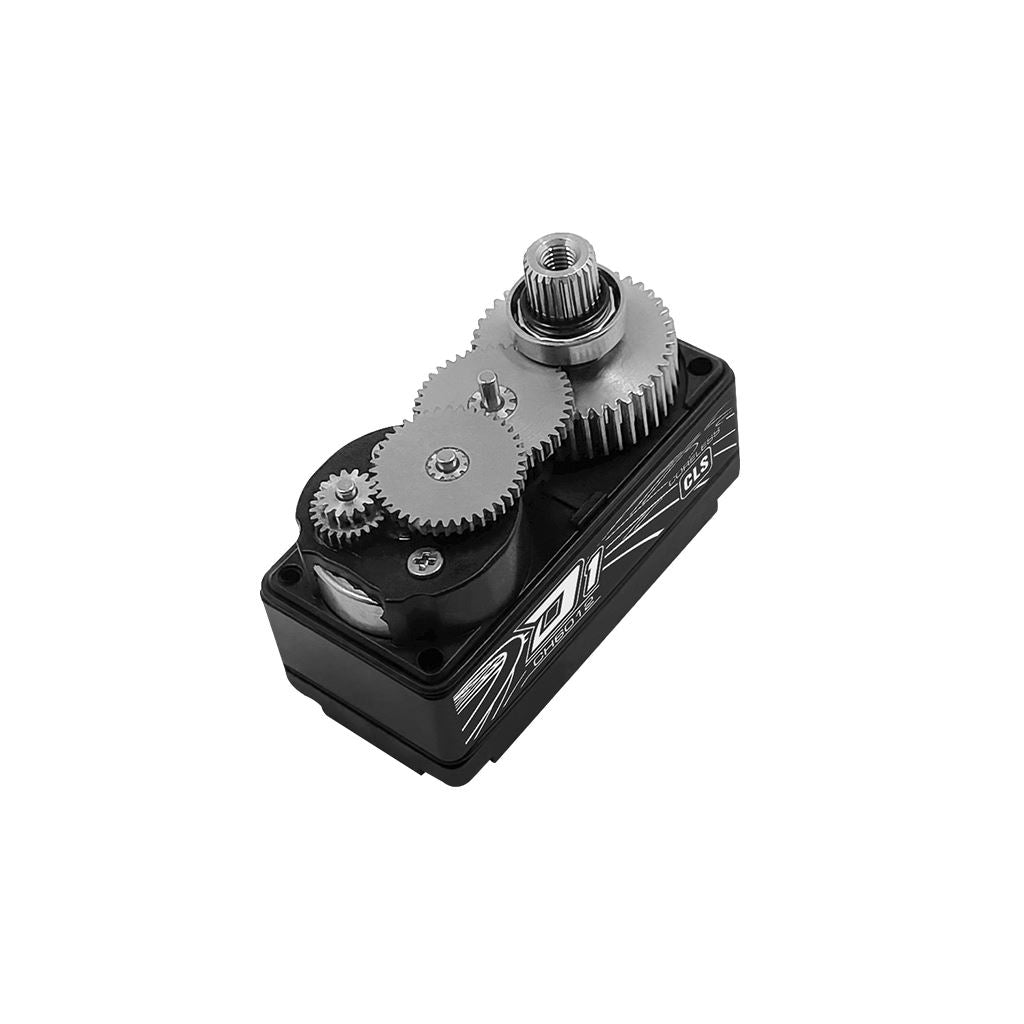

Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-7.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.07 sec/60 degrees at no load
operating speed (7.4v): 0.06 sec/60 degrees at no load
stall torque (6.0v): 9.0kg.cm (125.0 oz/in)
stall torque (7.4v): 12.0kg.cm (166.6 oz/in)
potentiometer drive: direct drive

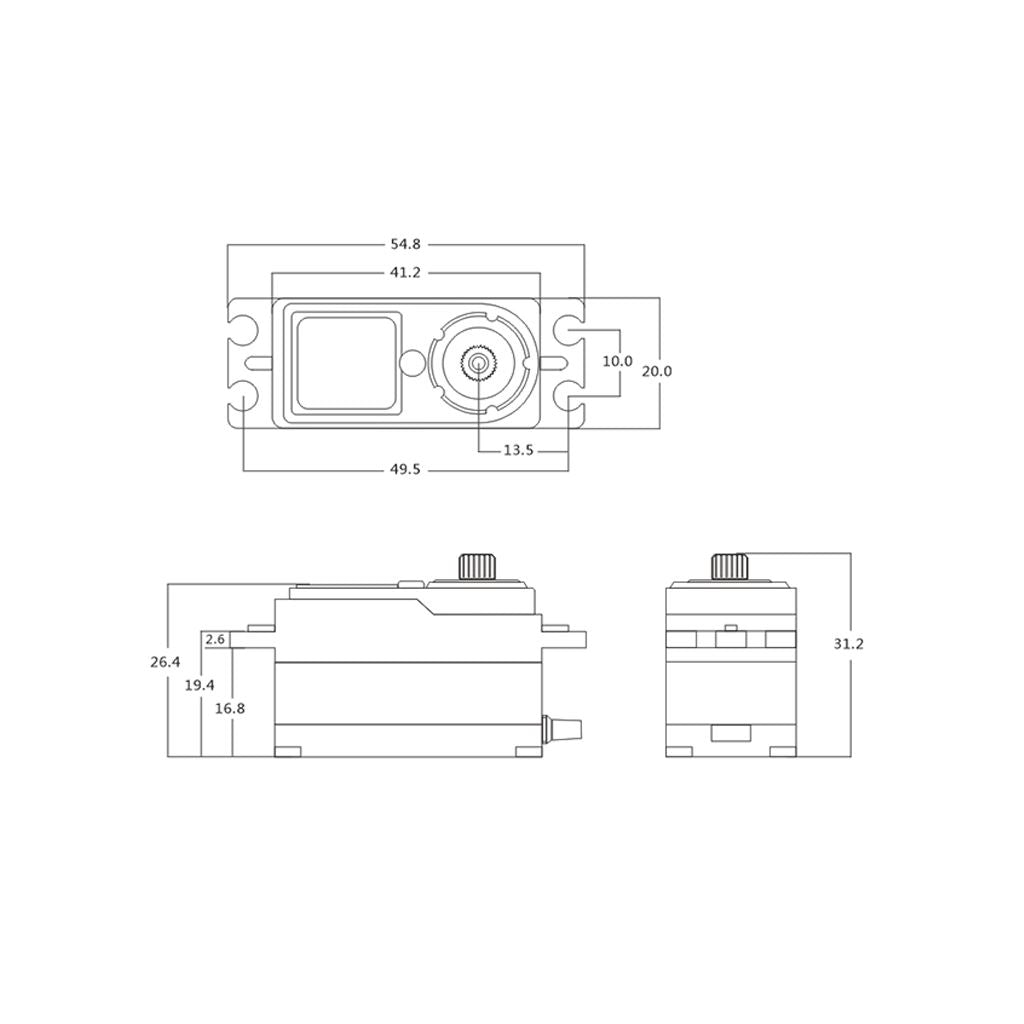

dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 48.0g (1.69 oz)
connector wire length: jr 110 mm
