SRT  |  SRTCH635S

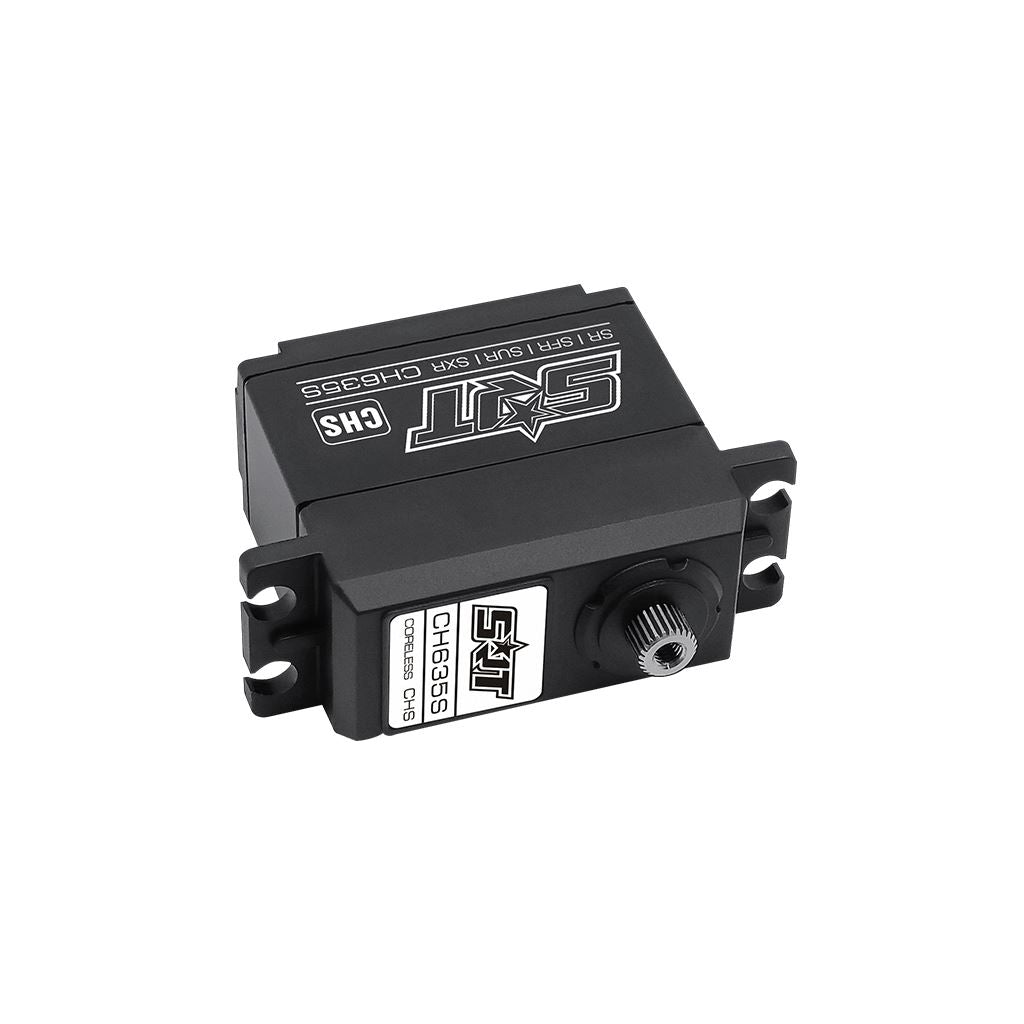

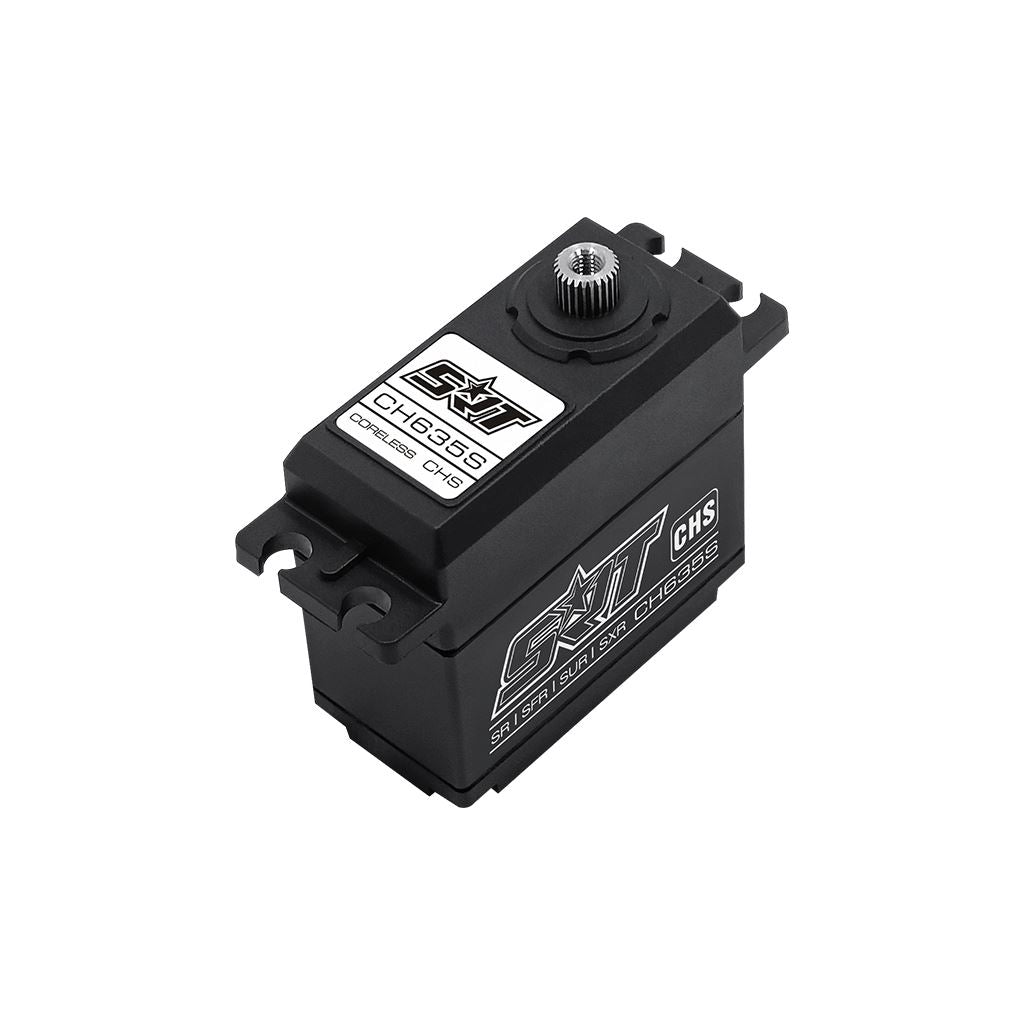

Srt Ch635S 1/5 Scale Or Hv Coreless Servo


£49.89
RRP: £53.99
Save £4.10
Notify me when available
Description
KEY FEATURES

- Incredible efficiency and low power consumption
- Supporting SR, SFR, SUR, SXR multiple ultra high speed modes
- 2 μsec Dead Band
- 1-Year Limited Warranty

Application :

1/10 Crawler

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal

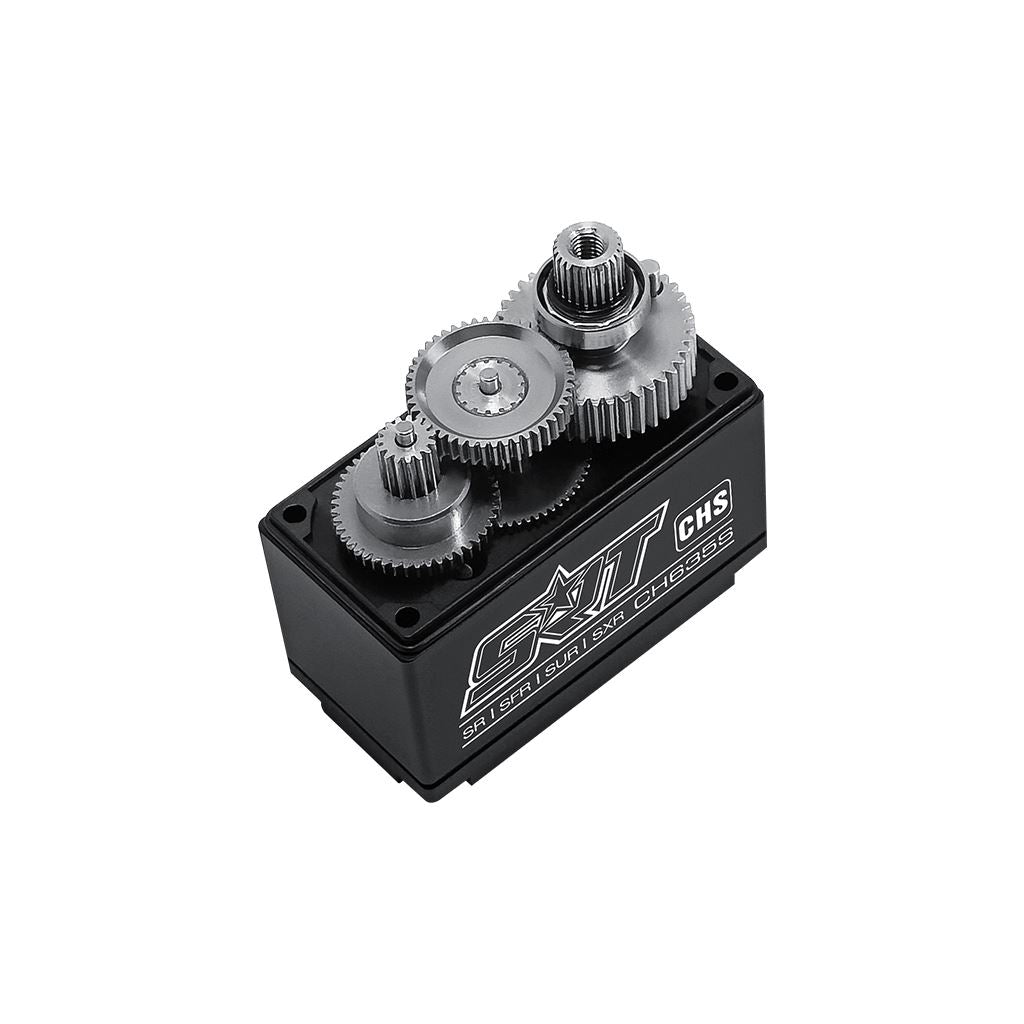

Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.15 sec/60 degrees at no load
operating speed (8.4v): 0.14 sec/60 degrees at no load
stall torque (6.0v): 30.0kg.cm (416.6 oz/in)
stall torque (7.4v): 32.0kg.cm (444.4 oz/in)
stall torque (8.4v): 35.0kg.cm (486.1 oz/in)
potentiometer drive: direct drive

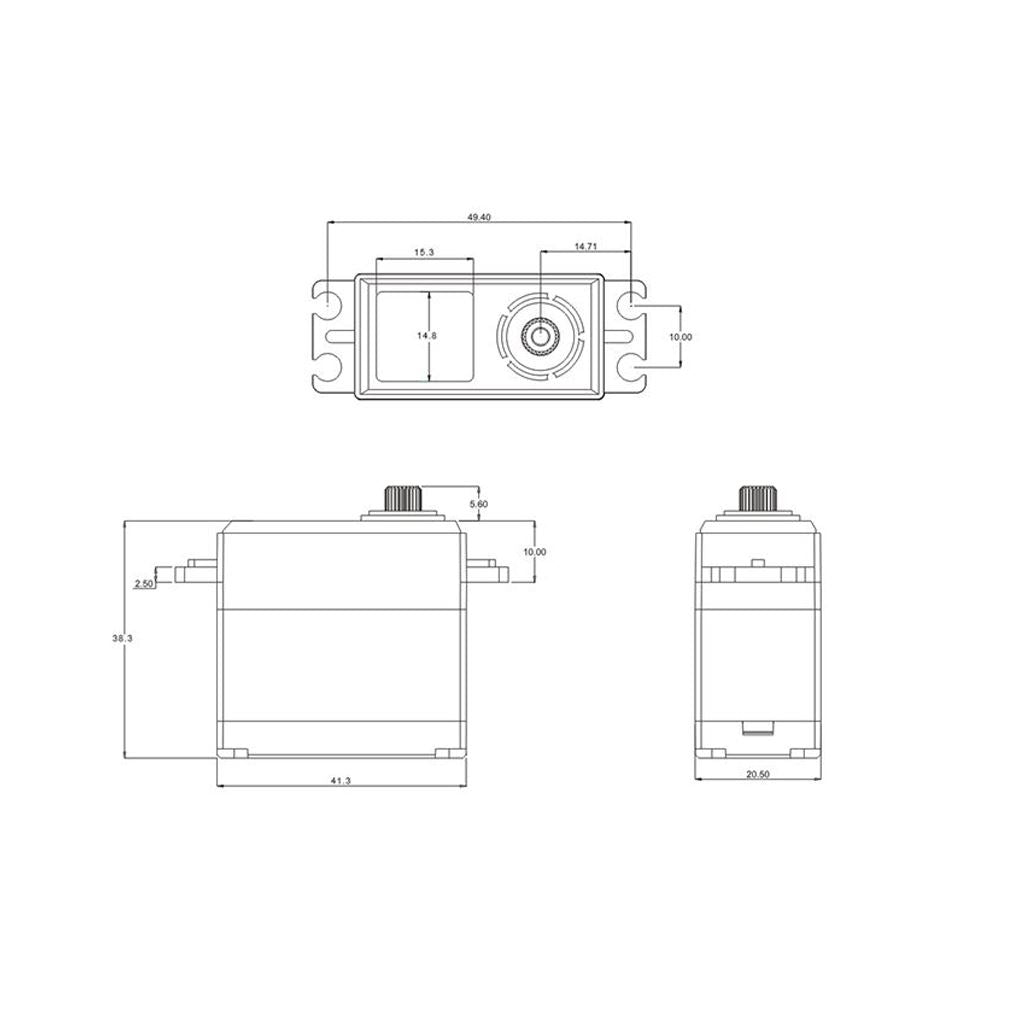

dimensions: 41.3x20.5x38.3 mm /1.63x0.81x1.51 in
weight: 69.0g (2.43 oz)
connector wire length: jr 300 mm
