SRT  |  SRTCH7012

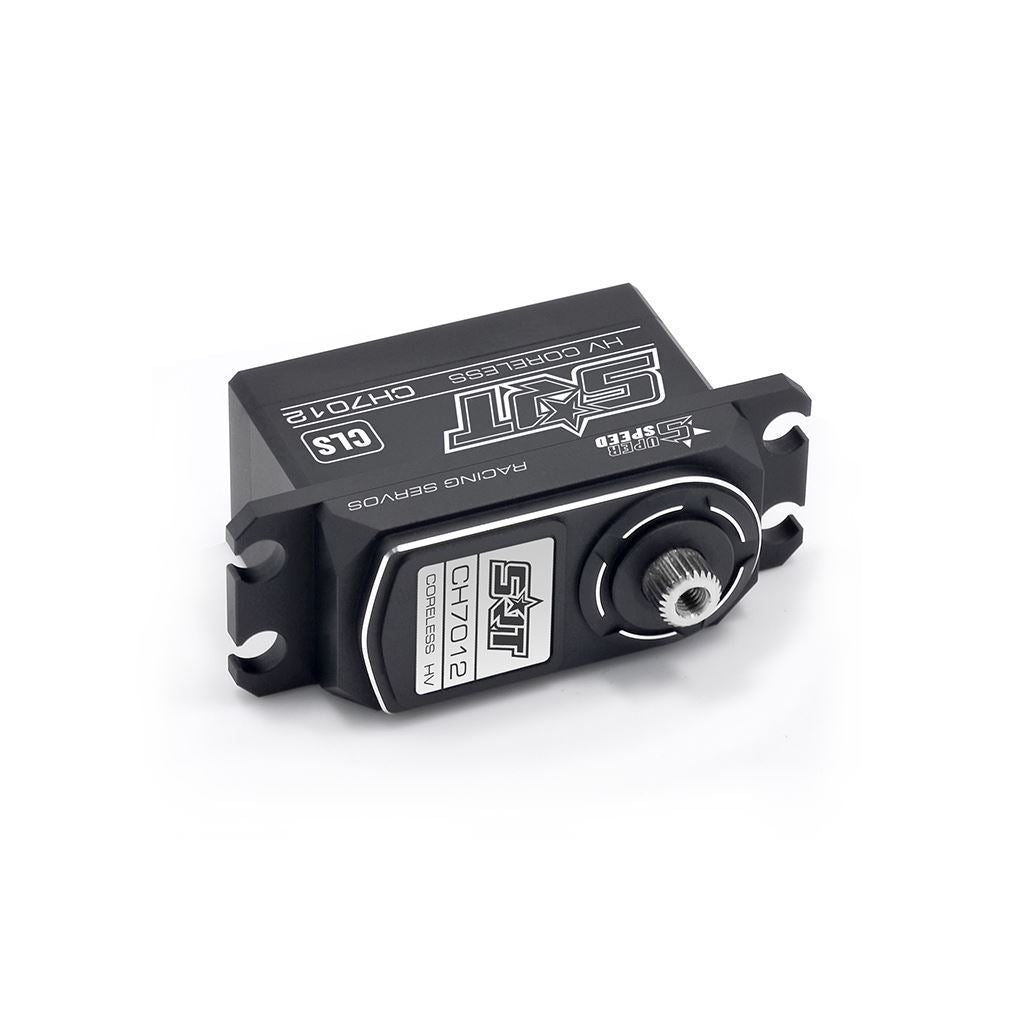

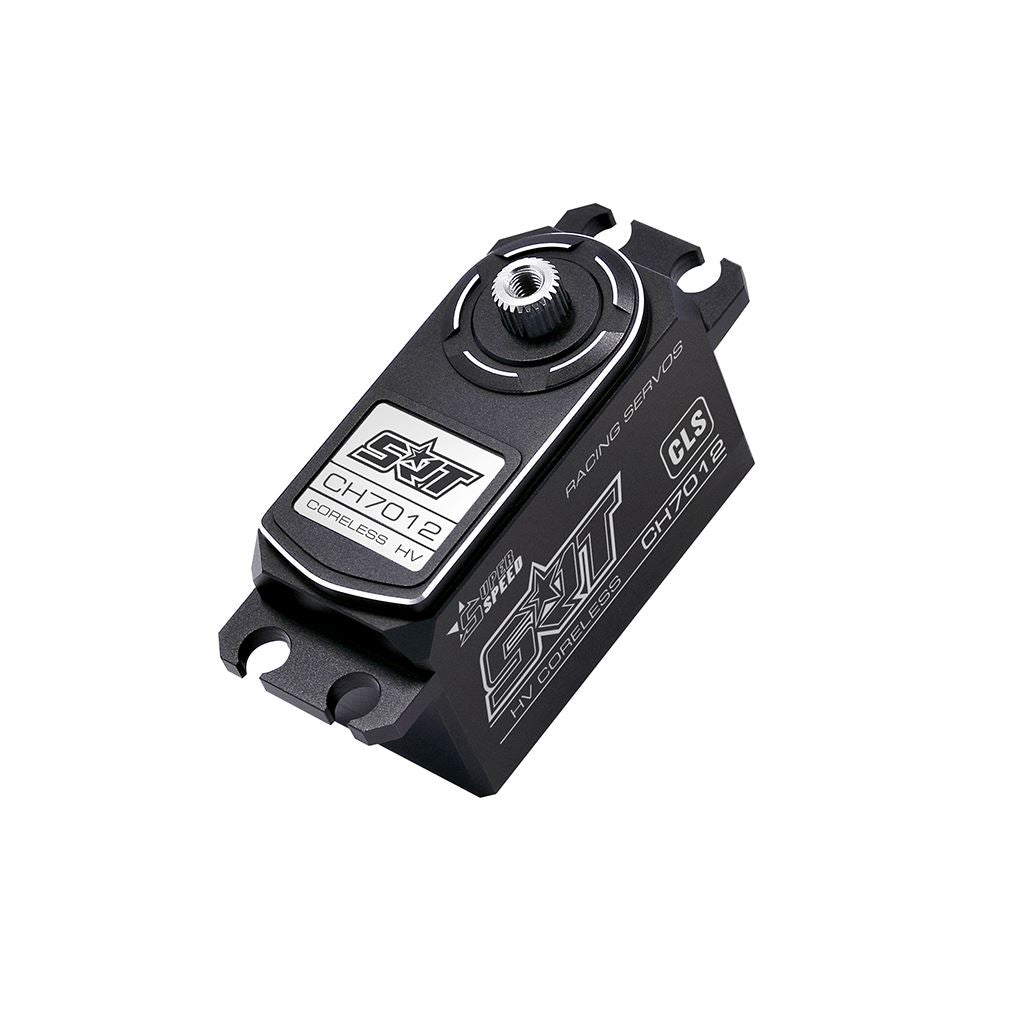

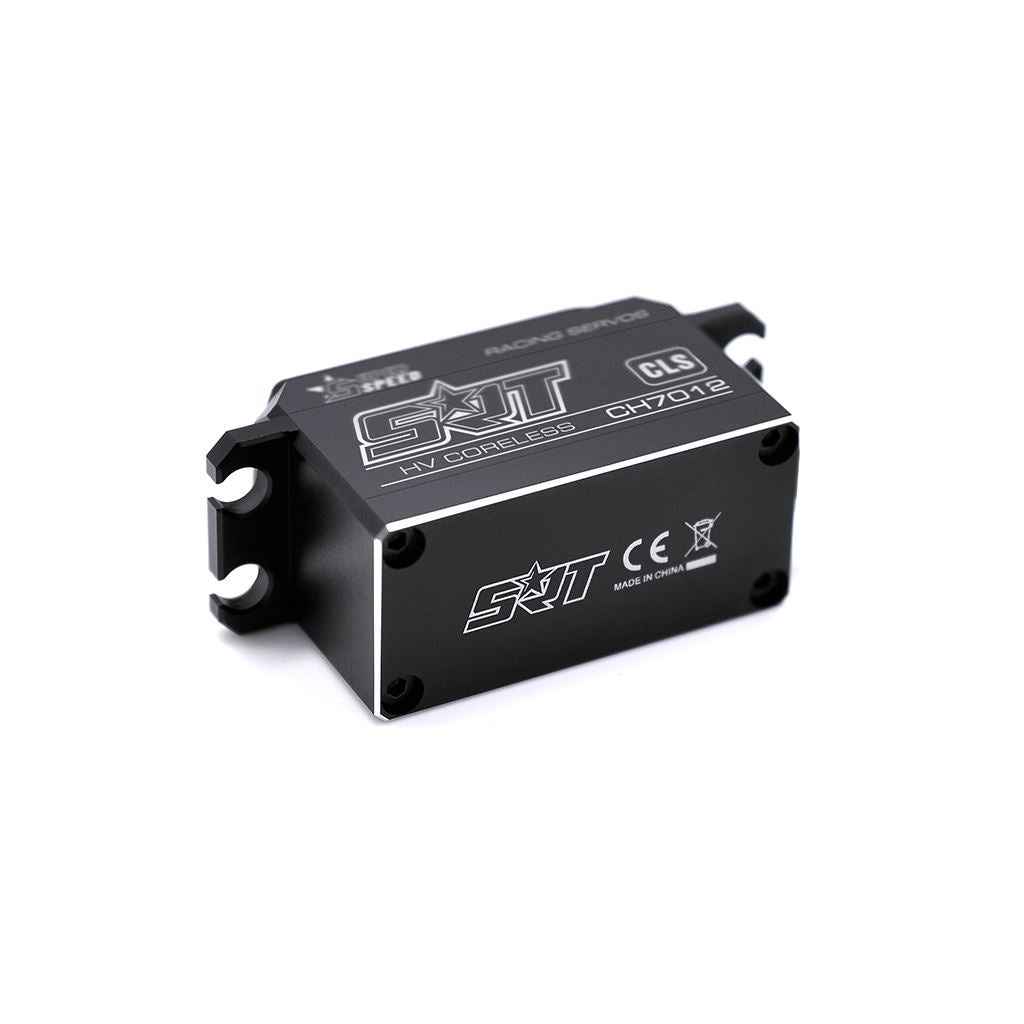

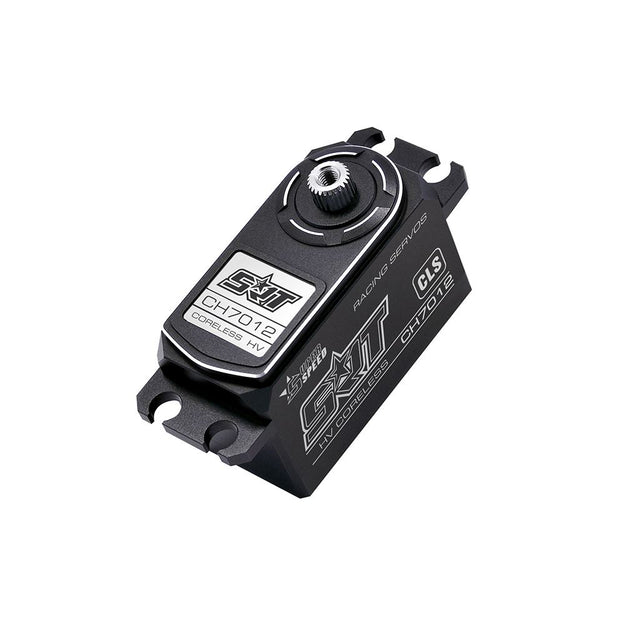

Srt Ch7012 1/10 Scale On-Road Hv Servo


£73.09
RRP: £78.99
Save £5.90
Home Delivery Available to order

        Allow 1-2 day(s) for order dispatch

Description
KEY FEATURES

- Incredible efficiency and low power consumption
- Titanium & Alu gears for precision and durability
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- HD 4096 Resolution
- 2 μsec Dead Band
- Superior Holding Torque
- 1-Year Limited Warranty

Application :
1/10 Electric Touring
Formula One

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.07 sec/60 degrees at no load
operating speed (7.4v): 0.06 sec/60 degrees at no load
operating speed (8.4v): 0.057 sec/60 degrees at no load
stall torque (6.0v): 9.0kg.cm (124.9 oz/in)
stall torque (7.4v): 11.0kg.cm (152.8 oz/in)
stall torque (8.4v): 12.0kg.cm (166.6 oz/in)
potentiometer drive: direct drive
dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 52.0g (1.83 oz)
connector wire length: jr 180 mm
