SRT  |  SRTD1S

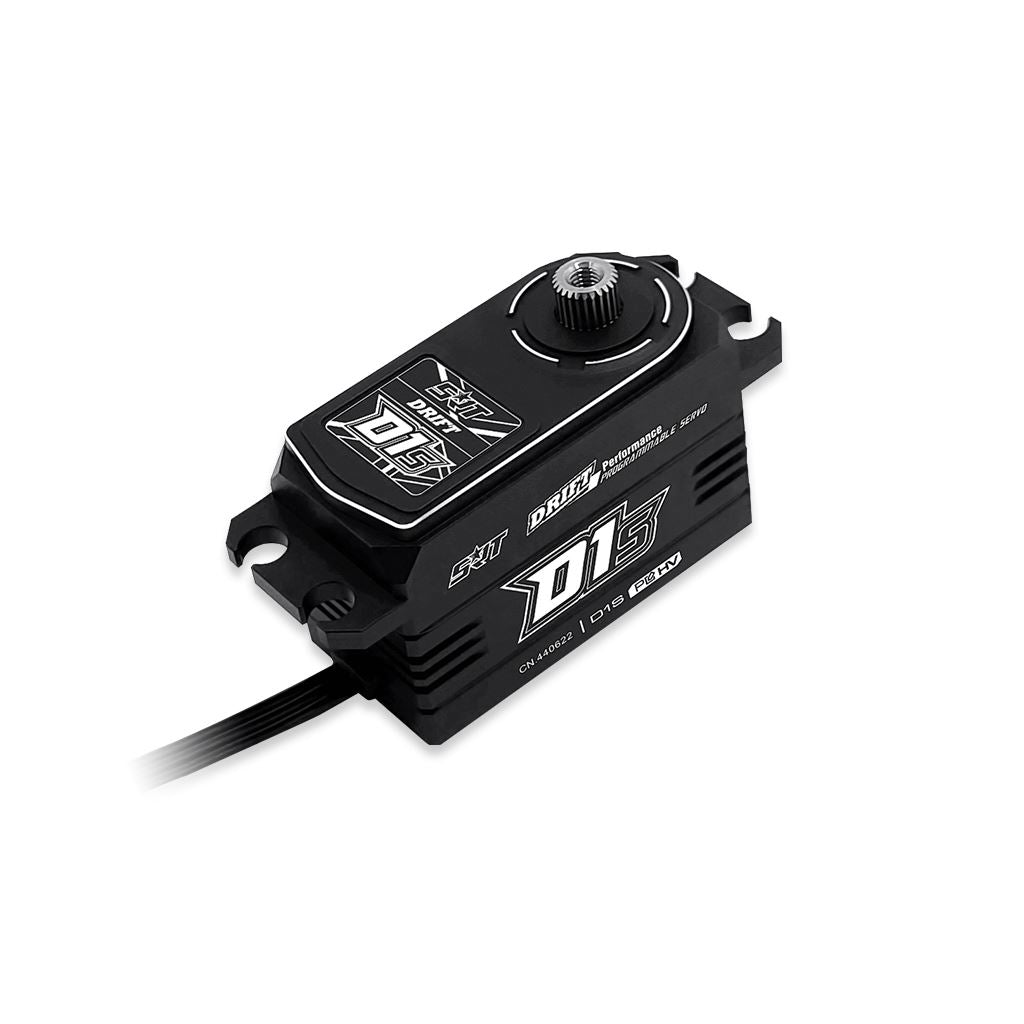

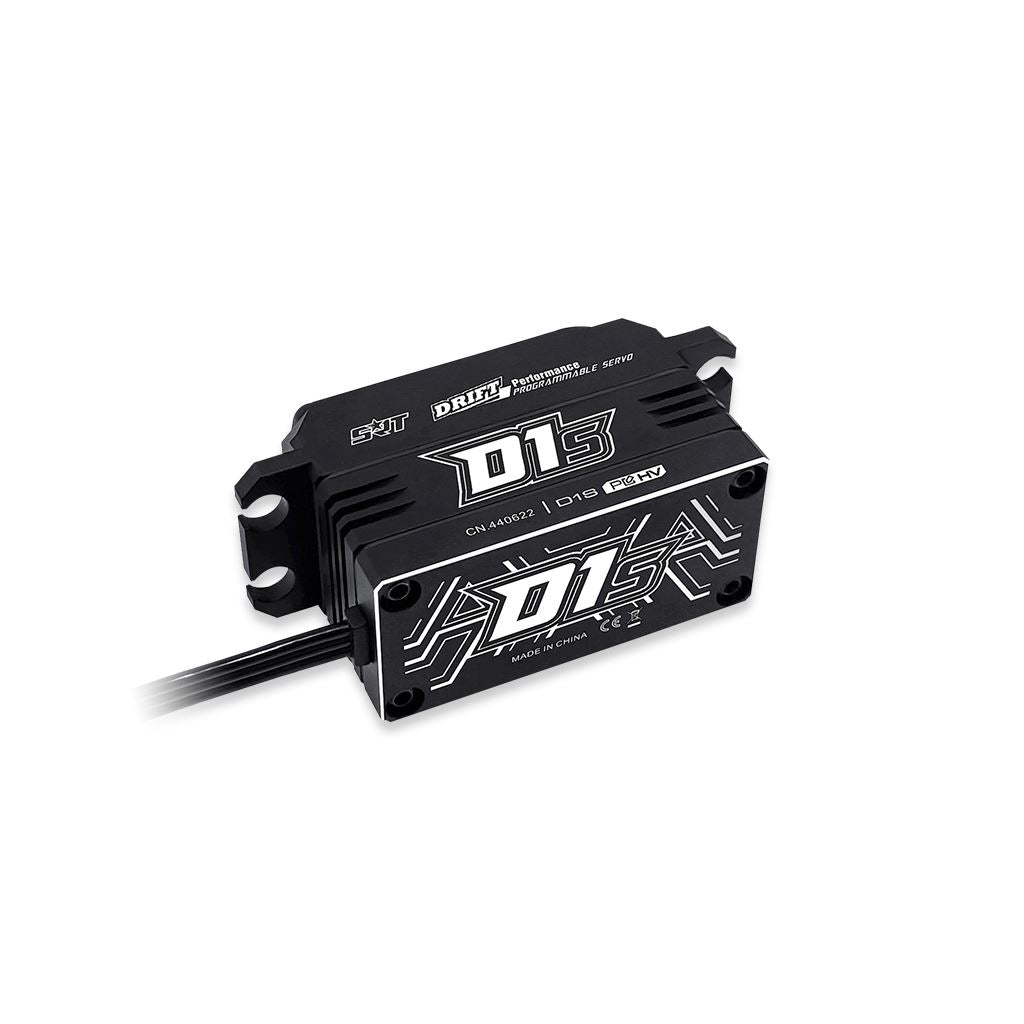

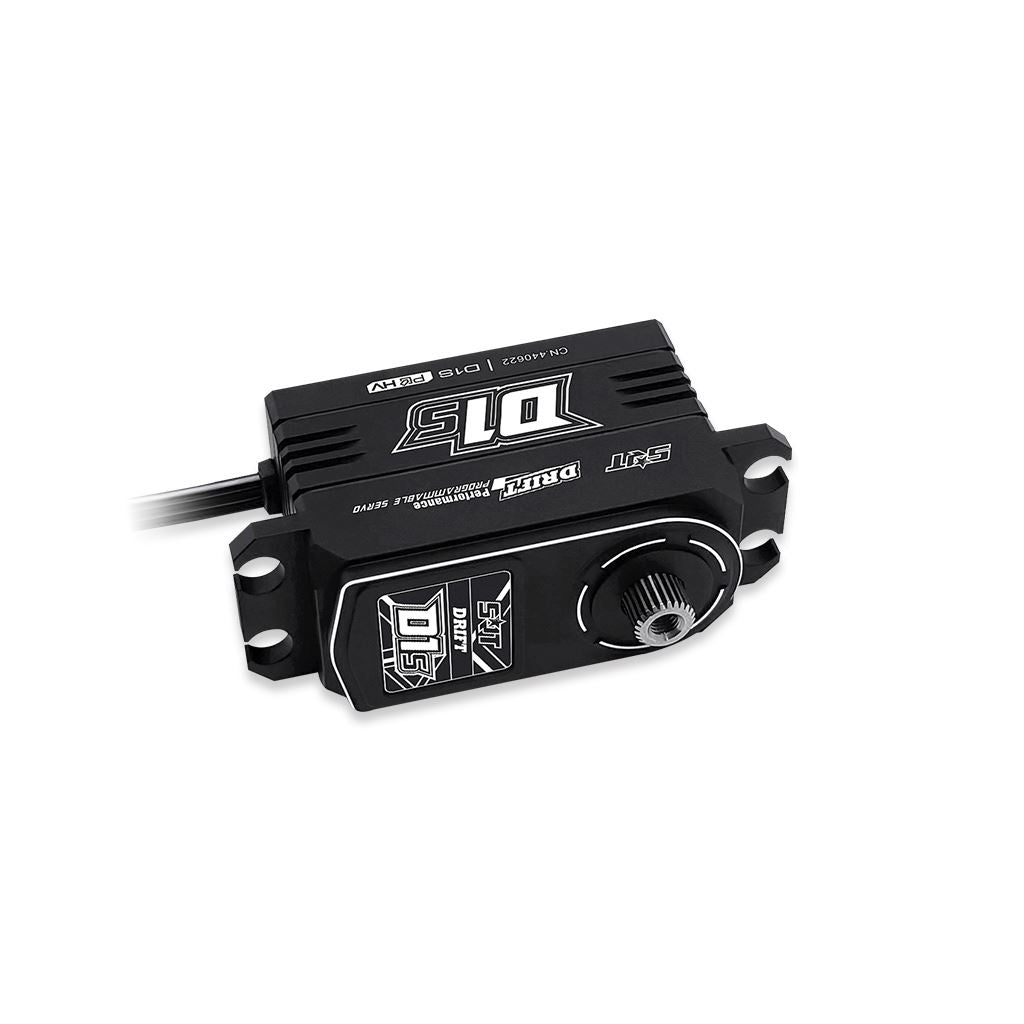

Srt D1S 1/10 Drift Car Hv Servo


£71.19
RRP: £76.99
Save £5.80
Notify me when available
Description
KEY FEATURES

- Ideal for 1/10 drift car applications
- incredible efficiency and low power consumption
- Titanium & Steel gears for precision and durability
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminum case for exceptional cooling
- SSR mode compatible
- 2 μsec Dead Band
- Superior Holding Torque
- 1-Year Limited Warranty

Application :

1/10 Drift

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.10 sec/60 degrees at no load
operating speed (7.4v): 0.095 sec/60 degrees at no load
operating speed (8.4v): 0.08 sec/60 degrees at no load
stall torque (6.0v): 14.0kg.cm (194.4 oz/in)
stall torque (7.4v): 16.5kg.cm (229.1 oz/in)
stall torque (8.4v): 18.5kg.cm (256.9 oz/in)
potentiometer drive: direct drive

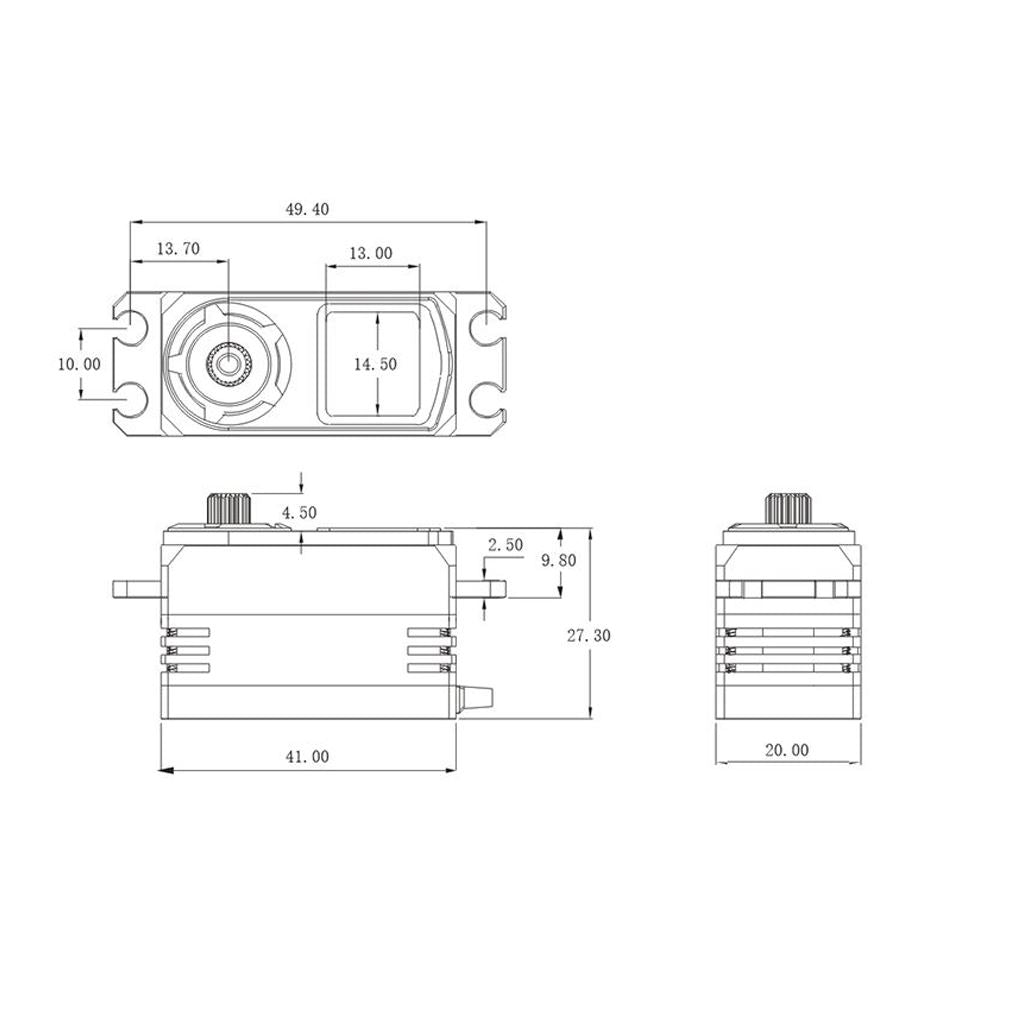

dimensions: 41.0x20.0x27.3 mm /1.61x0.79x1.07 in
weight: 58.0g (2.05 oz)
connector wire length: jr 80 mm
