SRT  |  SRTDH85W

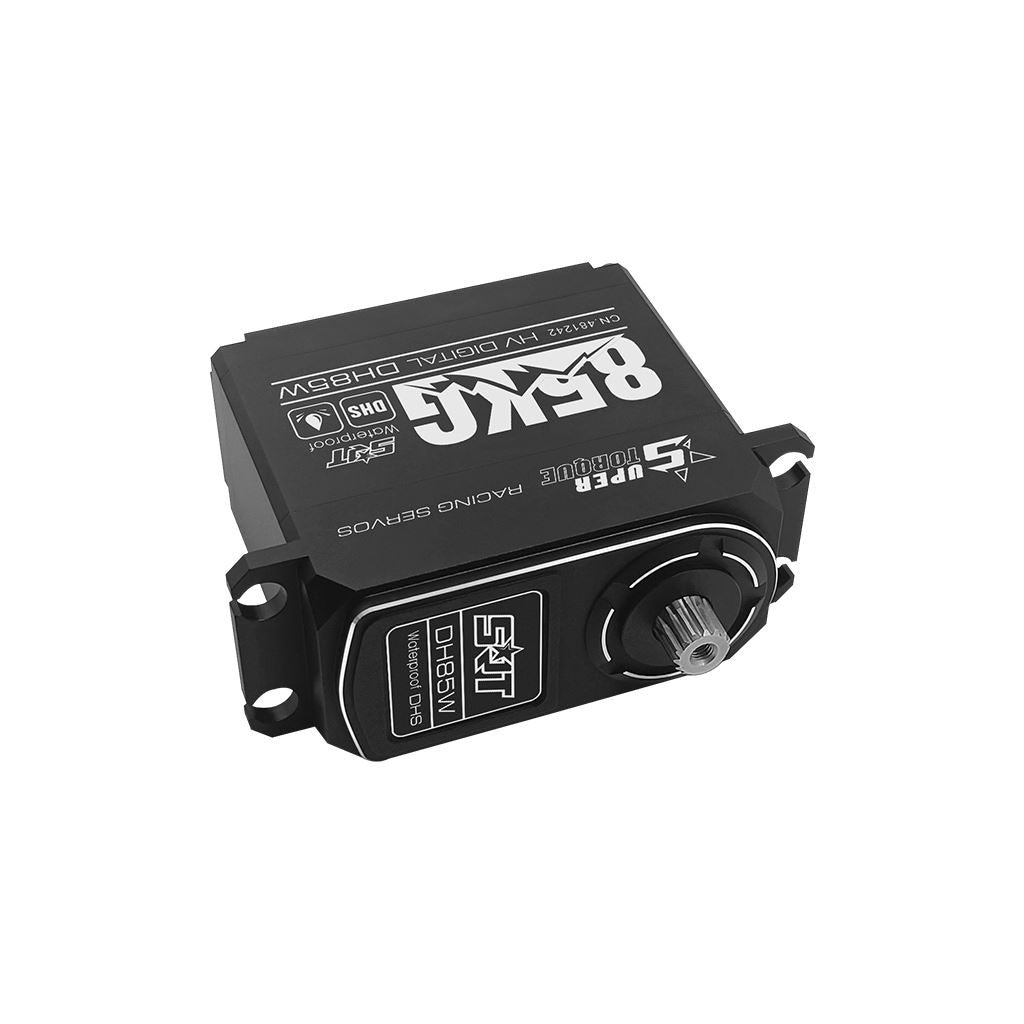

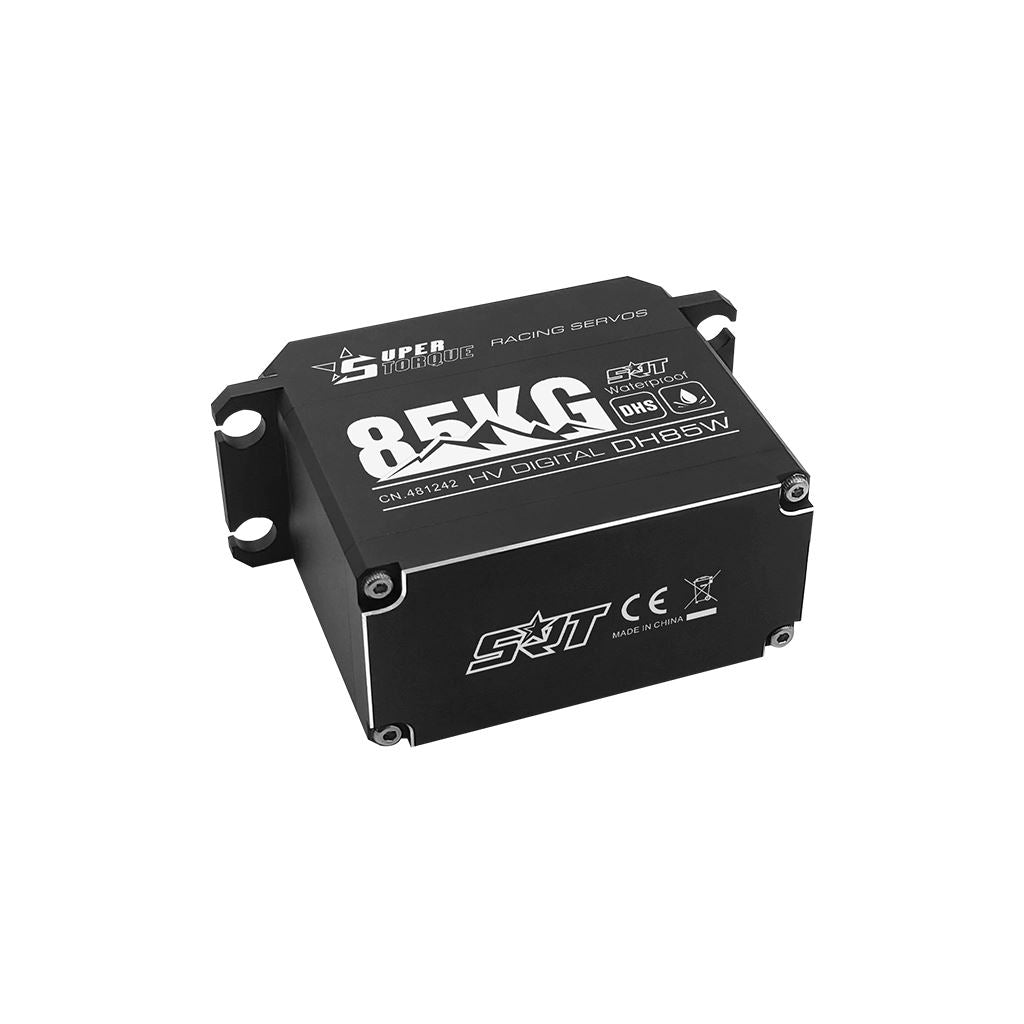

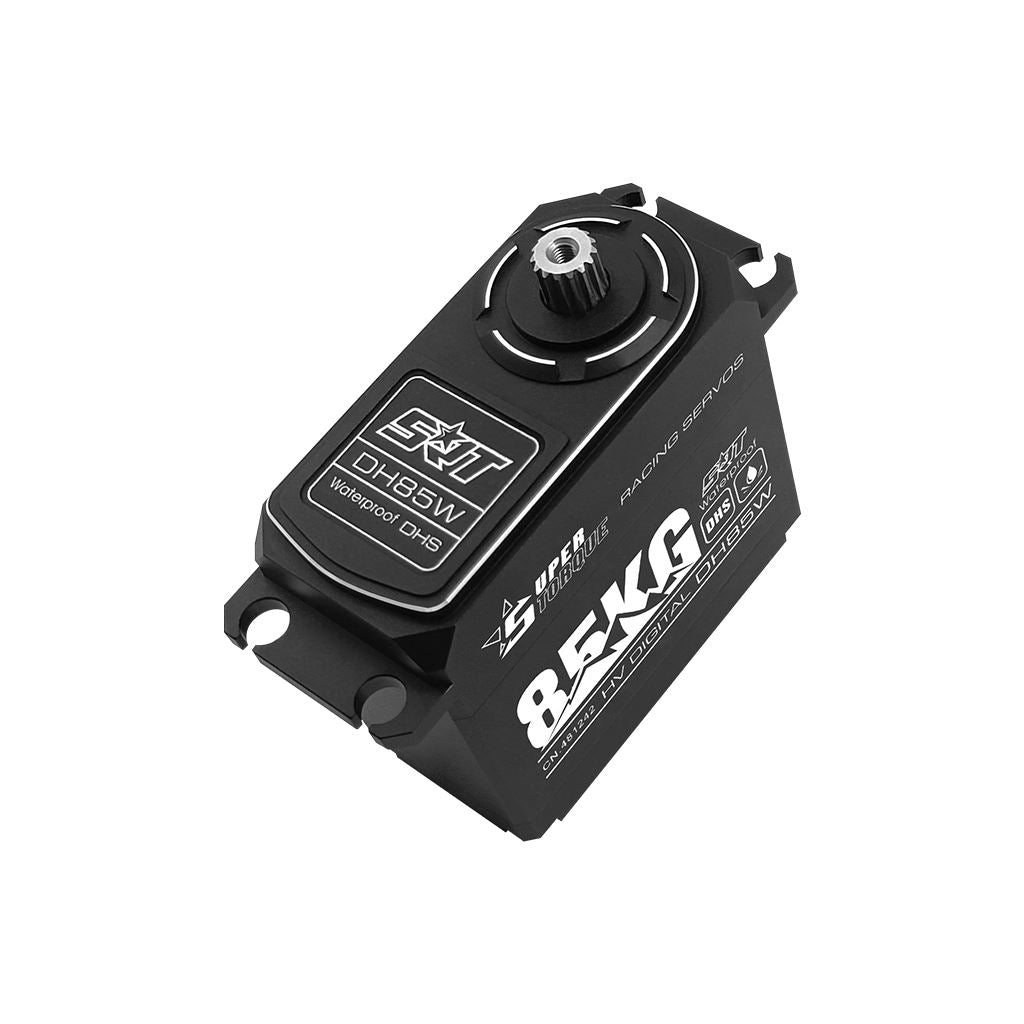

Srt Dh85W All-Metal High-Torque Servo


£80.49
RRP: £86.99
Save £6.50
Notify me when available
Description
KEY FEATURES

- Ideal for 1/5 on road and 1/5 off road scale applications
- Incredible efficiency and low power consumption
- NMB dual main bearings
- Superior waterproof
- 15T output shaft
- 1-Year Limited Warranty

Application :

1/5 Nitro Touring
1/5 Nitro Buggy

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: DC

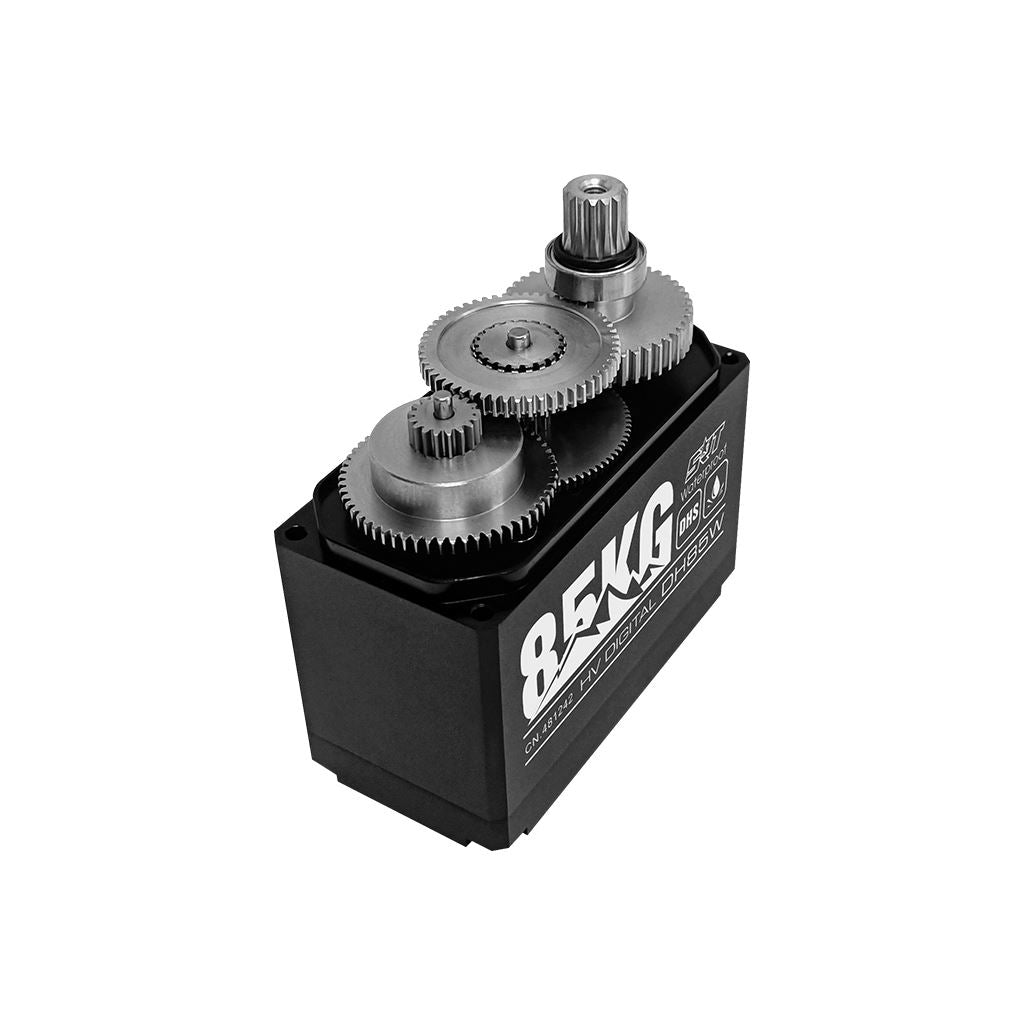

Gear Type: Metal
Gear Material: Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc7.4-8.4v
operating temperature range: -10 to + 60 degree
operating speed (7.4v): 0.17 sec/60 degrees at no load
operating speed (8.4v): 0.15 sec/60 degrees at no load
stall torque (7.4v): 78.0kg.cm (1083.2 oz/in)
stall torque (8.4v): 85.0kg.cm (1180.4 oz/in)
potentiometer drive: direct drive

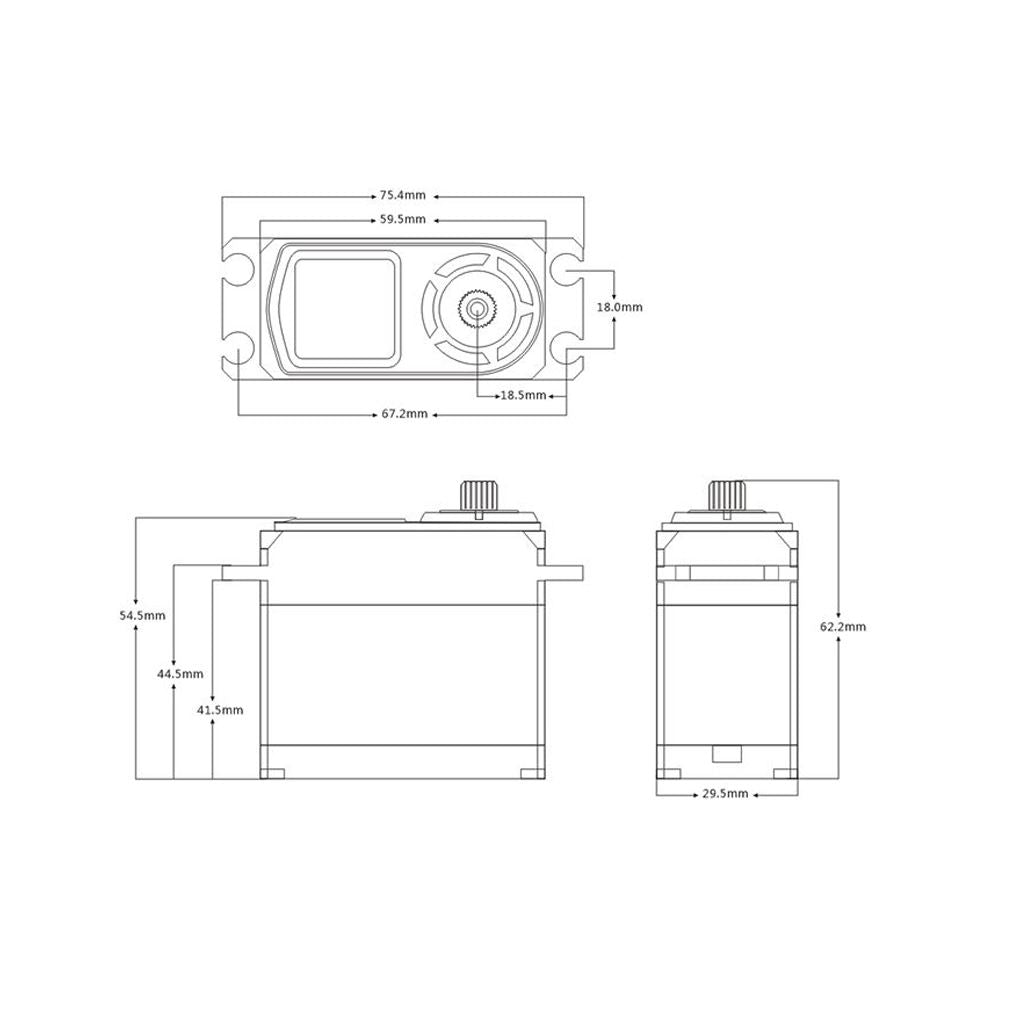

dimensions: 59.5x29.5x54.5 mm /2.34x1.16x2.15 in
weight: 200.0g (7.05 oz)
connector wire length: jr 350 mm
