SRT  |  SRTDL3017

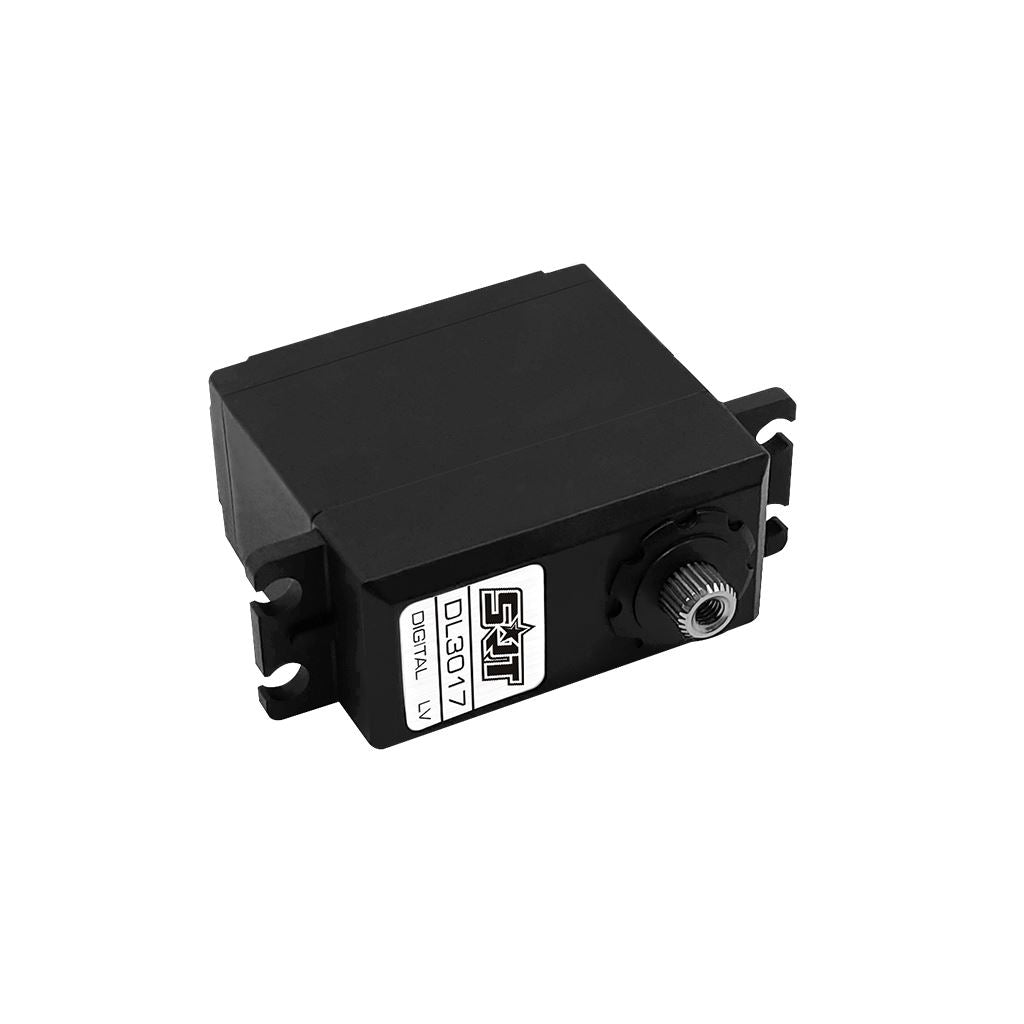

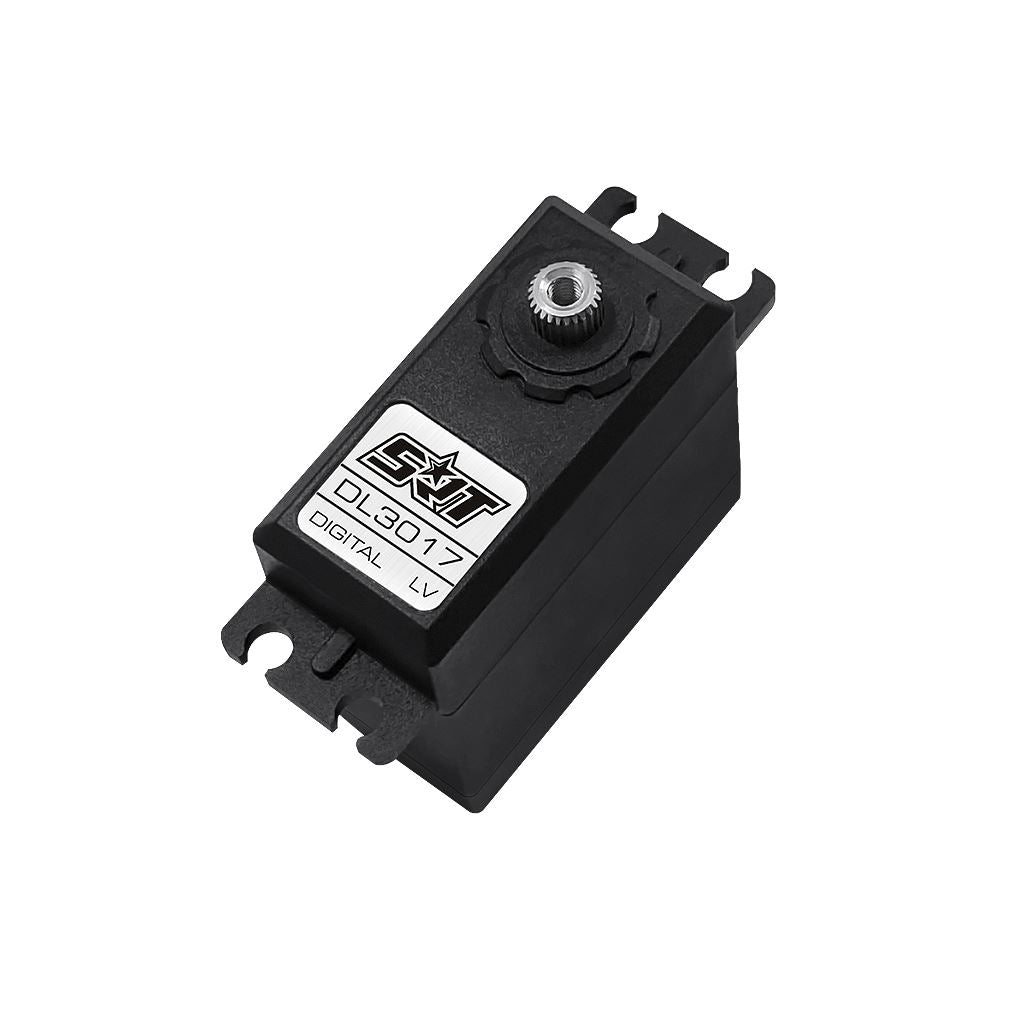

Srt Dl3017 Lv Digital Servo


£14.79
RRP: £15.99
Save £1.20
Home Delivery Available to order

        Allow 1-2 day(s) for order dispatch

Description
KEY FEATURES

- Incredible efficiency and low power consumption
- 2 μsec Dead Band
- 1-Year Limited Warranty

Application :

1/10 Crawler

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: DC

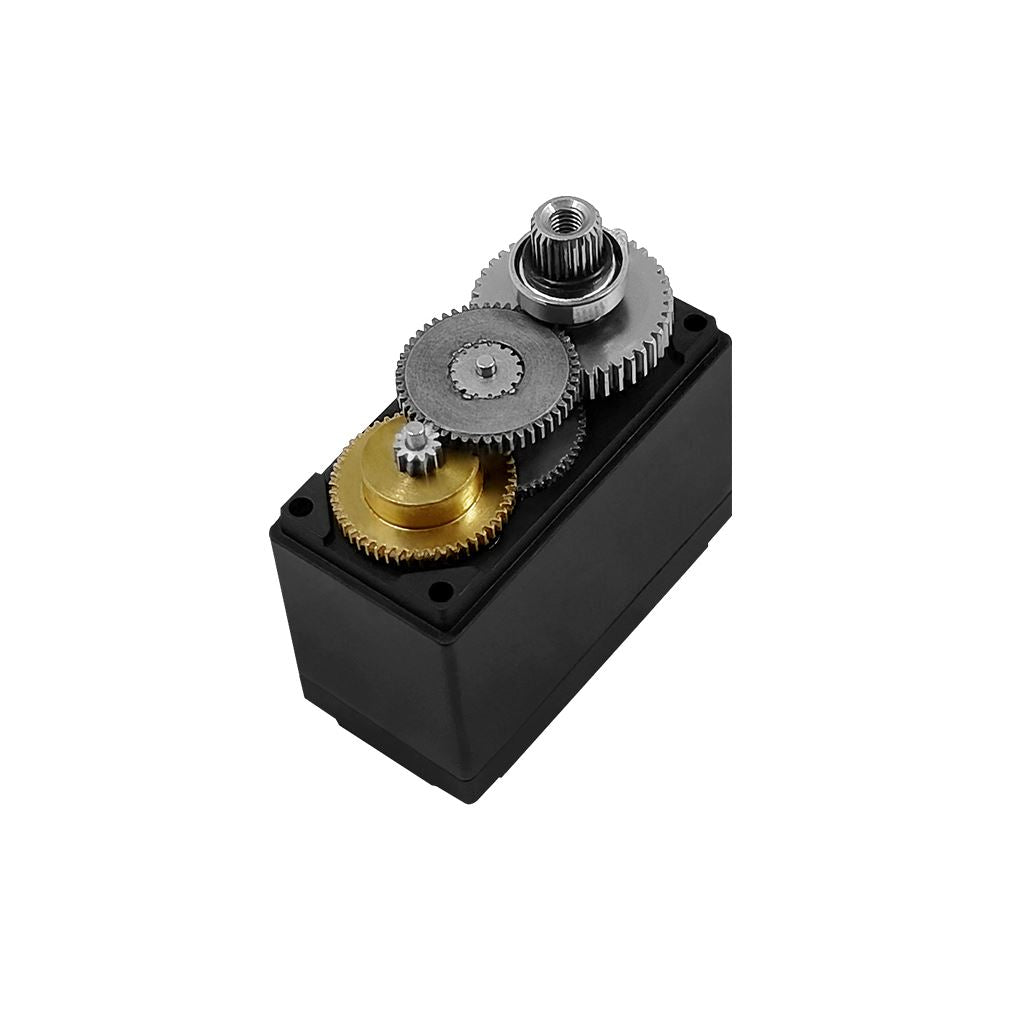

Gear Type: Metal
Gear Material: Copper & Aluminum
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc4.8-6.0v
operating temperature range: -10 to + 60 degree
operating speed (4.8v): 0.17 sec/60 degrees at no load
operating speed (6.0v): 0.15 sec/60 degrees at no load
stall torque (4.8v): 15.5kg.cm (215.3 oz/in)
stall torque (6.0v): 17.0kg.cm (236.1 oz/in)
potentiometer drive: direct drive

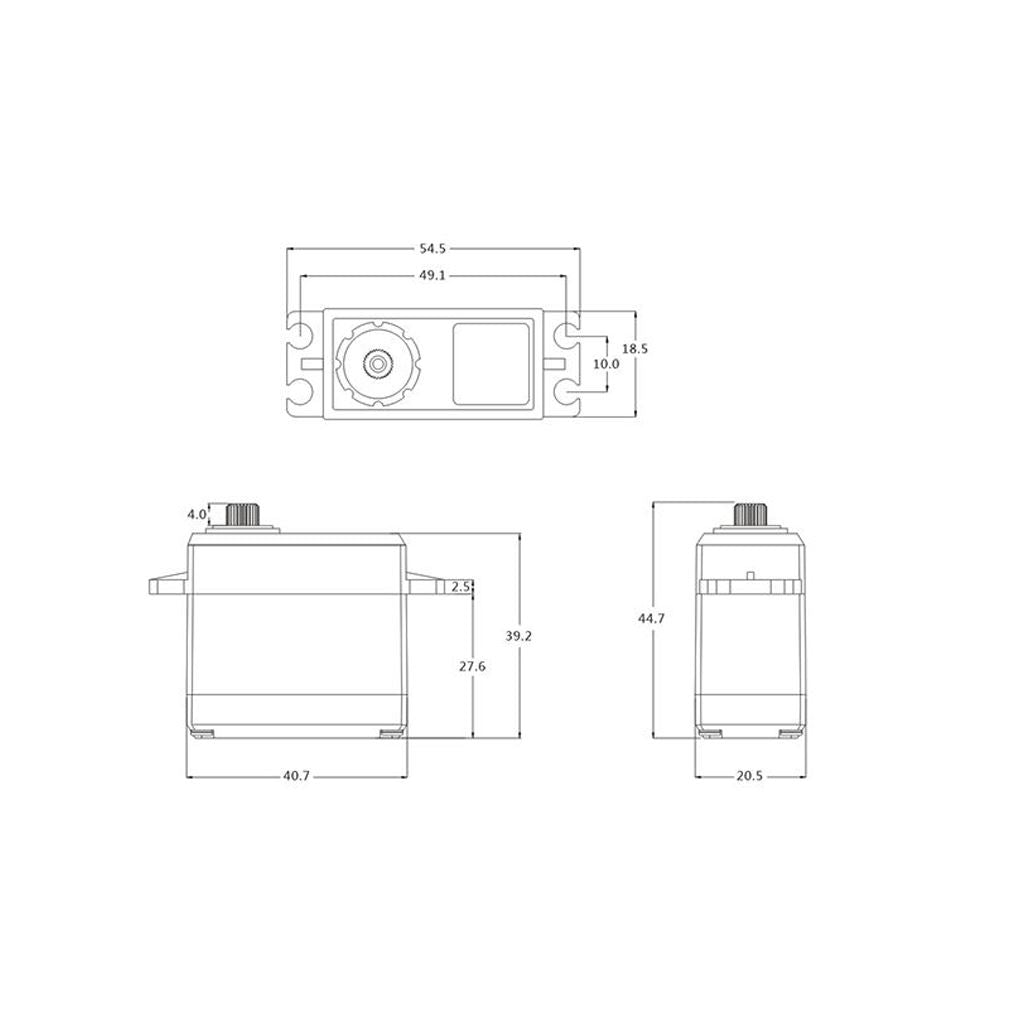

dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
weight: 56.0g (1.98 oz)
connector wire length: jr 290 mm
