SALE: Save more than 35% on selected products SHOP NOW

SRT  |  SRTM11

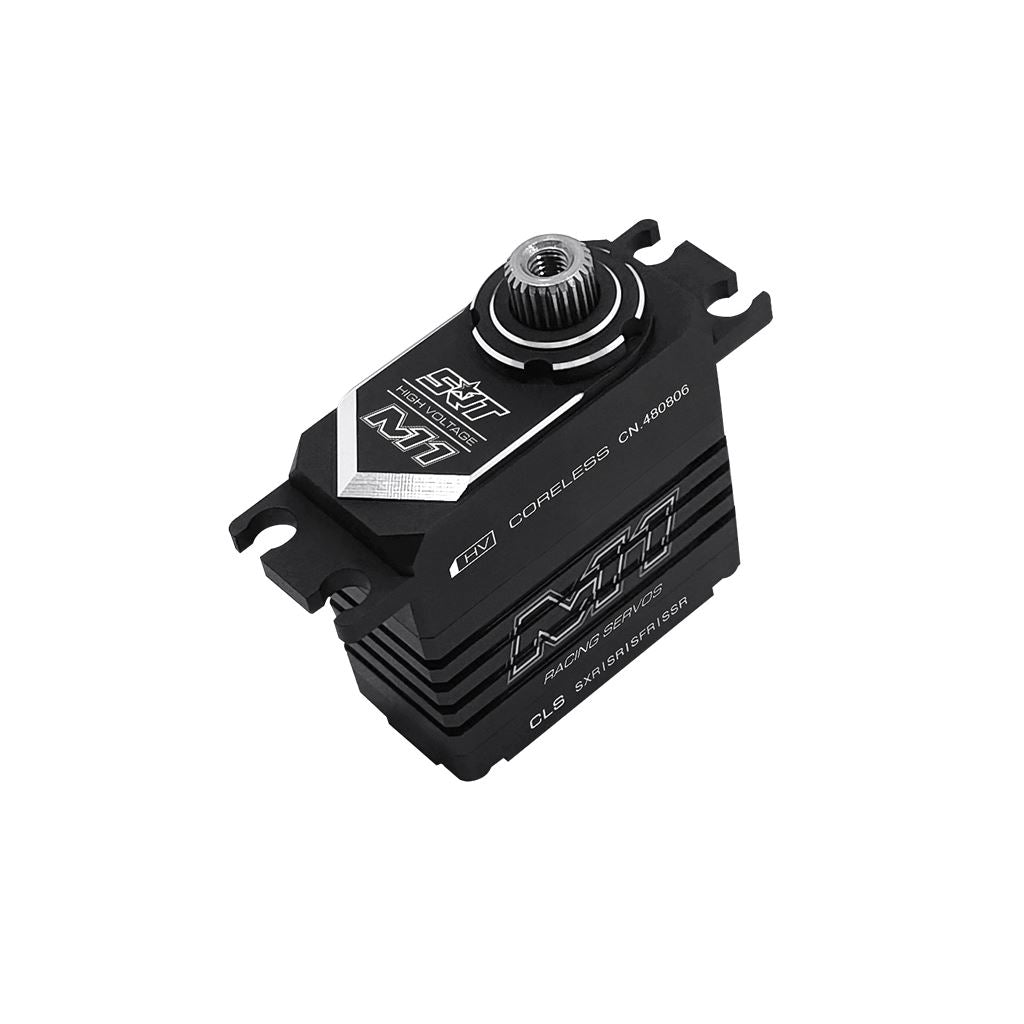

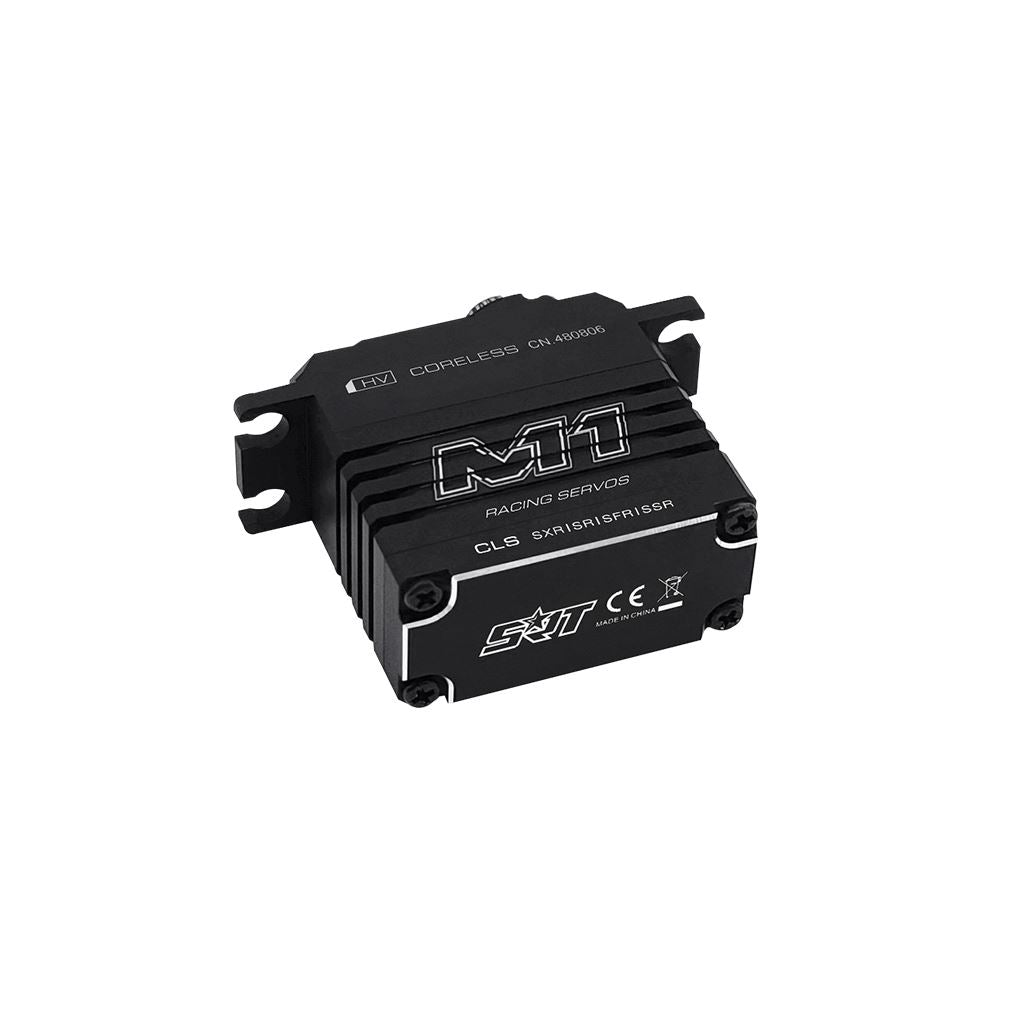

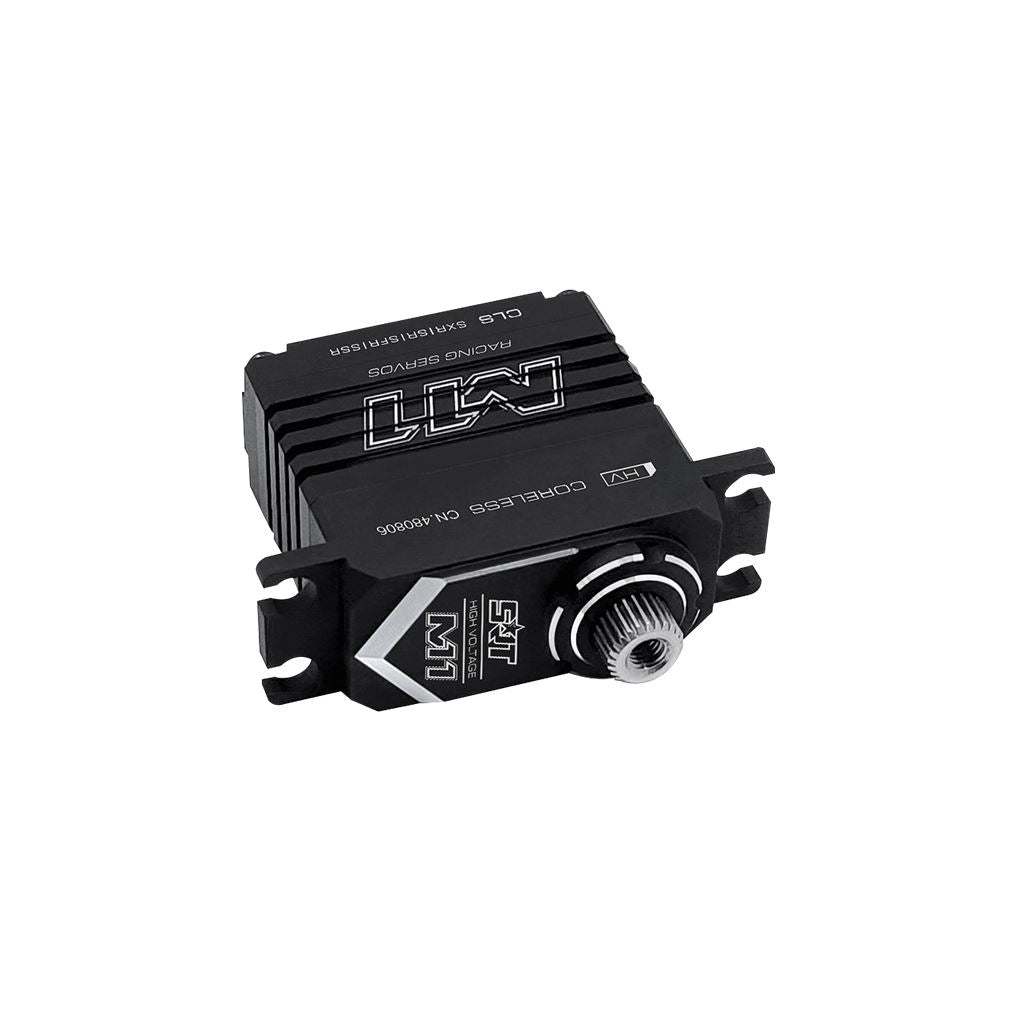

Srt M11 1/12 Pancar Hv Coreless Servo


£69.39
RRP: £74.99
Save £5.60
Home Delivery Available to order

        Allow 1-2 day(s) for order dispatch

Description
KEY FEATURES

- Special 1/12 pancar servo
- Supporting SXR, SFR, SR, SSR multiple ultra high speed modes
- Incredible efficiency and low power consumption
- 2 μsec Dead Band
- 1-Year Limited Warranty

Application :

1/12 Pancar

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 333hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.07 sec/60 degrees at no load
operating speed (7.4v): 0.065 sec/60 degrees at no load
operating speed (8.4v): 0.055 sec/60 degrees at no load
stall torque (6.0v): 7.0kg.cm (97.2 oz/in)
stall torque (7.4v): 8.0kg.cm (111.1 oz/in)
stall torque (8.4v): 9.0kg.cm (125.0 oz/in)
potentiometer drive: direct drive
dimensions: 28.5x13.4x29.0 mm /1.12x0.53x1.14 in
weight: 28.0g (1.0 oz)
connector wire length: jr 170 mm
