SRT  |  SRTW25

Srt W25 Hv Digital Waterproof Servo


£53.59
RRP: £57.99
Save £4.40
Notify me when available
Description
KEY FEATURES

- Ideal for 1/10 on road scale applications
- Intermediate aluminum case
- NMB dual main bearings
- Superior waterproof
- 25T output shaft
- 1-Year Limited Warranty

Application :

Servo 1/10 Crawler

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: DC
Gear Type: Metal
Gear Material: Copper & Aluminum
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-7.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.16 sec/60 degrees at no load
operating speed (7.4v): 0.14 sec/60 degrees at no load
stall torque (6.0v): 23.0kg.cm (319.4 oz/in)
stall torque (7.4v): 25.0kg.cm (347.2 oz/in)
potentiometer drive: direct drive

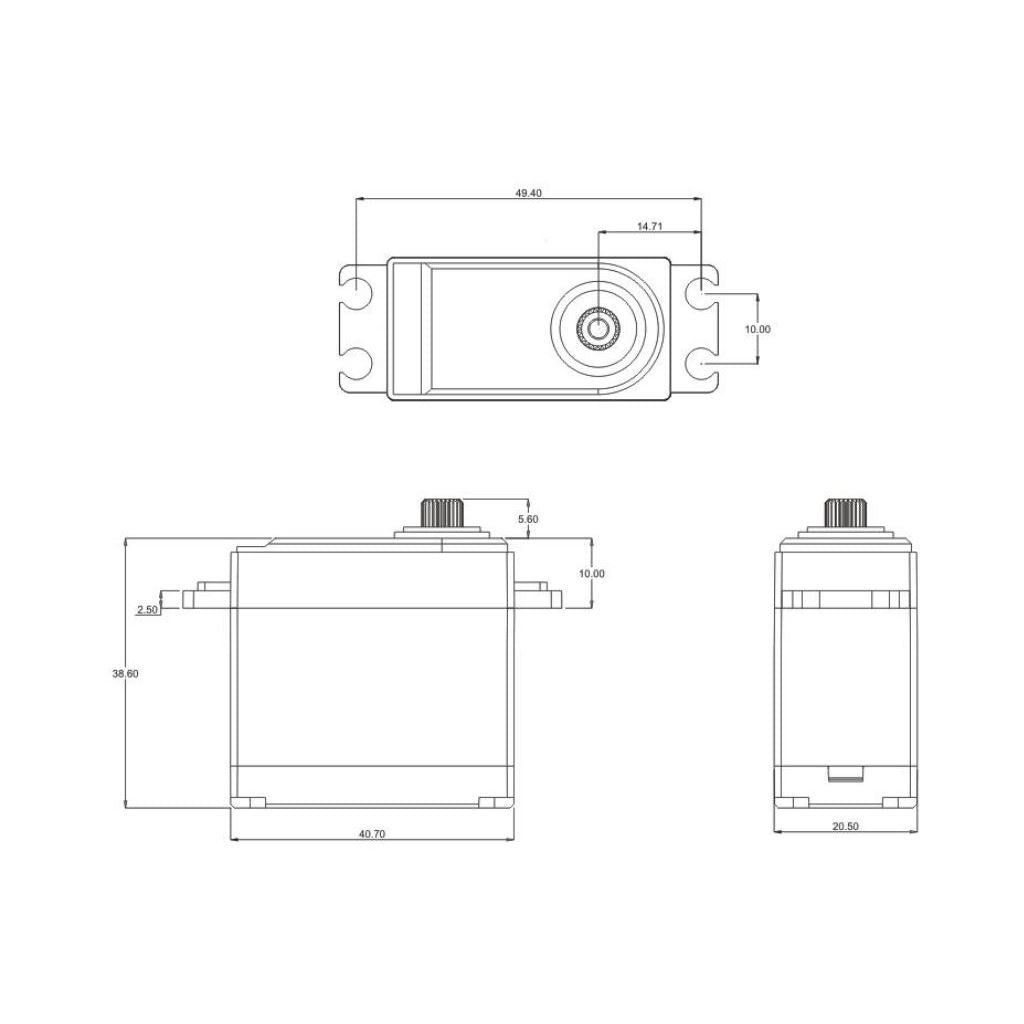

dimensions: 40.7x20.5x38.6 mm /1.60x0.81x1.52 in
weight: 72.0g (2.54 oz)
connector wire length: jr 360 mm
