SRT  |  SRTW45

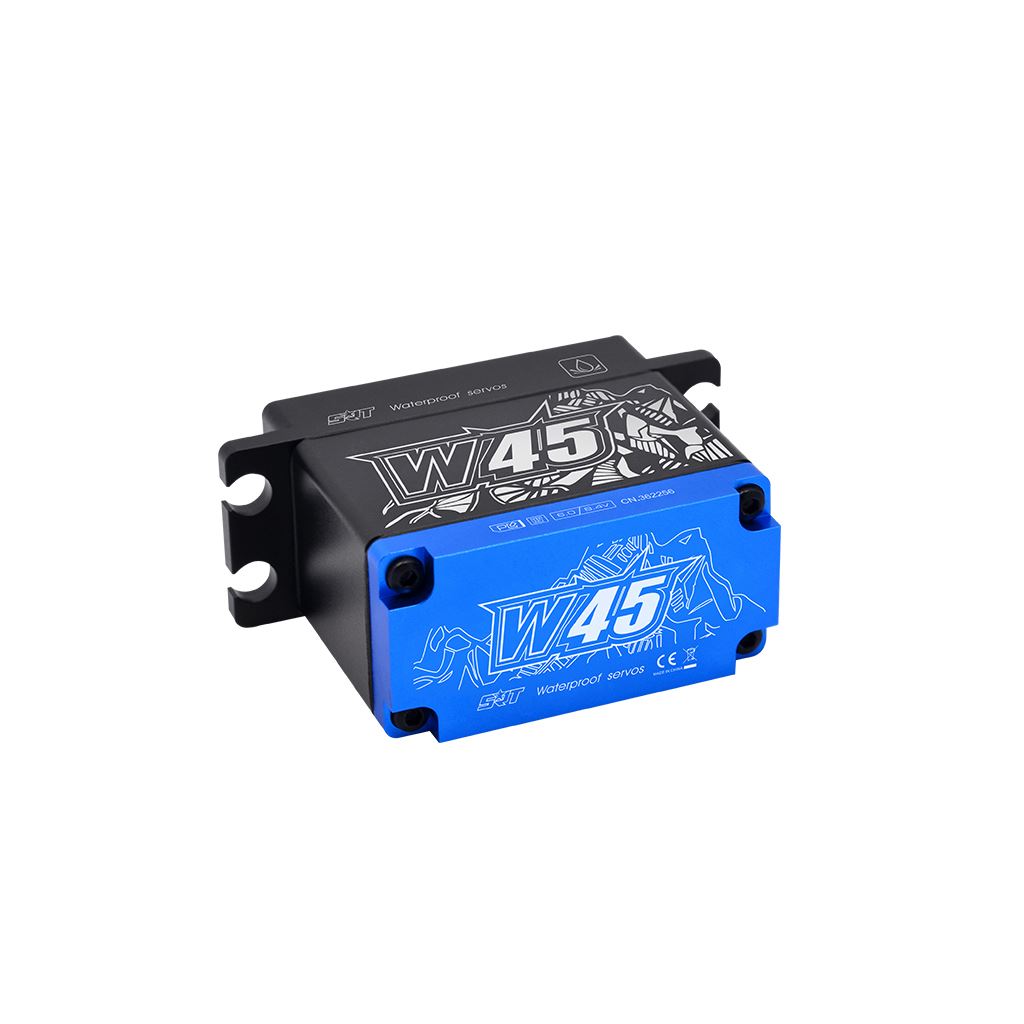

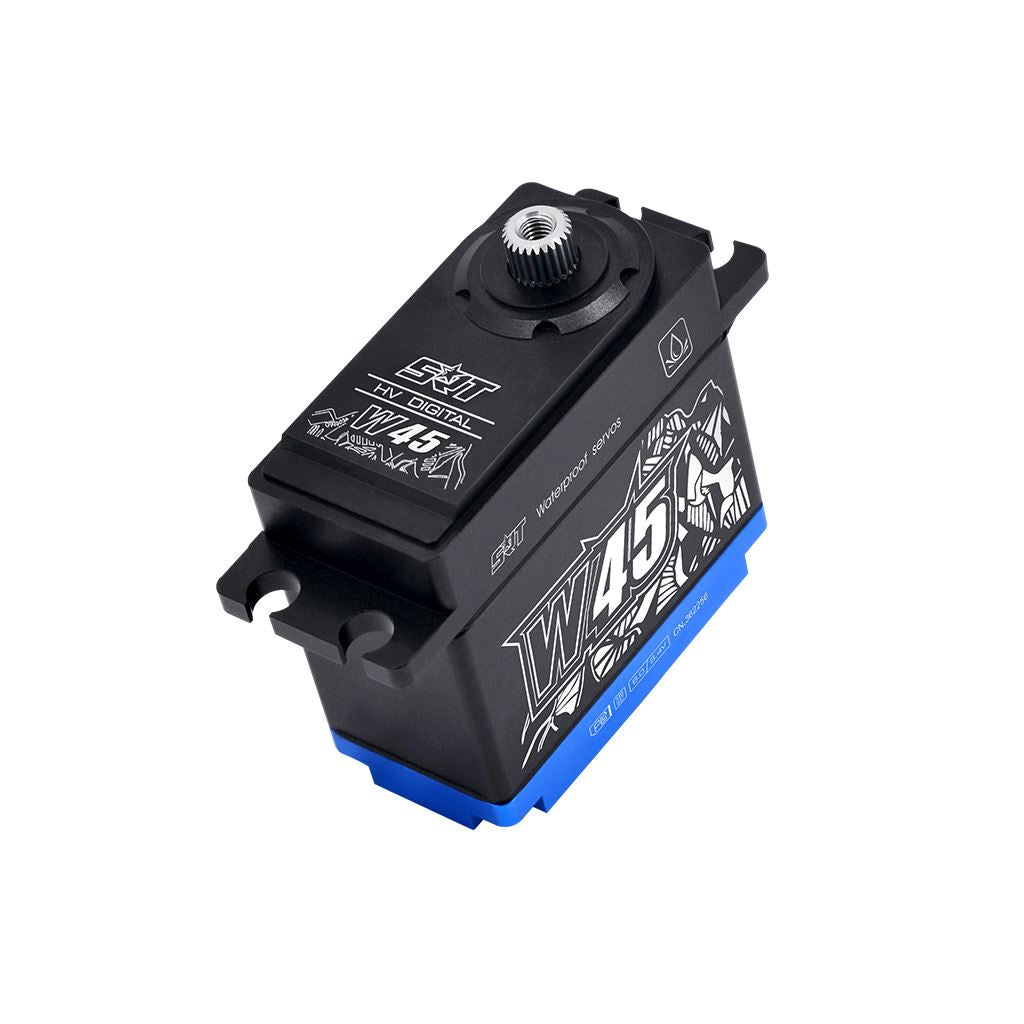

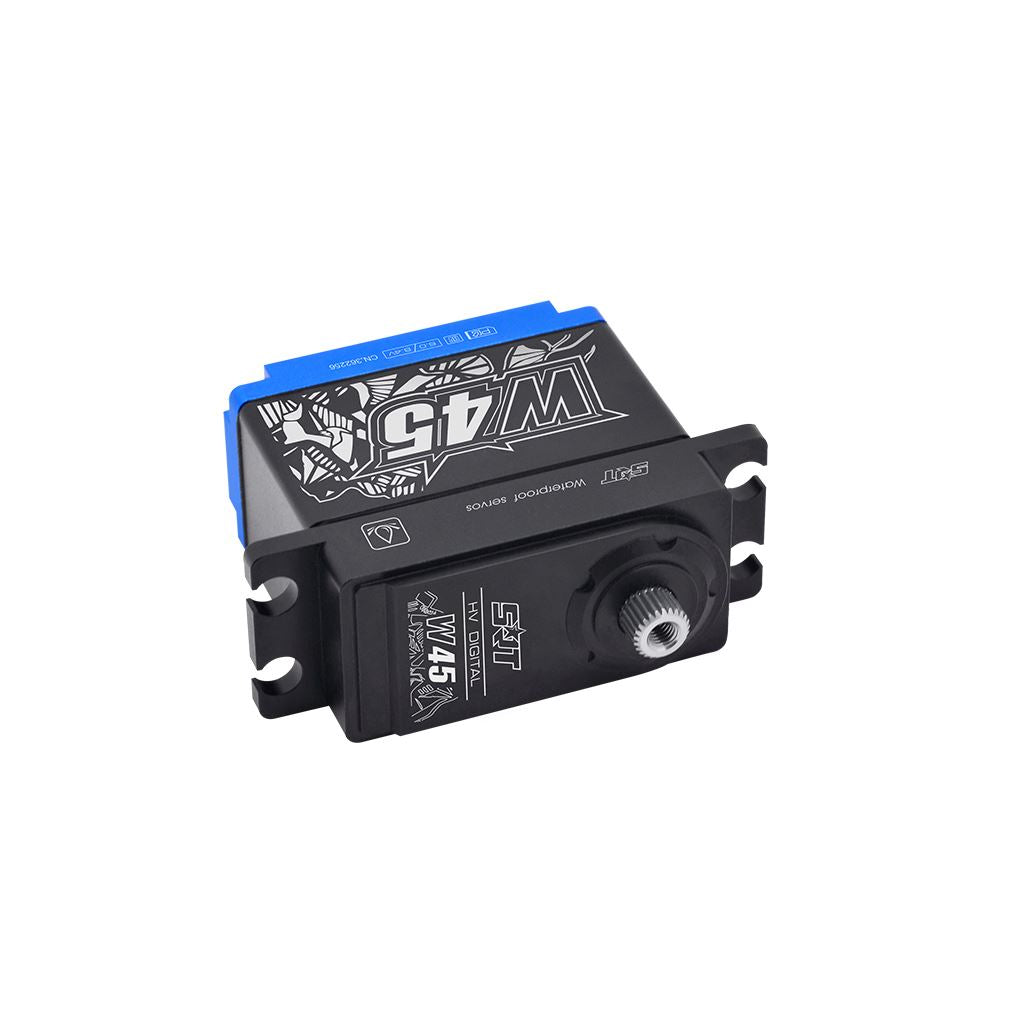

Srt W45 Hv Coreless Waterproof Servo


£64.69
RRP: £69.99
Save £5.30
Notify me when available
Description
KEY FEATURES

- Intermediate aluminum case
- NMB dual main bearings
- Superior waterproof
- 25T output shaft
- 1-Year Limited Warranty

Application :

1/10 Crawler
1/8 Crawler

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.20 sec/60 degrees at no load
operating speed (7.4v): 0.19 sec/60 degrees at no load
operating speed (8.4v): 0.18 sec/60 degrees at no load
stall torque (6.0v): 34.0kg.cm (472.2 oz/in)
stall torque (7.4v): 40.0kg.cm (555.5 oz/in)
stall torque (8.4v): 45.0kg.cm (624.9 oz/in)
potentiometer drive: direct drive

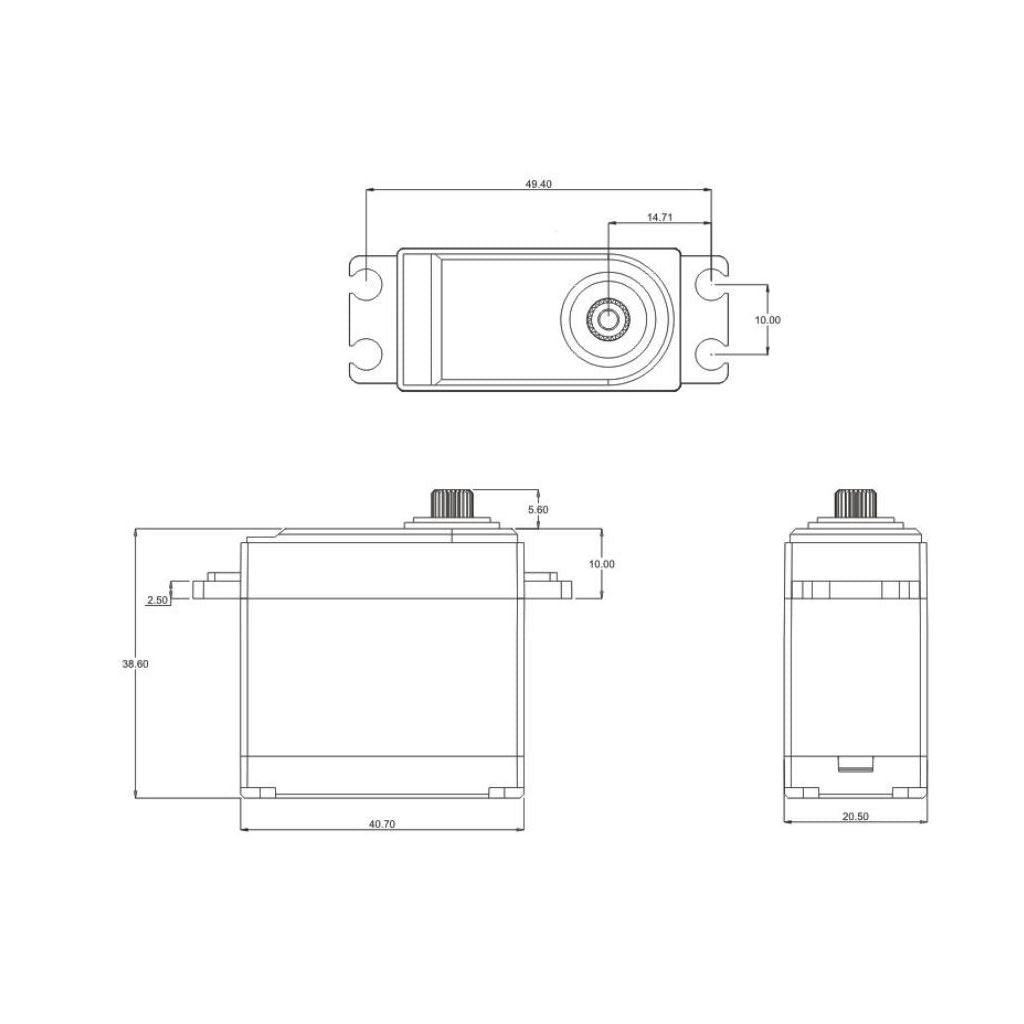

dimensions: 40.7x20.5x38.6 mm /1.60x0.81x1.52 in
weight: 82.5g (2.91 oz)
connector wire length: jr 360 mm
SRT

Srt W45 Hv Coreless Waterproof Servo

£64.69
Description
KEY FEATURES

- Intermediate aluminum case
- NMB dual main bearings
- Superior waterproof
- 25T output shaft
- 1-Year Limited Warranty

Application :

1/10 Crawler
1/8 Crawler

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless
Gear Type: Metal
Gear Material: Titanium & Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.20 sec/60 degrees at no load
operating speed (7.4v): 0.19 sec/60 degrees at no load
operating speed (8.4v): 0.18 sec/60 degrees at no load
stall torque (6.0v): 34.0kg.cm (472.2 oz/in)
stall torque (7.4v): 40.0kg.cm (555.5 oz/in)
stall torque (8.4v): 45.0kg.cm (624.9 oz/in)
potentiometer drive: direct drive
dimensions: 40.7x20.5x38.6 mm /1.60x0.81x1.52 in
weight: 82.5g (2.91 oz)
connector wire length: jr 360 mm
