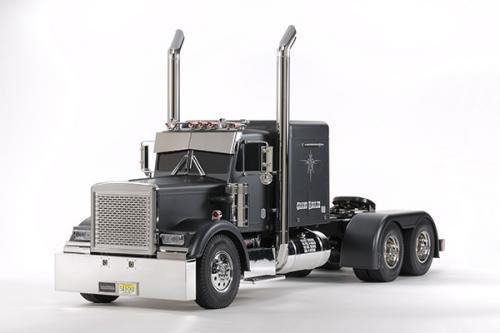

Tamiya Grand Hauler (Matt Black)

Looking Great in Black
Take control of your very own big rig - this R/C model assembly kit recreates a massive boxy, customized truck like those seen in North America. Body parts are given a sumptuous finish, pre-painted in metallic black and with a matte top coat that contrasts superbly with the numerous metal-plated parts. The model's ladder frame chassis features aluminum side channels with resin cross members and is equipped with a highly realistic suspension utilizing metal leaf springs and dampers. A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering. A 4-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations.

- Enjoy that customized mood, enhanced by metal plated parts such as the front bumper and radiator grille.


- The roof also features plated horn and light bezel parts, as well as a plated sun visor for the windshield.


- Plated side mirror parts also include kerb mirrors. Moving metal stays allow adjustment of mirror position.

- Further detail is added to the oversized air cleaners, with photo-etched parts depicting air intakes.


- Lowered step provides storage location for MFC unit. Fuel tanks are also mounted low under the body.


- Use the coupler to attach any of Tamiya's 1/14 scale trailers, and listen out for the different engine sound.


- Left: Model utilizes metal pipes to depict mufflers, while their optional covers are gleaming metal-plated resin.

- Right: Low-down rear bumper offers multiple lamp positions, compatible with LEDs. Fender parts are included.


Realistic Lights, Sounds, and Vibration
Tamiya Multi-Function Control Units (included for Japanese market only, available separately overseas) offer light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from an actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.

Specifications

- Length: 692mm, Width: 192mm, Height: 330mm, Weight: Approx. 3.9kg (*with all equipment attached)
- Wheelbase: 433mm+103mm
- Tread: 156mm (Front), 138mm (Rear, Double Tire)
- Chassis: Aluminum & Polycarbonate Resin Ladder Frame
- Suspension: Front/Rear Leaf Springs
- Caster Angle: 0&deg (Front & Rear)
- Camber Angle: 0&deg (Front & Rear)
- Toe Angle: 0&deg (Front & Rear)
- Dampers: Front/Rear Aluminum Friction Dampers
- Drivetrain: Rear 2-Axle Drive
- Transmission: 3-Gear Transmission (gear shifting operated from transmitter)
- Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
- Diff Gear: 3-Bevel Diff.
- Motor: Type 540
- Tire Width: 22mm (Front/Rear)
- Tire Diameter: 83mm (Front/Rear)
- Included Items (Japan only): 4-channel transmitter & receiver, MFC-01, 2 servos, 7.2V battery pack & charger
- Requires four R6/AA/UM3 batteries for transmitter (sold separately)

Semi-Trailers Separately Available
Various types including semi-trailer, tank-trailer, and pole-trailer, are currently available. Attach any one of them via the coupler on the model to create an exciting combination over a meter in length.
