Tamiya Multi Function Control Unit 58372

Released in 2006, the 1/10 R/C 4x4 3-Speed High-Lift has been exceptionallywell-received by fans around the world. With the release of this new Multi-Function Unit, Tamiyakicks up the realism another notch with light, sound, and vibration effects all controllable via a 4-channel transmitter (sold separately) to make all the 3-Speed Highlifts even more impressive!!!

Item #7255252 4ch Attack 2.4Ghz radio is recommended when using a Tamiya MFC unit for true easy setup and complete function.

LIGHT EFFECTS

10 types of high-brightness LEDs (including optional LEDs) for a total of up to 33 lights can be controlled to depict various realistic light actions while driving. They can also light up in pre-set patterns during Demo Mode for a brilliant shelf display.

Headlight 1 Headlight 2 High Beam Fog Lamp 1 Fog Lamp 2 Fog Lamp 3 Fog Lamp 4 Fog Lamp 5 Auxiliary Lights (Front) Auxiliary Lights (Rear) Turn Signal (Front Right) Turn Signal (Front Left) Turn Signal (Rear Right) Turn Signal (Rear Left) Reverse Lamp Brake Lamp Flash Lamp

SOUND EFFECTS

Onboard speaker unit can emit a total of 24 different sound effects (including optional sounds) that were all digitally recorded from actual vehicles, including the operating sounds for both a big imposing V8 engine and a spunky small-displacement turbo engine.

Engine Starting 1 Idling 1 Running 1 Engine Stop 1 Up-shifting 1 Down-shifting 1 Horn 1 Engine Starting 2 Idling 2 Running 2 Engine Stop 2 Up-shifting 2 Down-shifting 2 Horn 2 Gear Changing Turn Signal Timer 1 Timer 2 Timer 3 Alarm

SPECIAL OPERATIONS

Up to 16 different actions can be controlled via a 4-channeltransmitter (sold separately) to give the sense of driving a real pick-up truck.

Steering Control Throttle Control Horn Operation High Beam Operation Gear Shifting Operation Turn Signal Operation Hazard Lamp Operation Headlight Operation Brake Operation Engine Start/Stop Operation

MORE FEATURES

• Vibration Function Unit recreates rumble movements in conjunction with engine sounds.
• ESC enables realistic low-speed running.

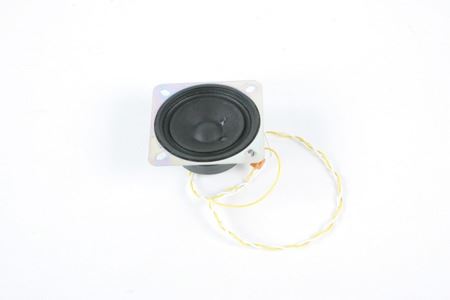

• Speaker Unit not only emits the sound effects mentioned above, it also has an input terminal toallow connection with outside audio sources such as MP3 and CD players for music playback.
• 3 convenient modes of operation: R/C mode with Multi-Function effects off, R/C mode withMulti-Function effects on (4 varieties), and Demo Mode for static display with light and soundeffects only (4 varieties).
• Detailed and user-friendly set-up guide and tutorials to assist users with proper operation of allthe MFC-02 features (please see the next page for some preliminary sample diagrams).

SAMPLE OPERATIONS

Article on shifting gears Click Here!

Article on teaching your MFU Click Here!



Download Video (High Speed Connection)
WMV 640x480 pixel 38sec. (9MB)

*After saving the video to disk, you can play it using either Windows Media Player or Quick Time Player



Download Video (High Speed Connection)
WMV 640x480 pixel 2min 13sec. (33MB)

*After saving the video to disk, you can play it using either Windows Media Player or Quick Time Player



Download Video (High Speed Connection)
WMV 640x480 pixel 23sec. (6MB)

*After saving the video to disk, you can play it using either Windows Media Player or Quick Time Player



Download Video (High Speed Connection)
WMV 640x480 pixel 38sec. (9.65MB)

*After saving the video to disk, you can play it using either Windows Media Player or Quick Time Player

SEPARATELY REQUIRED ITEMS

• 4-channel self-neutral stick-type transmitter equipped with slide trim and self-neutral feature foroptimum performance. (Futaba Attack 4WD recommended)
  Tamiya recommends the Futaba Attack 4WD (T4VWD/FP-R114H) because it has a self-neutral feature. Other 4-channel transmitters made by Futaba, JR Propo, and Acomscan be used with the MFC-02, but operations may not be as smooth as they may lackthe self-neutral feature and connectors may not be compatible. As for transmittersfrom other makers, while it may be possible to use them, please note that there maybe instances where they may not be able to operate all of the MFC-02's functions.
• 4-channel receiver.
• 2 servos.

SPECIAL NOTES

• Do not use together with ITEM# 53909 TLU-01 or ITEM# 53937 TLU-02.
• MFC-02 is compatible with the Type 540 motor only. Please avoid installing other motors.
• MFC-02 cannot be operated with 2-channel or 3-channel transmitters/receivers.
• MFC-02 is not compatible with PCM type receivers, multi-channel receivers, and olderreceivers made by Sanwa (identifiable by their black cases).
• Not Compatible with 2.4ghz systems or others that have digital trim
