Tamiya Tt-02R Chassis Kit (47326)
Save £12.01
Couldn't load pickup availability

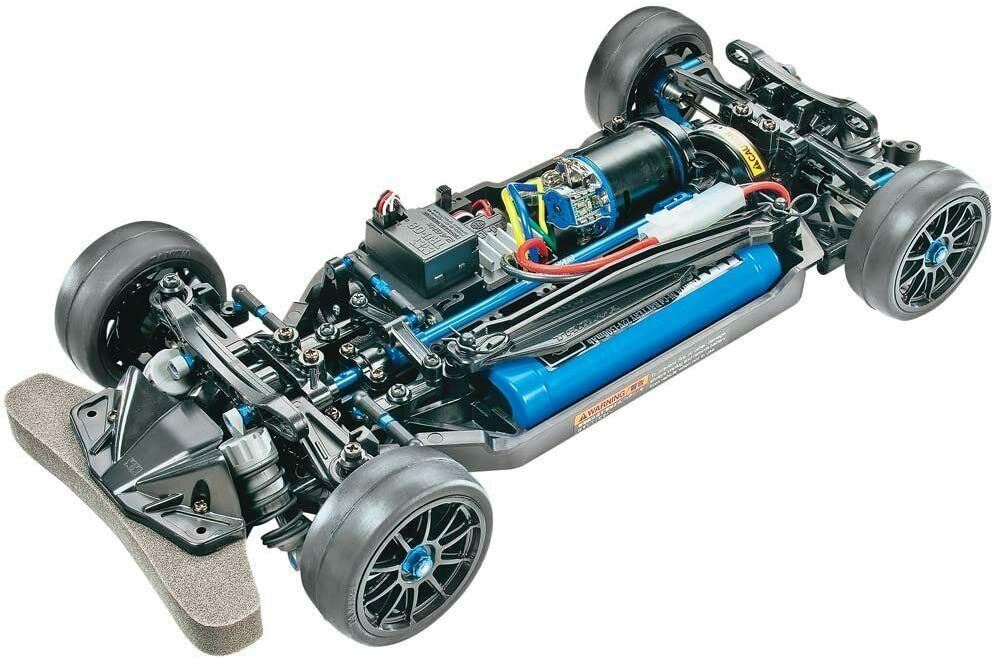

This variant of the efficient 4WD TT-02 chassis includes a range of option parts, allowing you to compete at the front of the race! Aluminum rear uprights give 3-degree toe-in for more stable cornering, while an aluminum motor mount makes for greater rigidity and enhanced heat dissipation. A highly reliable drivetrain employs full ball bearings, aluminum propeller shaft and center cups, plus metal drive shafts and joint cups. Suspension is fitted with CVA oil dampers and black coil springs; they provide superior cushioning and improved traction. The kit also includes a TT-02 high speed gear set (68T).
- The chassis features motor mount, propeller shaft and joints made from lightweight and tough aluminum.
- Aluminum rear uprights provide toe-in of 3 degrees. Gearbox joints and wheel axles are durable metal.
- The chassis is cushioned by high-performance CVA oil dampers paired with cool black color springs.
Featured Components
笳就luminum Rear Uprights (3-Degree Toe-In) 笳就luminum Motor Mount 笳週T-02 Aluminum Propeller Joints 笳週T-02 Aluminum Propeller Shaft 笳週T-02 Full Ball Bearing Set 笳舟etal Drive Shafts, Wheel Axles and Gearbox Joints 笳x18mm Aluminum Turnbuckle Shafts 笳mm Aluminum Flange Lock Nuts (Blue) 笳mm Aluminum Short Ball Connector Nuts (Blue) 笳mm Aluminum Ball Connectors (Blue) 笳舟edium-Narrow Racing Slick Tires 笳mm Ball Connectors 笳修VA Oil Dampers & Springs
Specifications
笳臭ength: 376mm, Width: 182mm 笳集heelbase: 257mm縲笳週ire Width/Diameter: 24/64mm (Front & Rear) 笳州athtub-type Frame 笳輯haft-Driven 4WD 笳洲ront/Rear 4-Bevel Resin Differentials 笳-Piece Steering Tie-Rod 笳-Wheel Double Wishbone Suspension 笳洲ront/Rear CVA Oil Dampers 笳終ncludes 68T and 64T spur gears. Combine with separately-sold pinions for Gear Ratio from 9.82:1 to 5.74:1. 笳拾lectronic Speed Controller (ESC) is sold separately.
Separately Required Items
- 2-channel R/C system with ESC
- Battery pack and charger
- Batteries for transmitter
- Type 540 Motor
- Body
-
