Vanquish H10 Optic Kit

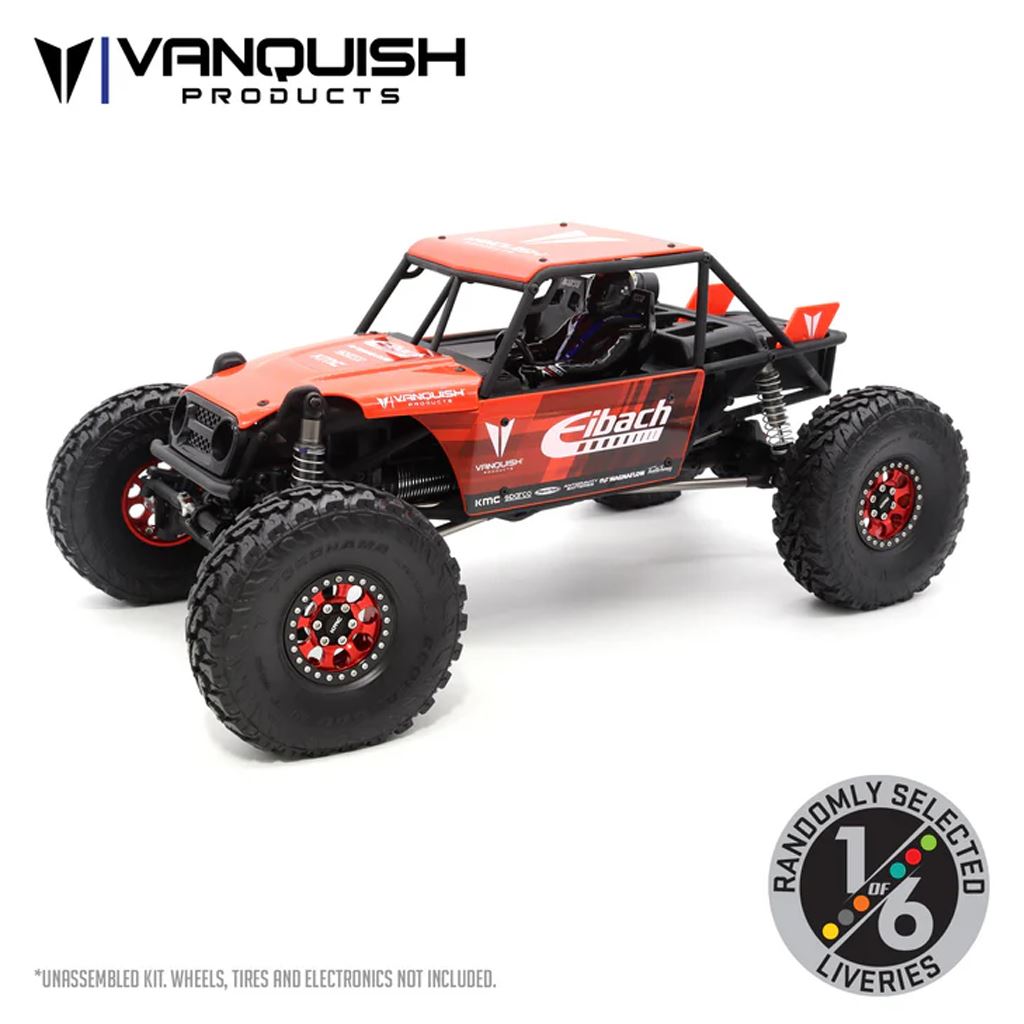

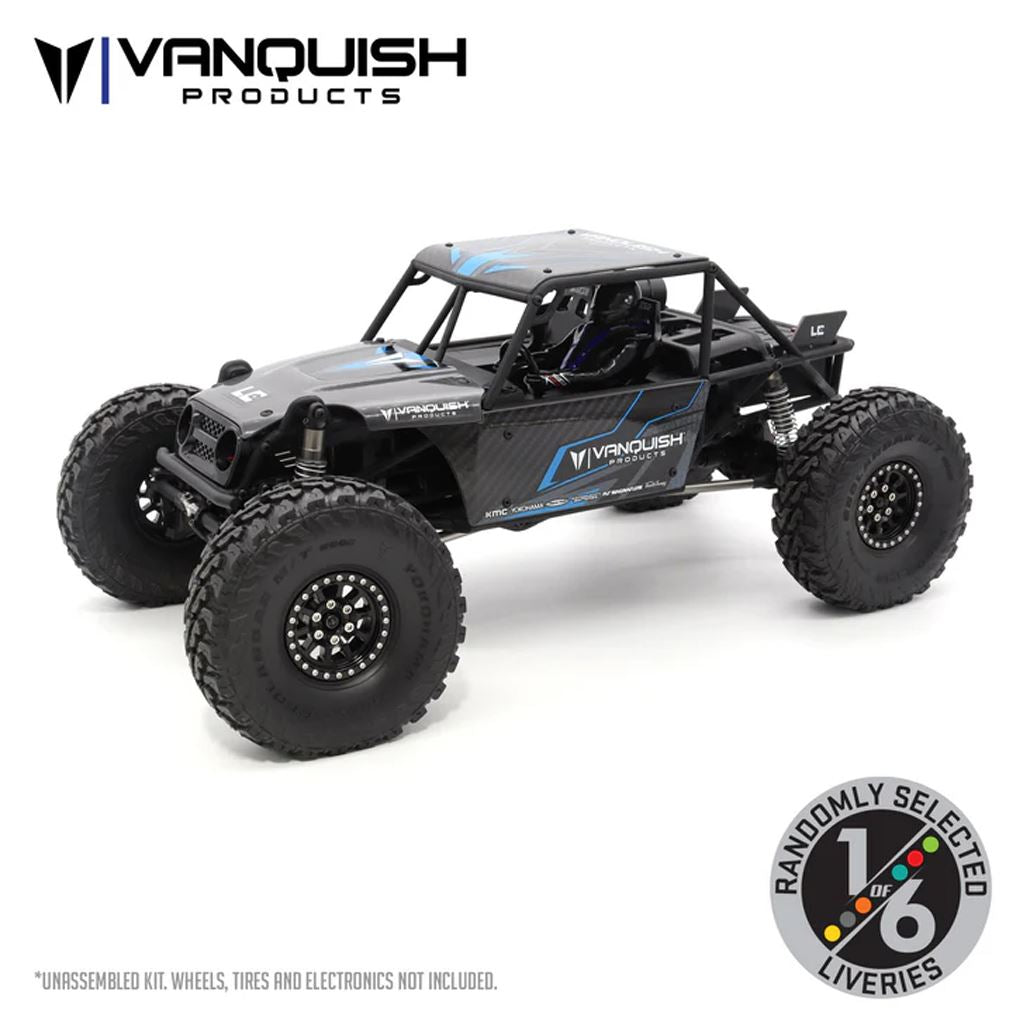

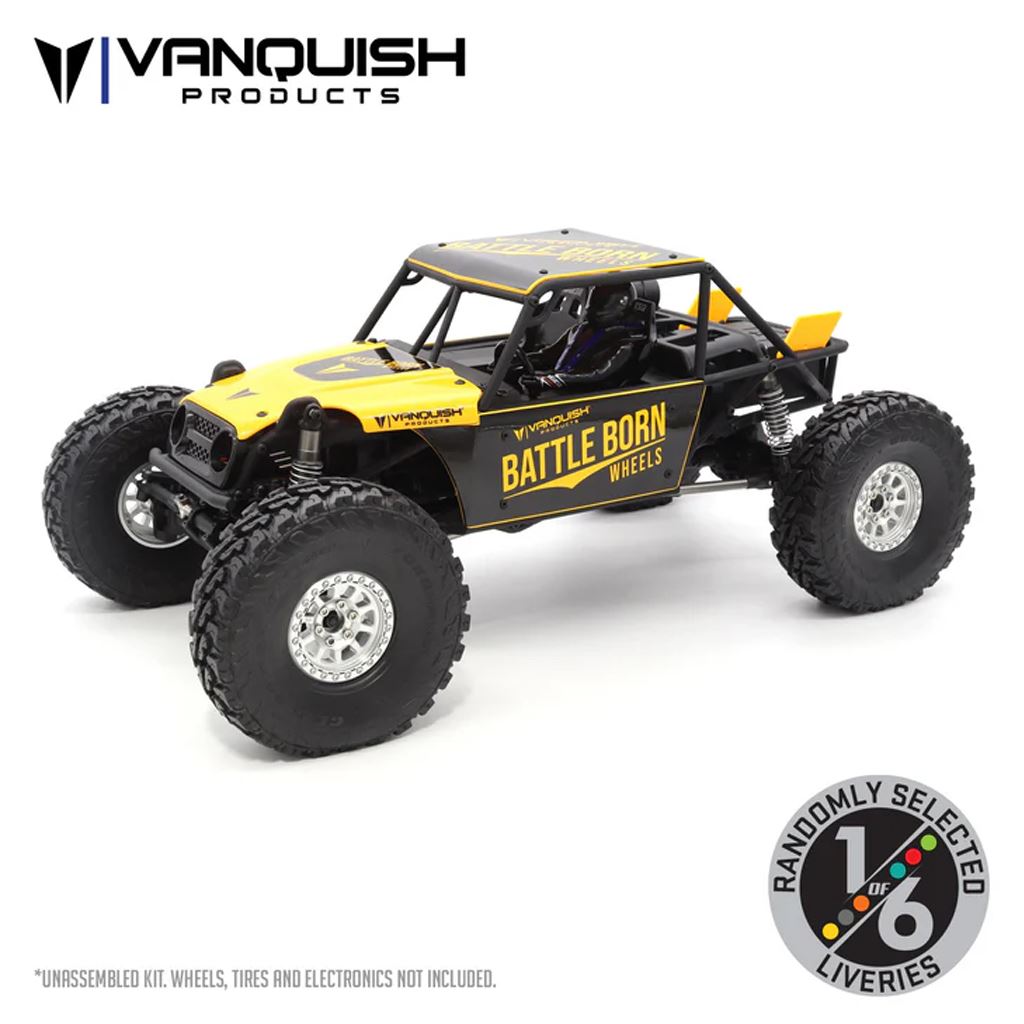

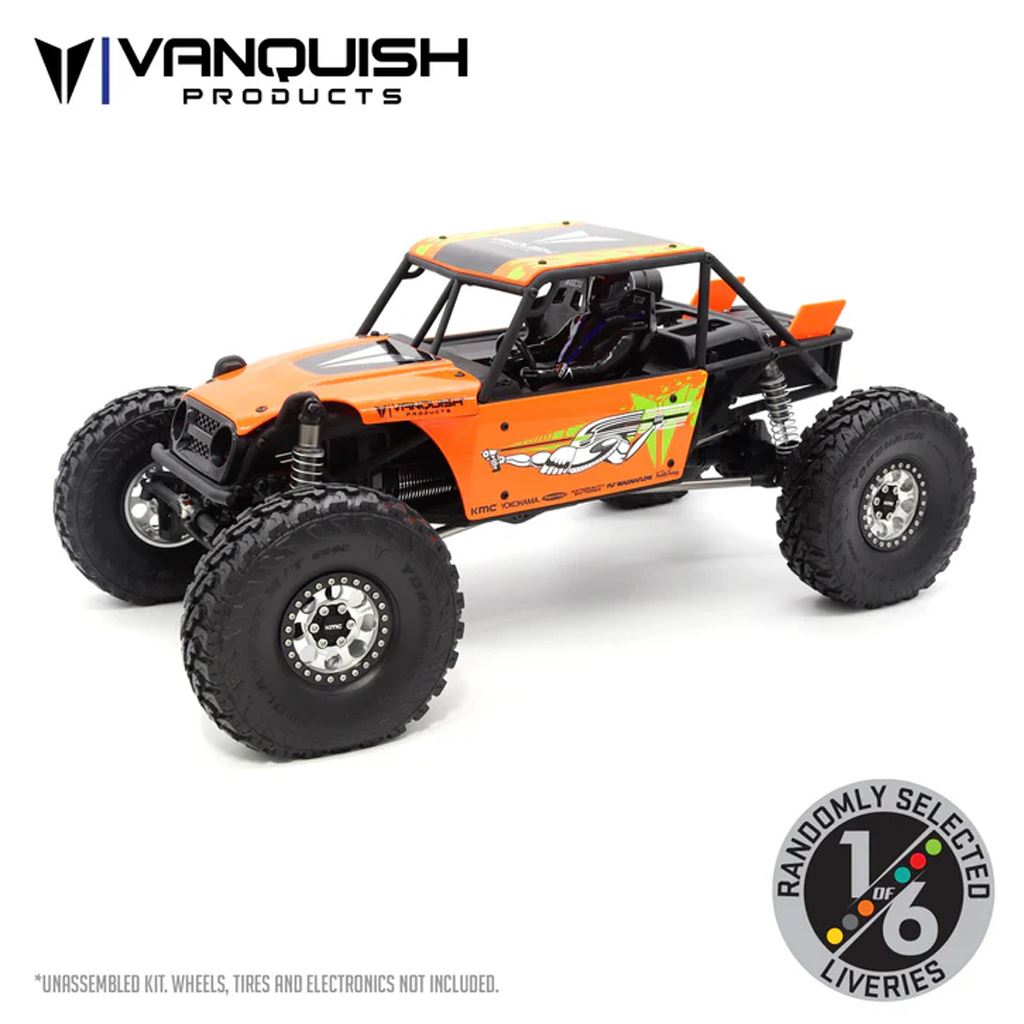

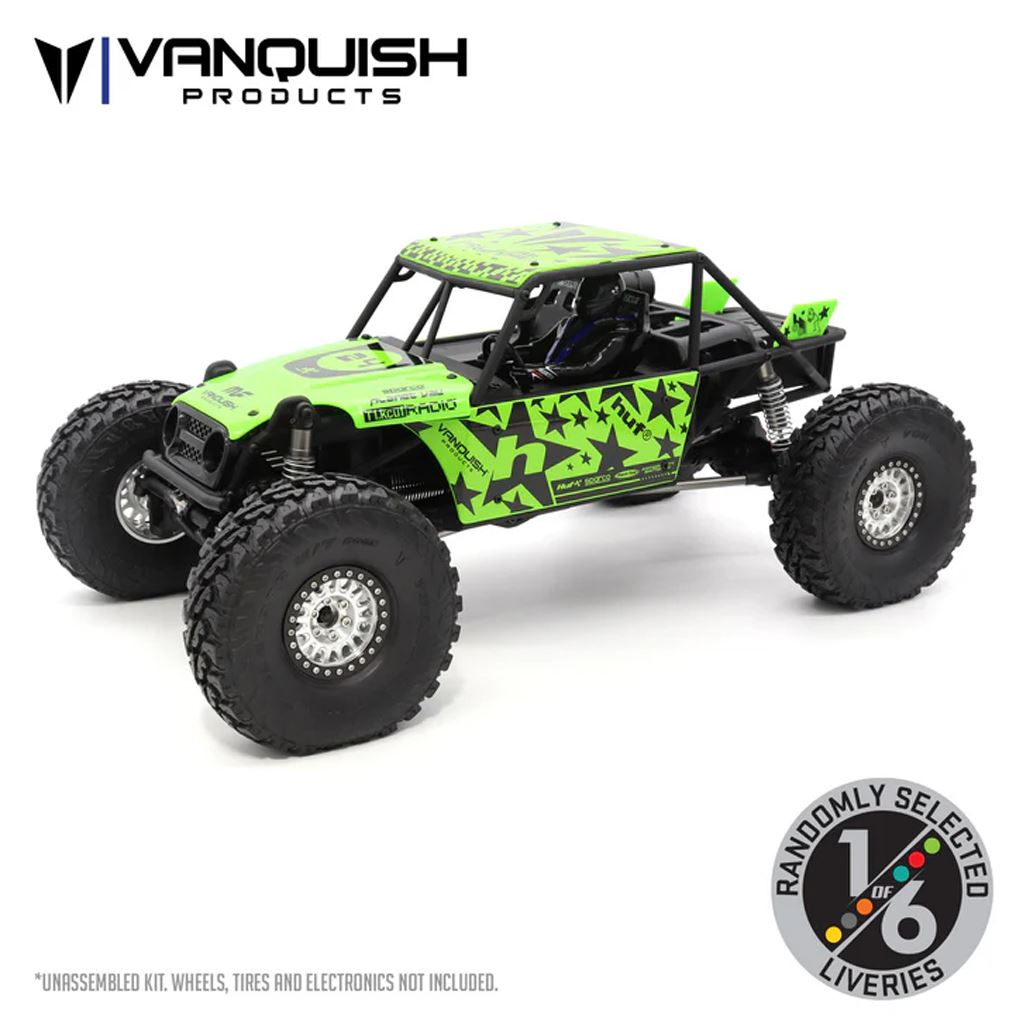

KIT INCLUDES 1 OF 6 LIVERIES

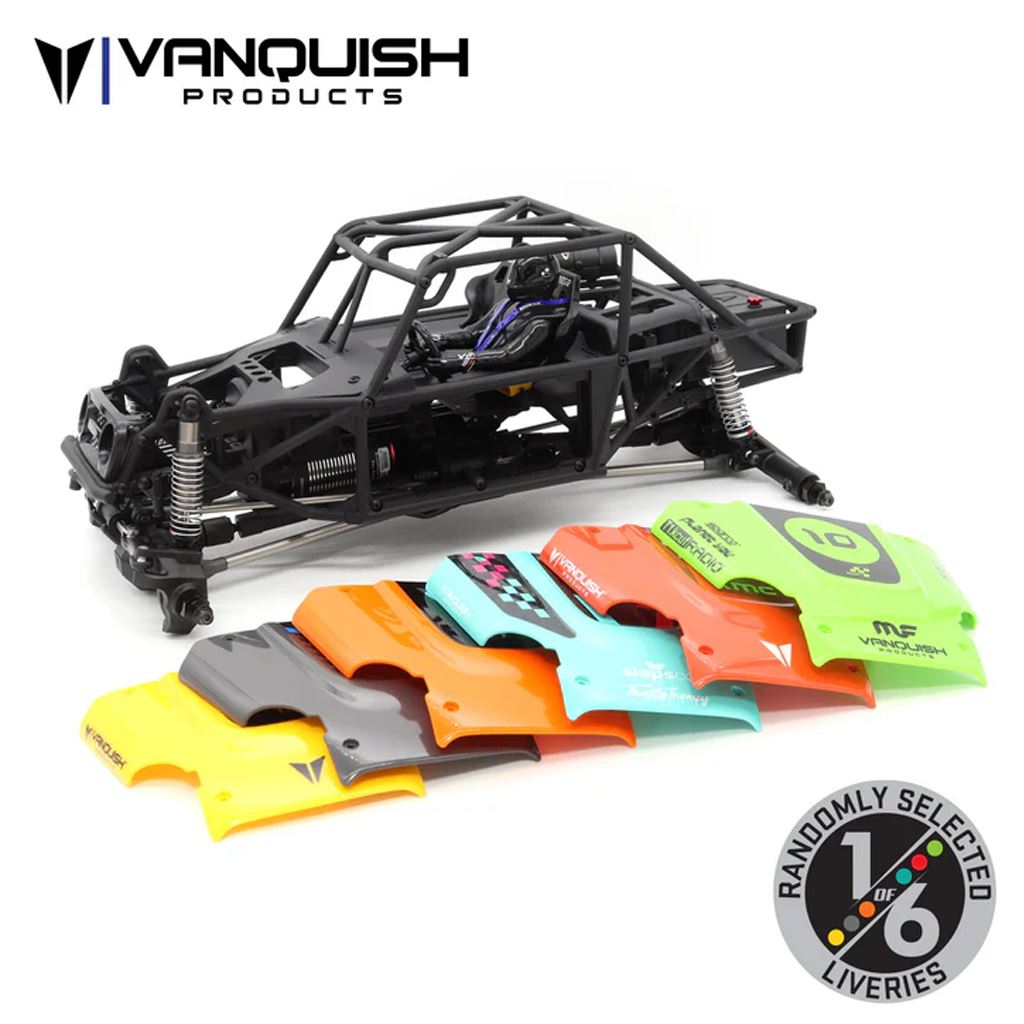

The H10 Optic kit is packaged and shipped with a color and graphic livery that is selected at random. You do not get to select the version you receive. The box has no indication as to what option is included inside. Open your kit to reveal yours! Wheels, tires, and electronics are not included. See disclaimer at bottom.

H10 HYDRO FRONT AXLE
Scale appearance meets performance with the new H10 Hydro Front Axle steering system. Developed to simulate a double ended hydraulic ram steering system used in off-road rigs. Utilizing a standard steering servo hidden behind the axle, the steering system is isolated from the chassis. The H10 Hydro front axle uses a 3pc ram that is protected and moved away from obstacles. The width of the H10 axle is increased by 0.600" compared to the F10 for even greater stability.

H10 HYDRO STEERING HIGHLIGHTS

4-LINK WITH AXLE MOUNTED SERVO
The Hyrdo ram replaces a traditional tie rod and the steering servo is hidden behind the axle. All new H10 steering knuckles allow for the steering drag link to be protected and out of sight. The Hyrdo front axle includes VDI universal axle shafts for 47° of steering angle.

HARD ANODIZED 90MM S8E SHOCKS
Incision S8E shocks feature a large 8mm bore with adjustable preload and a bleeder style cap. The lower cartridge features dual X-Rings and a compact design to maximize travel. The aluminum body is hard anodized for a smoother and longer lasting product.

DETAILED MOLDED TUBE CHASSIS

H10 CHASSIS DETAILS
The styling of the H10 chassis is derived from Trail Buggy’s built to tackle the world's toughest terrain in comfort and style. The 2-seat symmetrical design preserves a narrow overall width for easy navigation around obstacles. Short front and rear overhangs optimize approach and departure, allowing tires to hit obstacles first.

Battery Compartment Size: 93mm x 36mm x 42mm

SECURE BATTERY ACCESS
The access to your battery compartments couldn't be easier with a single pin and latch system holding each side panel on to gain quick access on the trail.

High Pinion Design

Machined Gears in the Axles
The front and rear axles of the H10 Optic Kit get machined hypoid gears and chromoly spools. Made to hold up to whatever power you decide to run in your kit!

H10 OPTIC VFD KIT SPEC

TRANSMISSION

VFD TRANSMISSION
The VFD transmission in the H10 Optic Kit comes spec'd with Machined aluminum Motor Plate, Bearing Plates, Standoffs and spur gear adapter.

LICENSED SPARCO RACING INTERIOR

HIGHLY DETAILED 3D INTERIOR
Molded ABS Interior with scale driver and uses several Licensed Sparco designs

-Air Pro RF-5W Helmet
-Land+ Gloves
-EVO L QRT
-Competition Race Suit
-Racing Harness
-1/10th Scale
-Axle Ratio 3.75:1
-Pinion 13T 32P
-Spur 56T 32P
-Overall Width Hex to Hex - 206mm (8.11”)
-Wheelbase - 337mm (13.26”)
-Overall Height (w/4.75" Tires) - 198mm (7.80”)
-Overall Front Ratio 41.3:1
-Overall Rear Ratio 44.0:1
-Final Overdrive 6%
-Battery Compartment Size: 93mm x 36mm x 42mm

Description

The H10 Optic kit is packaged and shipped with a color and graphic package that is selected at random. You do not get to select the version you receive. The box has no indication as to what option is included inside. Open your kit to reveal yours! Some images show wheels and tires installed for illustration purposes only, the H10 Optic Kit does not include wheels, tires, and electronics. See disclaimer at bottom.

The H10 Optic Trail Buggy was developed from the ground up as a purpose built ultimate trail truck. Styled after buggies that are designed to conquer difficult trails in all conditions. The H10 axles feature an increased width over the F10 axles and incorporate a scale hydraulic ram style steering. The servo position is hidden behind the axle and tucks into the chassis during the suspension cycle, preserving the scale look while providing optimal performance. A 13.25” wheelbase and increased track width offer a new level of stability and capability.

The proven VFD transmission comes equipped with a Machined Motor Plate, Standoffs, and Machined Bearing Plates. The VFD transmission low motor placement provides the H10 chassis a balanced and predictable driving dynamic. The innovations don't stop there, the H10 Front axle has an integrated Hydro style ram steering system that provides a direct and protected link between the front tires and hides the servo low behind the rear axle to enhance the scale appearance. The Front and Rear H10 axles are exclusive to the H10 Trail Buggy platform with a 4-Link front and rear suspension and 8.11” hex width providing more stability.

The Optic body design is made from durable injection molded ABS commonly referred to as a “Hard Body” giving the H10 Optic a truly scale driving experience of a rugged and solid Trail Buggy with rigid body panels. Beneath the Optic body panels is a highly detailed ABS interior tray and 3D driver comfortably seated in Sparco EVO L QRT racing seat and decked out in a full Sparco competition racing suit, RF-5W helmet, and Land+ gloves. The access to your battery compartments couldn't be easier with a single pin and latch system holding each side panel on to gain quick access on the trail.

Required Items

-ESC
-540 Motor
-Servo
-Radio and Receiver
-2-3S LiPo Battery (Compartment Size: 93MM X 36MM X 42MM)
-Battery Charger
-1.9 Wheels with SLW Hubs (Recommended)
-4.75" Tall 1.9 Tires (Recommended)

Disclaimer

The H10 Optic Kit is a special release featuring 6 unique liveries, with a chance to receive an exclusive secret variant that cannot be found elsewhere. The livery you receive is selected completely at random, making each purchase a unique and exciting experience.

Please note: This is an unassembled kit, and wheels, tires, and electronics are not included. Some product photos may show completed builds with wheels, tires, and electronics for demonstration purposes only.

Please note: Due to the randomized nature of the product, specific livery requests cannot be accommodated. We aim to create a fun and unexpected experience for all buyers. All sales are final.

If you encounter any issues with missing or damaged parts, please reach out to our customer service team for assistance.
