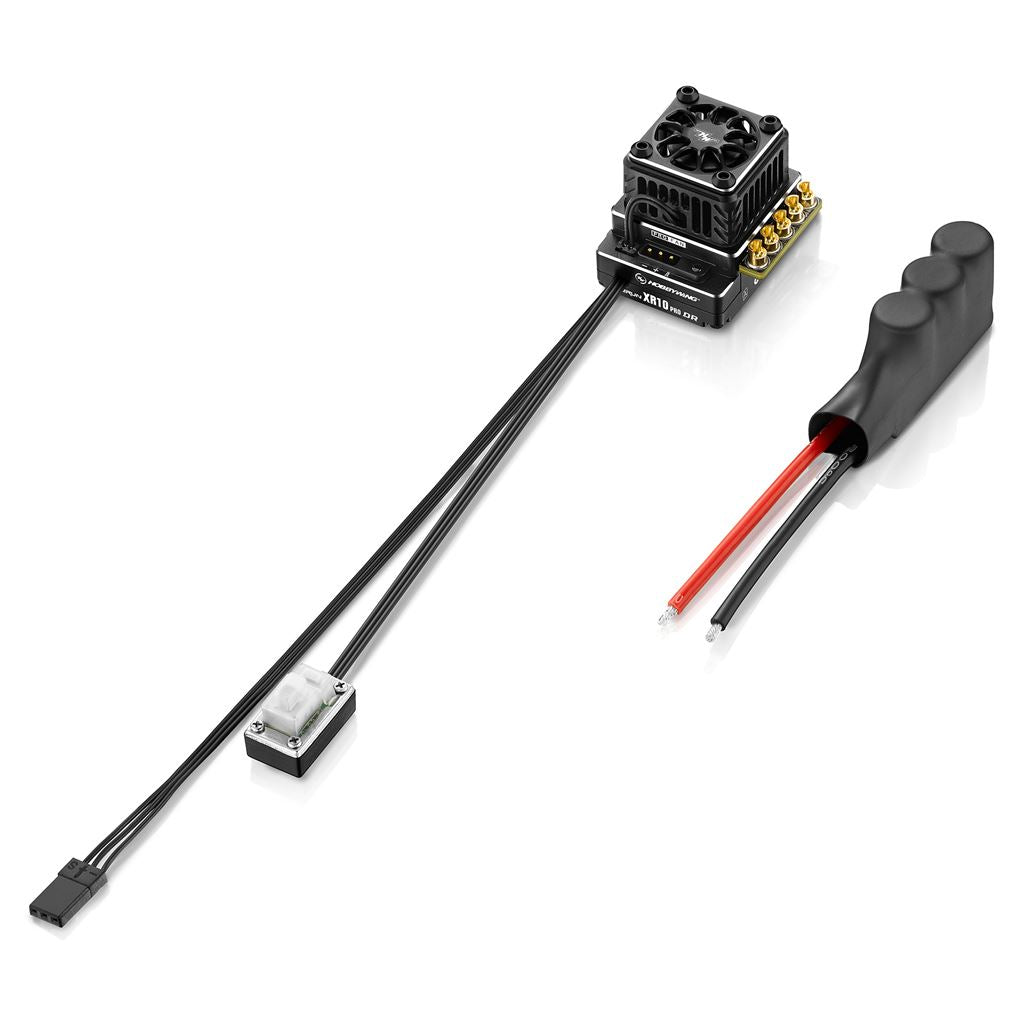

Xerun Xr10 Pro - Dr Drag Racing
Save £15.80
Couldn't load pickup availability
Drag Racing Acceleration Tool
XeRun XR10 PRO DR uses a 32- bit M4 high-performance microprocessor and is optimized based on the software core of the flagship competition product XeRun XR10 PRO G2S to provide better control performance for Drag Racing .
When the throttleacceleration is set to the maximum level 30
Compared with XERUN XR10 PRO G2S,the response time of ESC is shortened by 1 times
Note: The response time is affected by the motor characteristics, so the specific time shall be subject to actual measurement!
9900uF super large capacitor
The ESC comes standard with a 9900uF ultra-large capacitor, which is nearly 9 times the standard capacitor of the XERUN XR10 PRO G2S , ensuring that the ESC voltage remains stable during high-power output.
Capacitance value increased by nearly 9 times

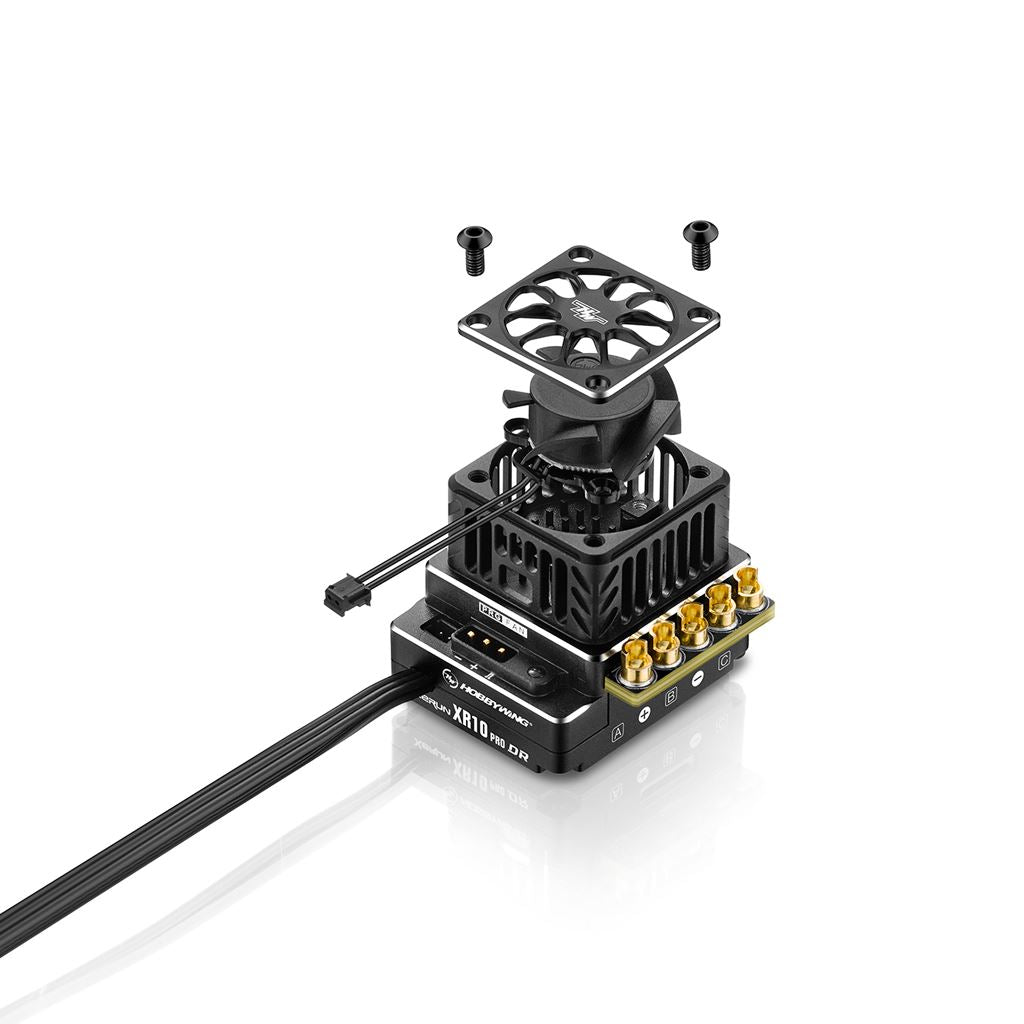

Frameless fan
Efficient heat dissipation The patented frameless fan can deliver high-flow air from the side of the fan . In addition, the internal power board is covered with a copper thermal bus bar,
which can quickly transfer internal heat to the integrated shell heat sink, forming a highly reliable cooling system to ensure that the ESC is always in a good heat dissipation state.
External Bluetooth OTA
After the ESC is connected to the OTA Bluetooth module, a wireless connection can be established between the mobile phone and the ESC, and the mobile phone App can be used to set parameters, read data, upgrade firmware, etc., which is simple and convenient.
Real-time data storage, easy to grasp the power status
Connect the ESC to the OTA Bluetooth module, and use the mobile phone APP to view real-time data such as throttle, voltage, temperature, speed, etc. You can also view historical record data (curve graph) after the operation, and easily obtain the operating status of the ESC and motor .
Note: Due to the Bluetooth transmission distance, the effective distance is about 5m !
Specification
Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No
Cont./Peak Current - 2000A/1200A
Input Voltage - 2S LiPo
BEC Output - 5V-7.4v 5A
Input Wires - Black-10AWG-200MMmm*1 Black-10AWG-200MMmm*1
Output Wires - Black-10AWG-200MMmm*3
Input Connectors - No
Output Connectors - No
Fan
Type - Normal Framed Fan
Size - 25x25x10mm
Output Wires - 5-7.4V
Input Connectors
Powered by BEC
Data Recording
Extreme Value - Supported
Real-Time Data - Supported
Historical Data (Graph) - Supported
ESC Programing via
SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD G2 Program Box - Supported
OTA - Supported
Programming Port - Separate
Firmware Upgrade - Supported
Size - 37.7X37.2X33.2mm
Weight - 137g (Included wires&connectors)
Applications - SD BL Motors
Vehicles - 1/10th Drag Racing
KV Rating/T Count - XERUN 3652/3662 DRX
-
