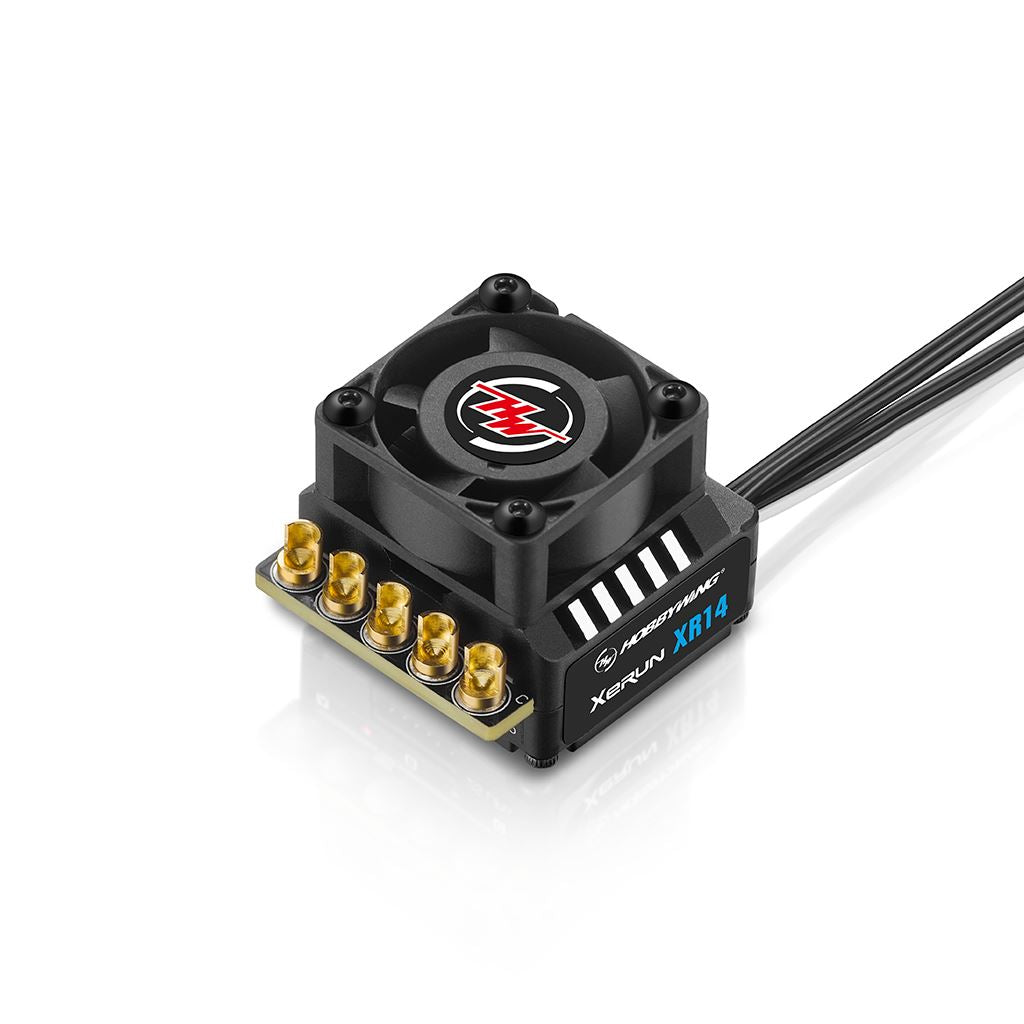

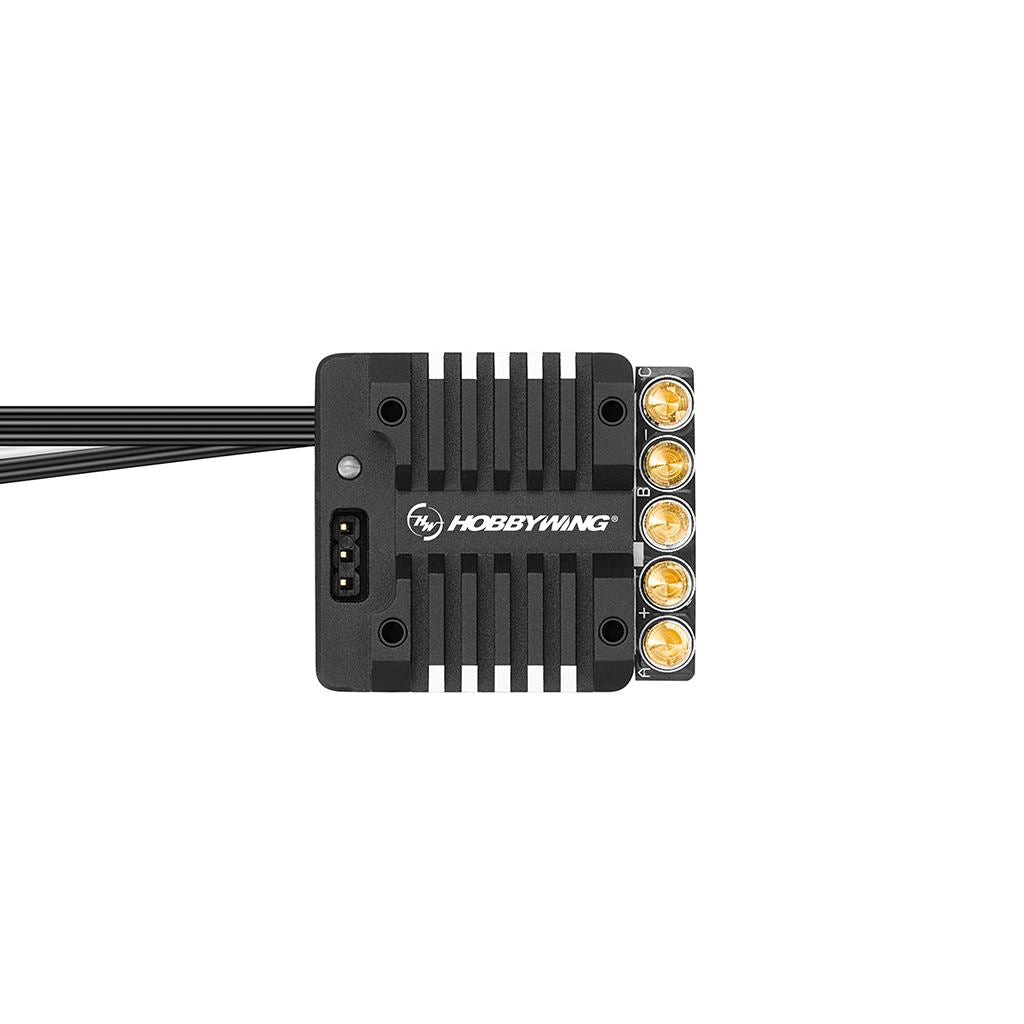

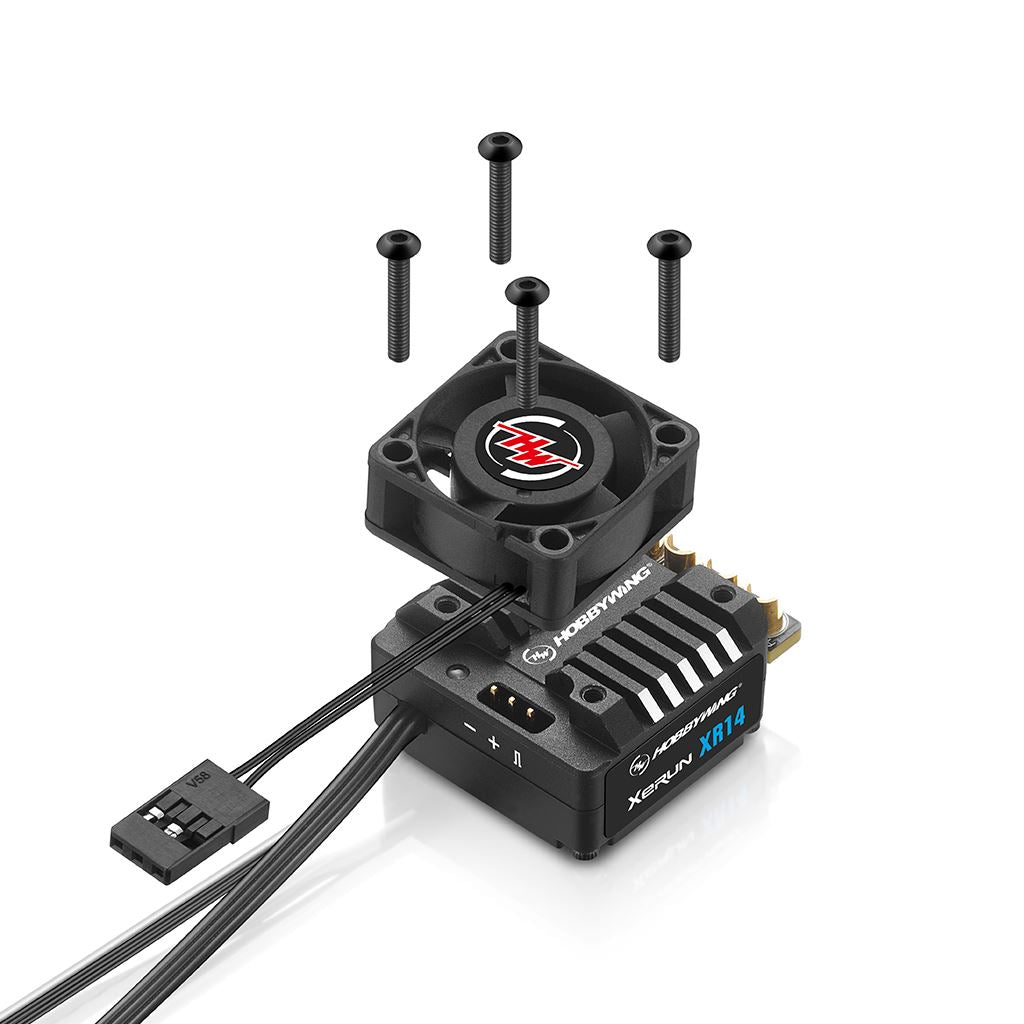

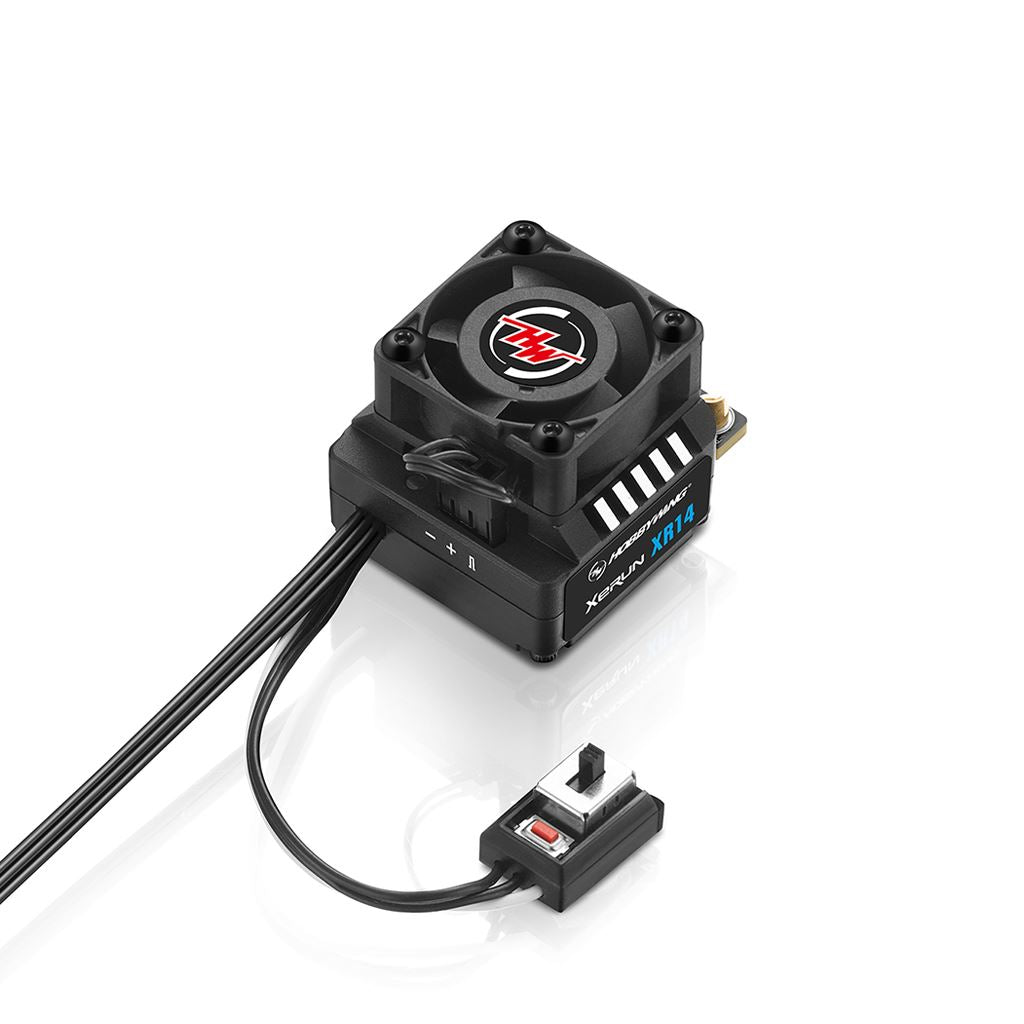

Xerun Xr14 Esc
Save £6.80
Couldn't load pickup availability
Born for the 1/ 14th competition !
A versatile competition-grade design with powerful software, a high-performance competition ESC for 1/14th scale road and off-road vehicles.
High power, low temperature
The maximum continuous output current of the ESC is up to70A. The all-metal heat sink top case ensures the ESC is always at a safe operating temperature.
Built-in reverse polarity protection circuit
The ESC has a built-in reverse connection protection circuit , so you don’t need to worry about the ESC being damaged by reverse battery connection, which effectively solves the problem of ESC damage caused by reverse battery connection.
Note: Only by using the non-polarity filter capacitor option can the entire power system be protected against reverse connection. The standard electrolytic capacitors of the ESC do not have reverse connection protection. Reverse connection of the battery will damage the electrolytic capacitor pack, but the ESC will not be damaged.
Built-in BEC supporting high voltage servos
The ESC has a built-in switch-mode BEC , which can easily meet the input power requirements of high-torque and high-voltage servos.
-Maximum continuous current
-4A Maximum instantaneous current
-8A The output voltage is switchable between 6V and 7.4V
Built-in data logging function to easily obtain power operation status
The ESC has a built-in data recording function. The data includes the minimum voltage, maximum current, maximum speed, maximum ESC temperature , and maximum motor temperature.
After the ESC is connected to the OTA Bluetooth module, connect the ESC through the HW Link mobile app and turn on the real-time data recording function to view the throttle, voltage, current, temperature, speed and other data in real time; the OTA built-in memory can also record the above data, which is convenient for drivers to use HW Link for more detailed data analysis after the race. Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!
Rich parameter items
The ESC has 26 adjustable parameters, including practical PWM frequency, Softening , initial start-up force, Boost/Turbo timing , etc., which can accurately adjust the power requirements and allow players to enjoy a more delicate control experience.
Dual App Mode
Two application modes, 1/ 14th On-Road and 1/14th Off -Road competition, are built in and can be used immediately.
Wide applicability
The power is suitable for 1/ 14th Blinky, Boost and other competition projects, and also meets the 1/ 10th Blinky competition application.
Specifications
Type
Scale - 1/14th、1/12th、 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - No
Specifications
Cont./Peak Current - 70A/300A
Input Voltage - 2S LiPo
BEC Output - Switch Mode 6V/7.4V @4A
Wires & Connectors
Input Wires - Black-10AWG-200mm*1 Black-14AWG-175mm*2
Output Connectors - Black-14AWG-175mm*3
Input Connectors - No
Output Connectors - No
ESC Programing via
SET Button on ESC - Not Supported
LED Program Box - Not Supported
LCD G2 Program Box - Supported
OTA Programmer - Supported
Program Port - Shared with Fan Port
Data Recording
Extreme Value - Supported
Real-time Date - Supported
Historical Date (Graph) - Supported
Firmware
Firmware Upgrade - Supported
Size & Weight
Size - 35.2*31.3*28.5mm
Weight - 66g (Included wires)
Applications
Motors -Sensorless / Sensored Brushless Motor
Vehicles - 1/14 Scale Racing, 1/12&1/10 Light load vehicles with zero-timing(blinky) mode
KV Rating/T Count - XERUN 2848
-
Brand
-
Part Number
-
EAN
